ZCS AZZURRO CONNEXT - Configuration 4: Single-Phase Photovoltaic Inverter

Solo documento principale.
30/67
Identification: MD-AL-GI-00
Rev. 1.2 07.06.21 - Application: GID
Connext User Manual
Rev. 2.2 10/01/2023
Figure 25 - RS485 connections with three-phase hybrid inverter
5.4. Configuration 4 – System with Azzurro single-phase
photovoltaic inverter
A SENSOR MUST BE MOUNTED ON THE CONNEXT SYSTEM FOR MEASURING THE EXCHANGE

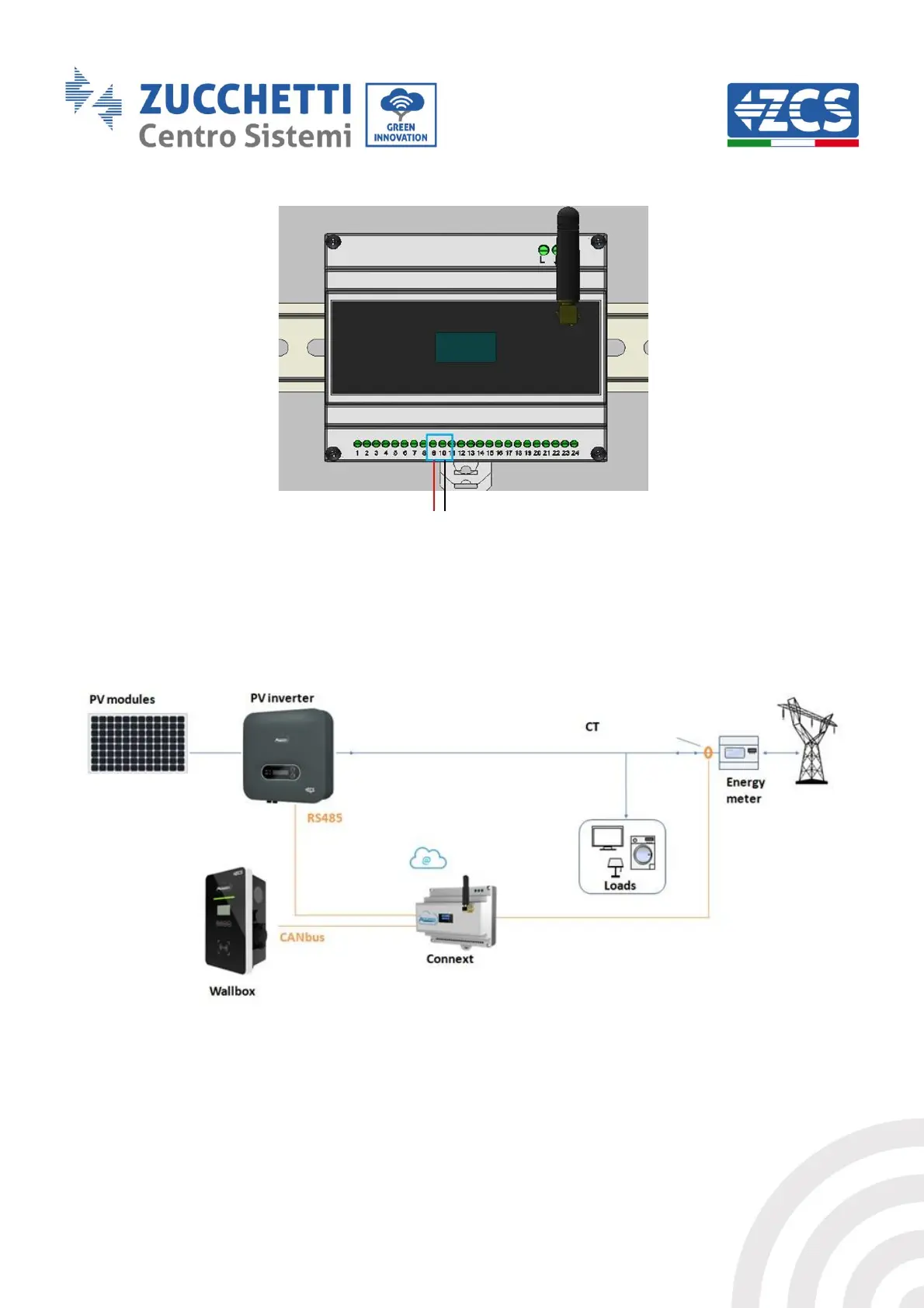

Figure 26 - Configuration 4 with single-phase string inverter
Follow the instructions to connect the RS485 port to Azzurro single-phase photovoltaic inverters.
