29/67
Identification: MD-AL-GI-00
Rev. 1.2 07.06.21 - Application: GID
Connext User Manual
Rev. 2.2 10/01/2023

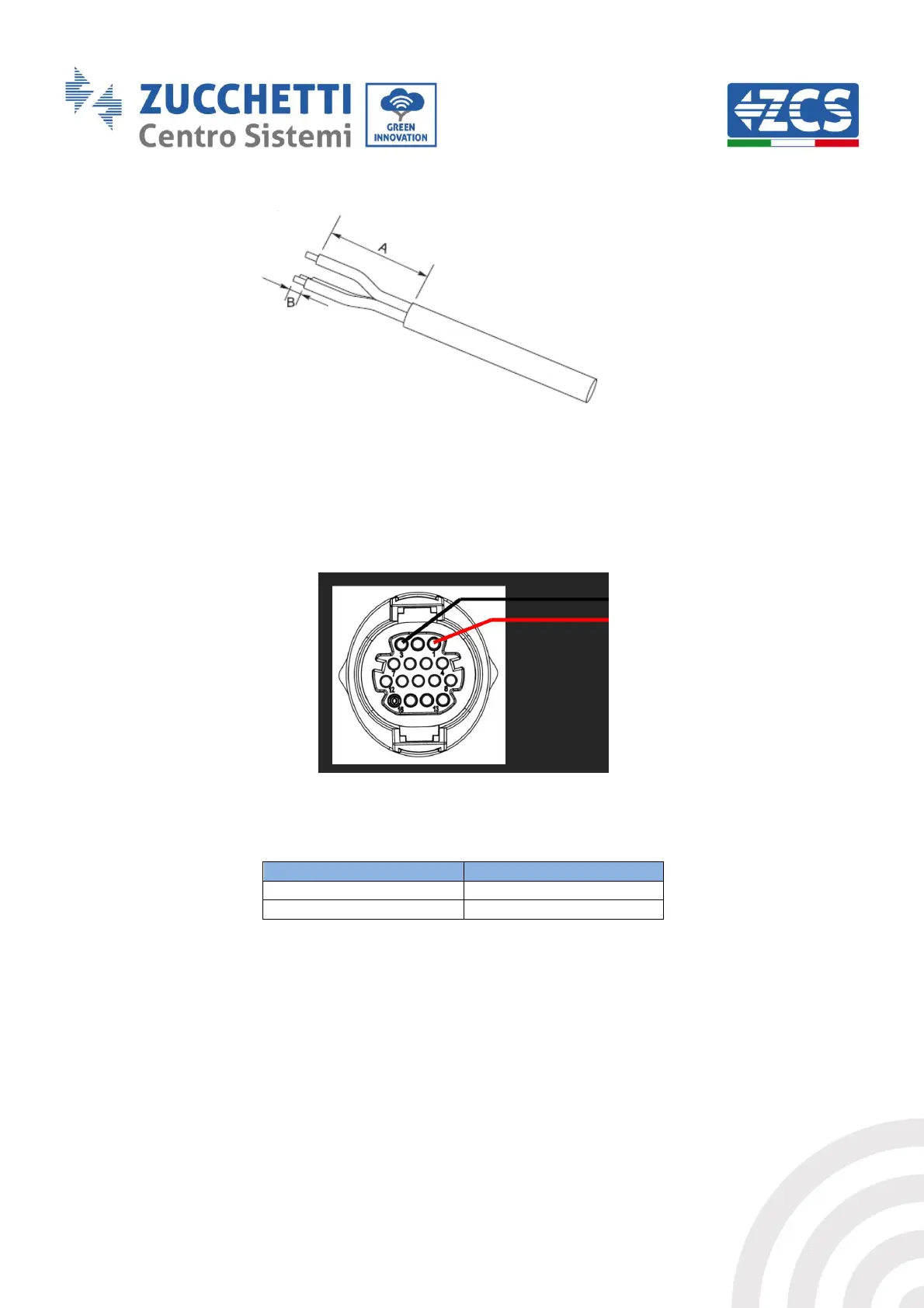

Figure 23 - Preparing RS485 cables
2) Connect the 2-pole cable to the port of the hybrid inverter marked “COM”. Follow the polarity
shown in the figure and the pin-out in the table.
Figure 24 - Connecting on COM Port for three-phase hybrid inverter
COM port pin
24-pin terminal block
1 (Red)
9
3 (Black)
10
Table 11 - RS485 connections to three-phase hybrid inverter
