6.3. Configuration 8 – Single-phase system without photovoltaic
production

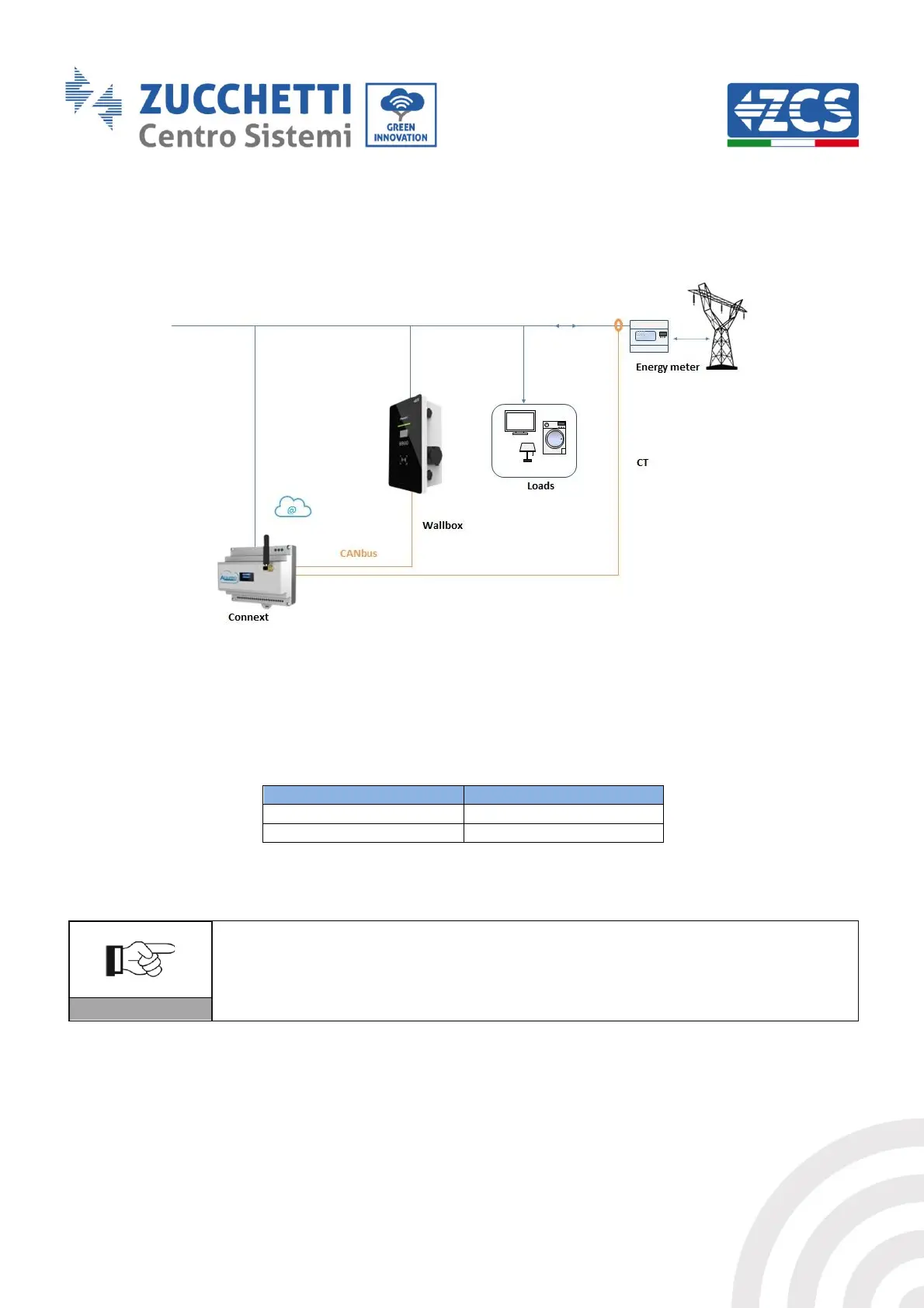

Figure 42 - Configuration 8 of single-phase system without production
If there is no Azzurro string or hybrid inverter, the Connext can still be used to manage the wallbox.
It is only necessary to measure the exchange with a sensor. The sensor must be positioned directly
at the exchange meter and measure all the utilities.
Sensor cable
24-pin terminal block
Black cable
23
Red cable
24
Table 17 - exchange sensor connections
The direction of the arrow on the current sensor represents the
installation direction. Pay attention to the insertion direction
Note
