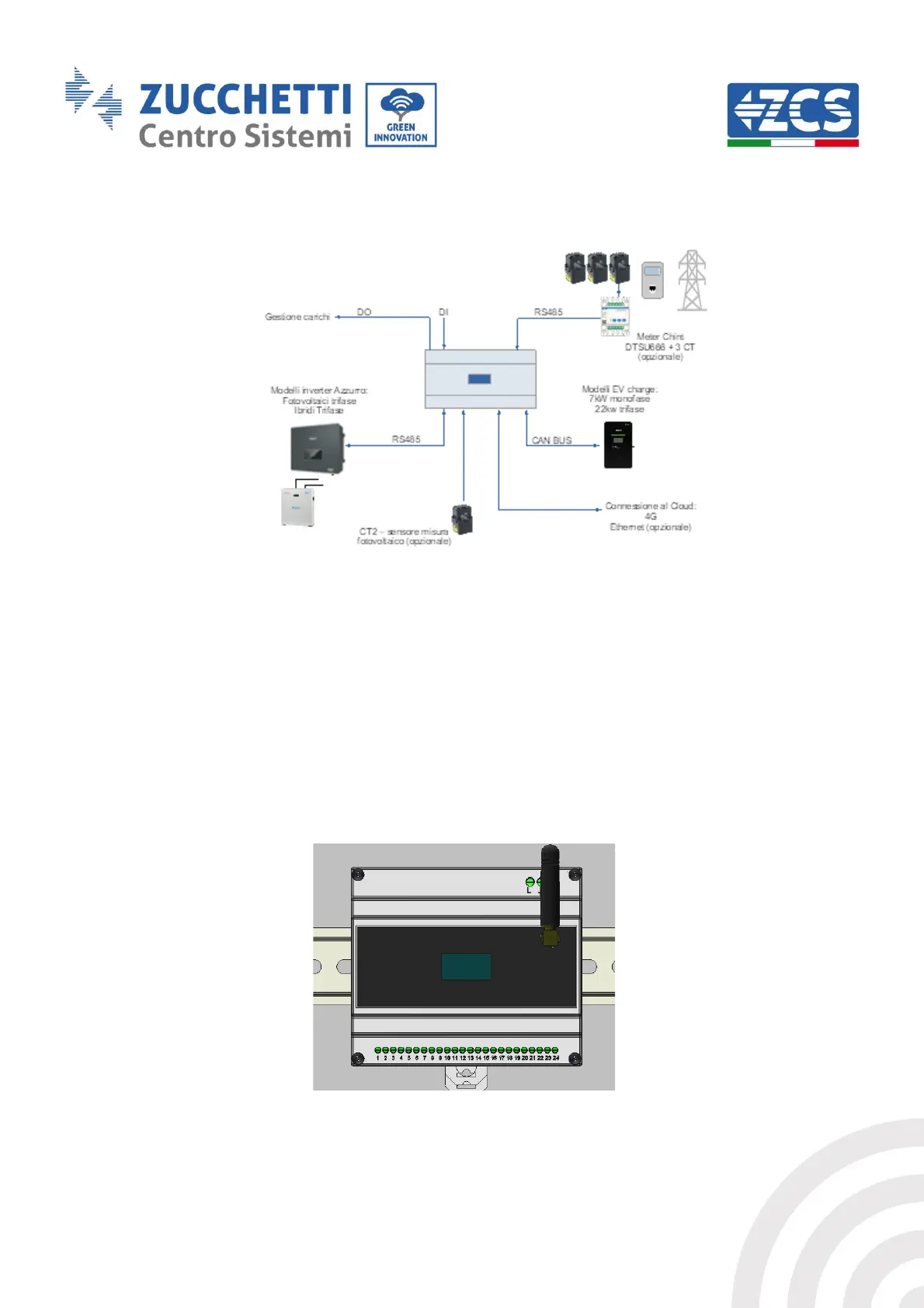

Figure 4 – Example of Connext system connection in a three-phase system
Overall dimensions: H × W × D = 105 mm x 85 mm (with antenna installed) x 89 mm.
2.2. Product overview
Connext can be installed on DIN bar (8 modules) and powered by a 230V AC mains power supply. It
can be connected to Azzurro accessories, charging stations and inverters, as well as the necessary
power supplies.
Figure 5 – Front view
