5. Systems with ZCS Azzurro inverter
Up to 8 Azzurro photovoltaic or storage inverters can be connected in cascade. Connect the Connext
system to the first inverter according to the instructions given here. To connect to hybrid, storage or
photovoltaic inverters, follow the instructions in the sections below.
NOTE: IF THE SYSTEM HAS ONE OF THESE INVERTERS: 1PH HYD3000-HYD6000-ZSS, 3PH
HYD5000-HYD20000-ZSS, 3000SP, REFER TO THE RESPECTIVE MANUALS FOR CONNECTING THE
SENSORS (ZSM-ACC-TA) AND/OR THE METER (DTSU666).
5.1. Configuration 1 – System with Azzurro single-phase hybrid
inverter

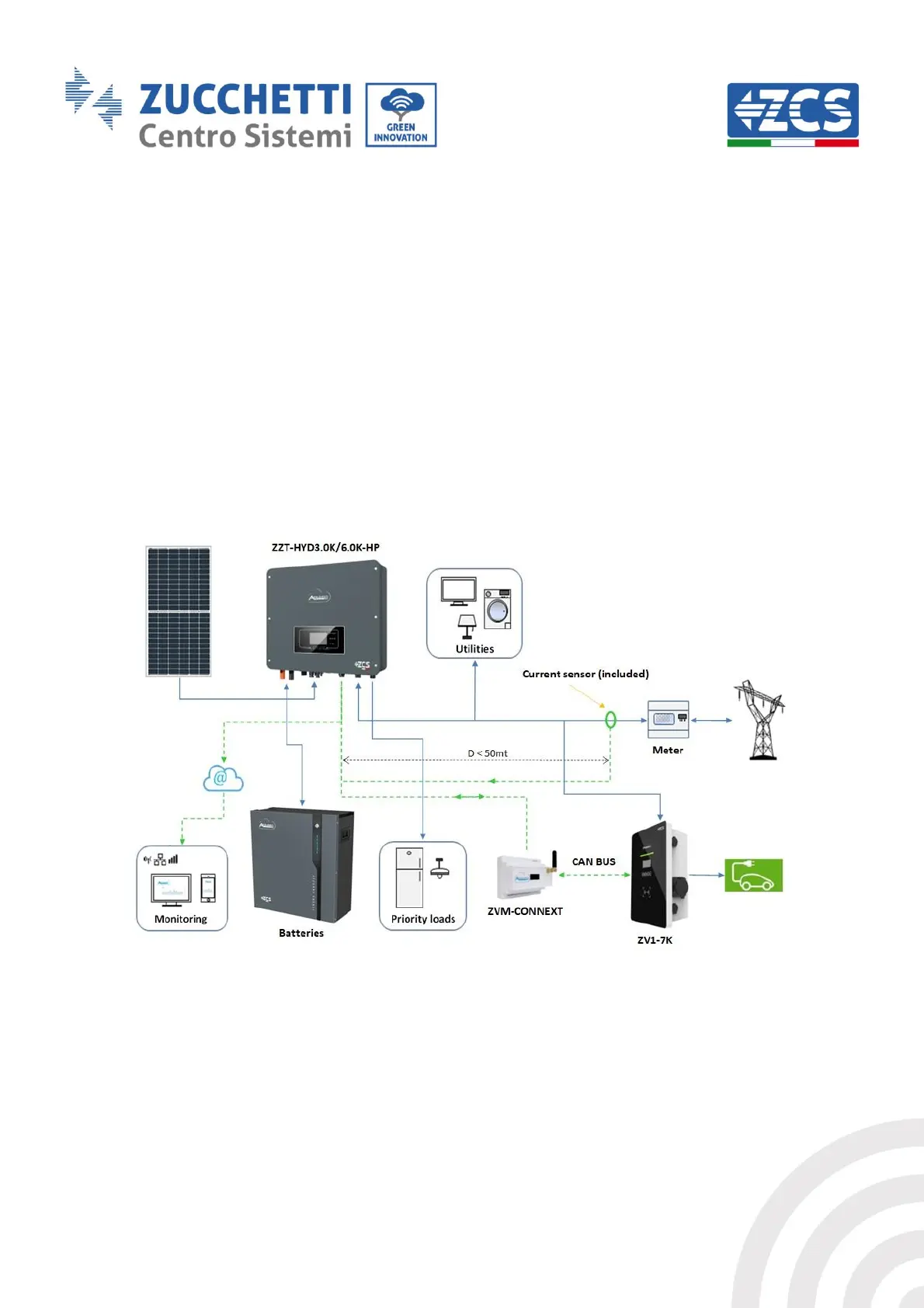

Figure 13 - Configuration 1 with single-phase hybrid inverter
THE SENSOR OR METER FOR MEASURING THE EXCHANGE MUST BE CONNECTED TO THE
INVERTER ACCORDING TO THE MANUAL
