5.2. Configuration 2 – System with Azzurro 3000SP inverter
THE SENSOR (OR SENSORS) FOR MEASURING THE EXCHANGE MUST BE CONNECTED TO THE
INVERTER ACCORDING TO THE MANUAL

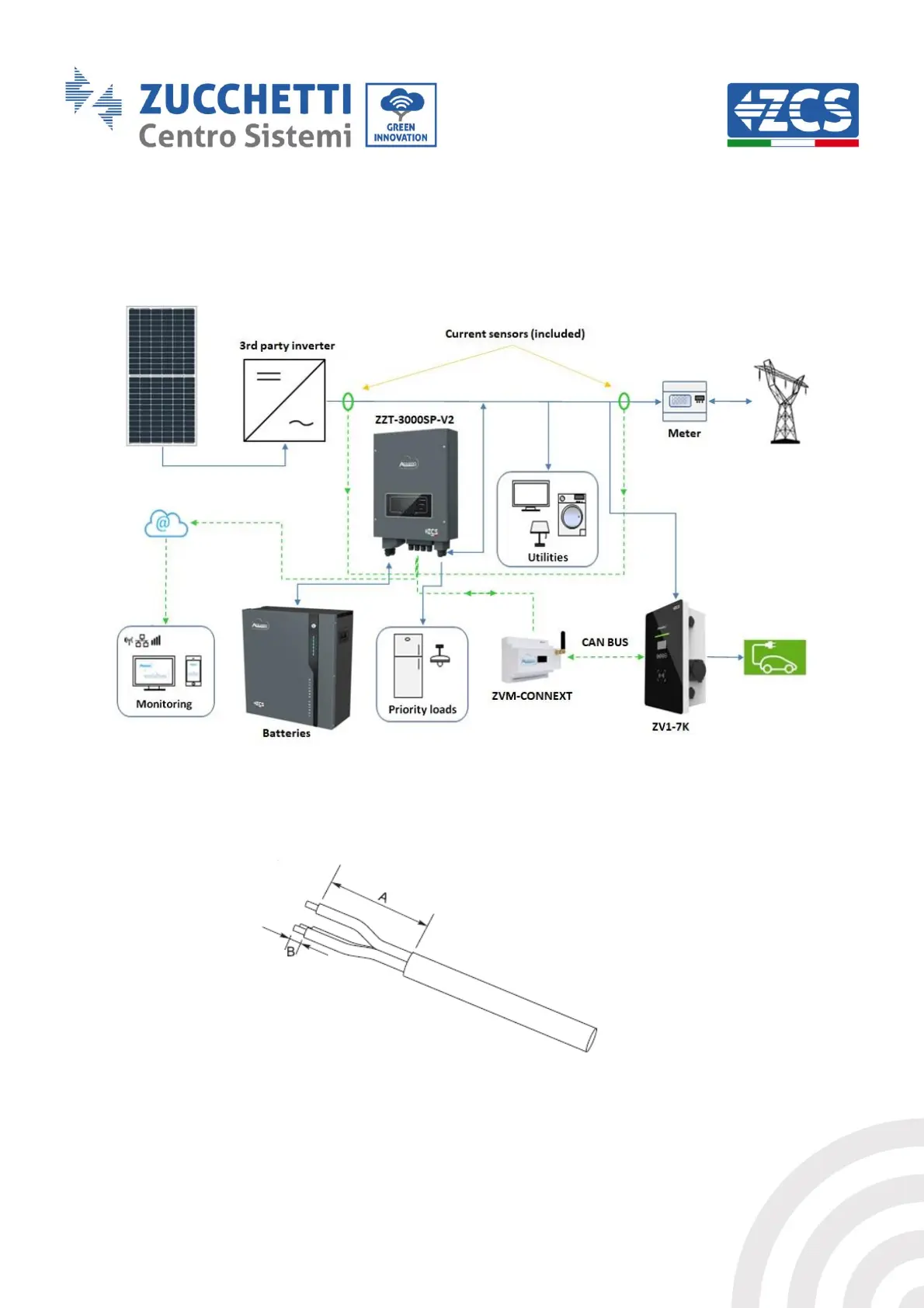

Figure 18 - Configuration 2 with 3000SP retrofit inverter
Follow the instructions to connect the RS485 port to 3000SP inverters.
1) Remove a suitable length of the protective sleeve, as shown in the figure (A: 80~100 mm B:
6~8 mm).
Figure 19 – Preparing RS485 cables
