27/67
Identification: MD-AL-GI-00
Rev. 1.2 07.06.21 - Application: GID
Connext User Manual
Rev. 2.2 10/01/2023
2) Connect the 2-pole cable to the port of the 3000SP inverter marked “RS485”. Follow the
polarity shown in the figure and the pin-out in the table.

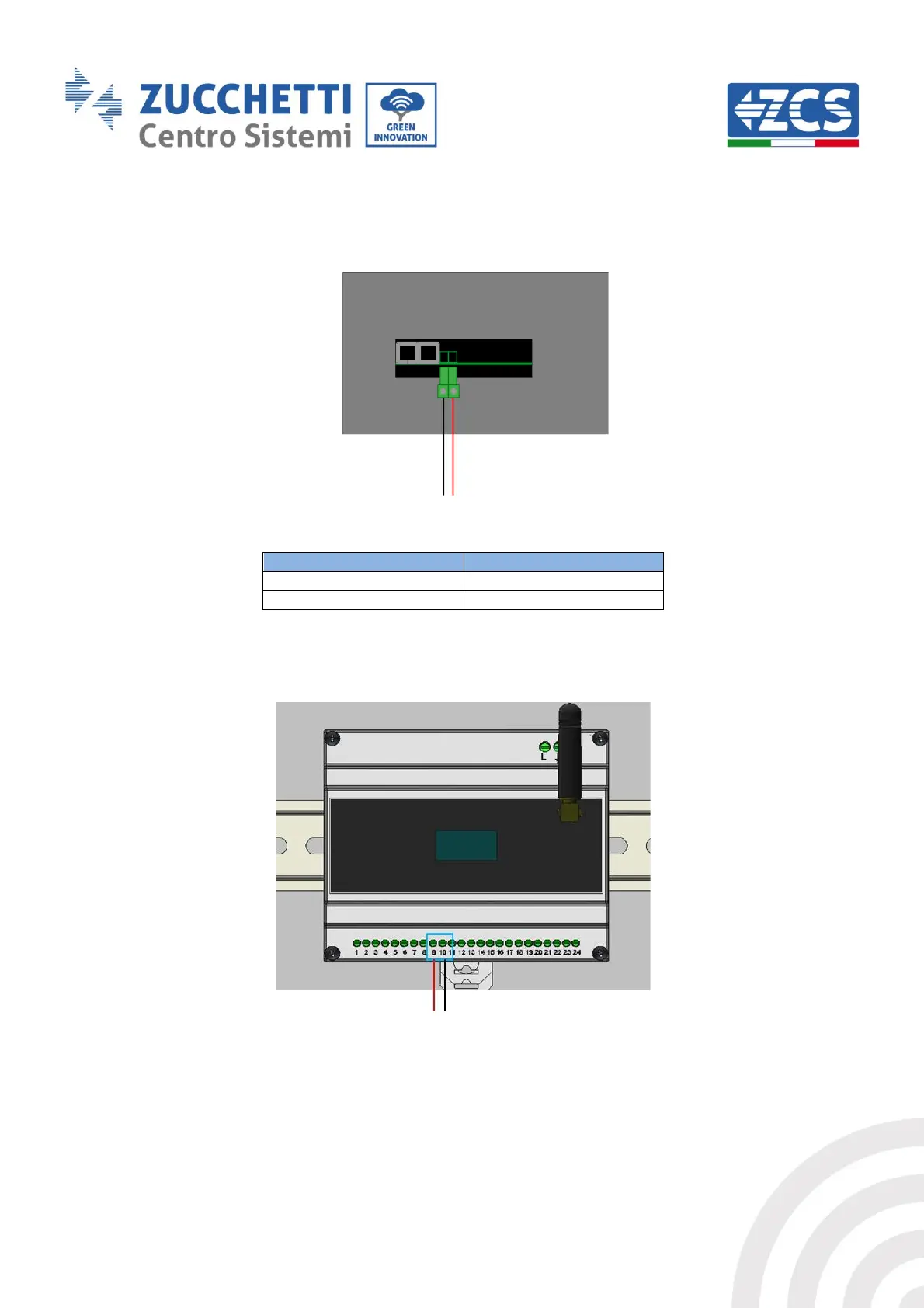

Figure 20 - Connections on 3000SP inverter
RS485 Pin
24-pin terminal block
RS485 + (Red)
9
RS485 – (Black)
10
Table 10 - RS485 connections to 3000SP inverter
Figure 21 - RS485 connections to 3000SP inverter
CAN/485m/485s
