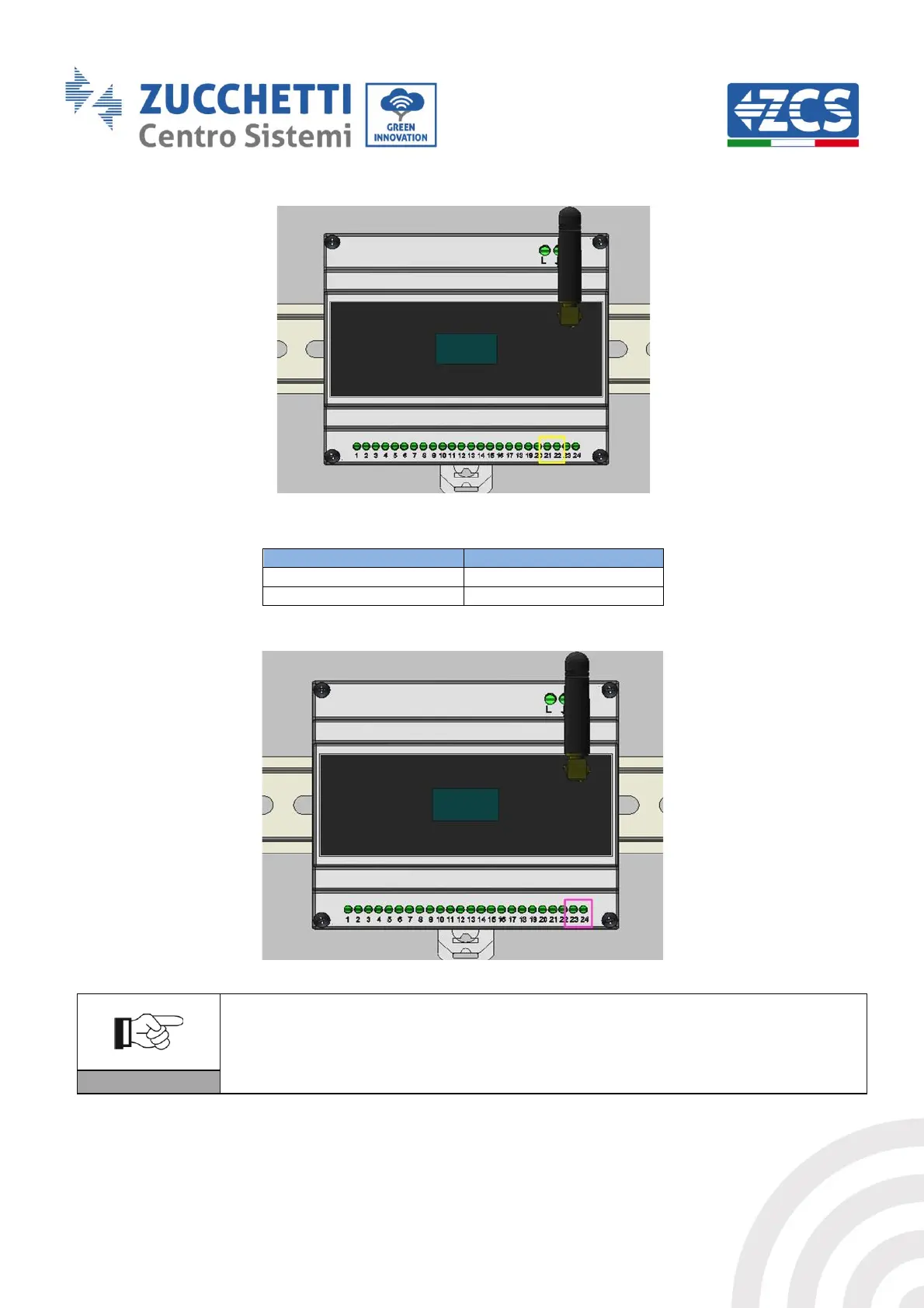

Figure 36 - NON-Azzurro production sensor connection on Connext
Sensor cable
24-pin terminal block
Black cable
23
Red cable
24
Table 14 - Exchange sensor connections
Figure 37 - Connection of exchange sensor on Connext
The direction of the arrow on the current sensor represents the
installation direction. Pay attention to the insertion direction
Note
