Identification: MD-AL-GI-00
Rev. 1.2 07.06.21 - Application: GID
Connext User Manual
Rev. 2.2 10/01/2023
If there is no storage system inverter belonging to the Azzurro brand and the photovoltaic
production needs to be measured, an accessory meter (ZSM-METER-DTSU) must be installed.
The Meter must be placed directly on the output of the exchange meter and connected to the Connext
system via the RS485 port following the pin-out shown.

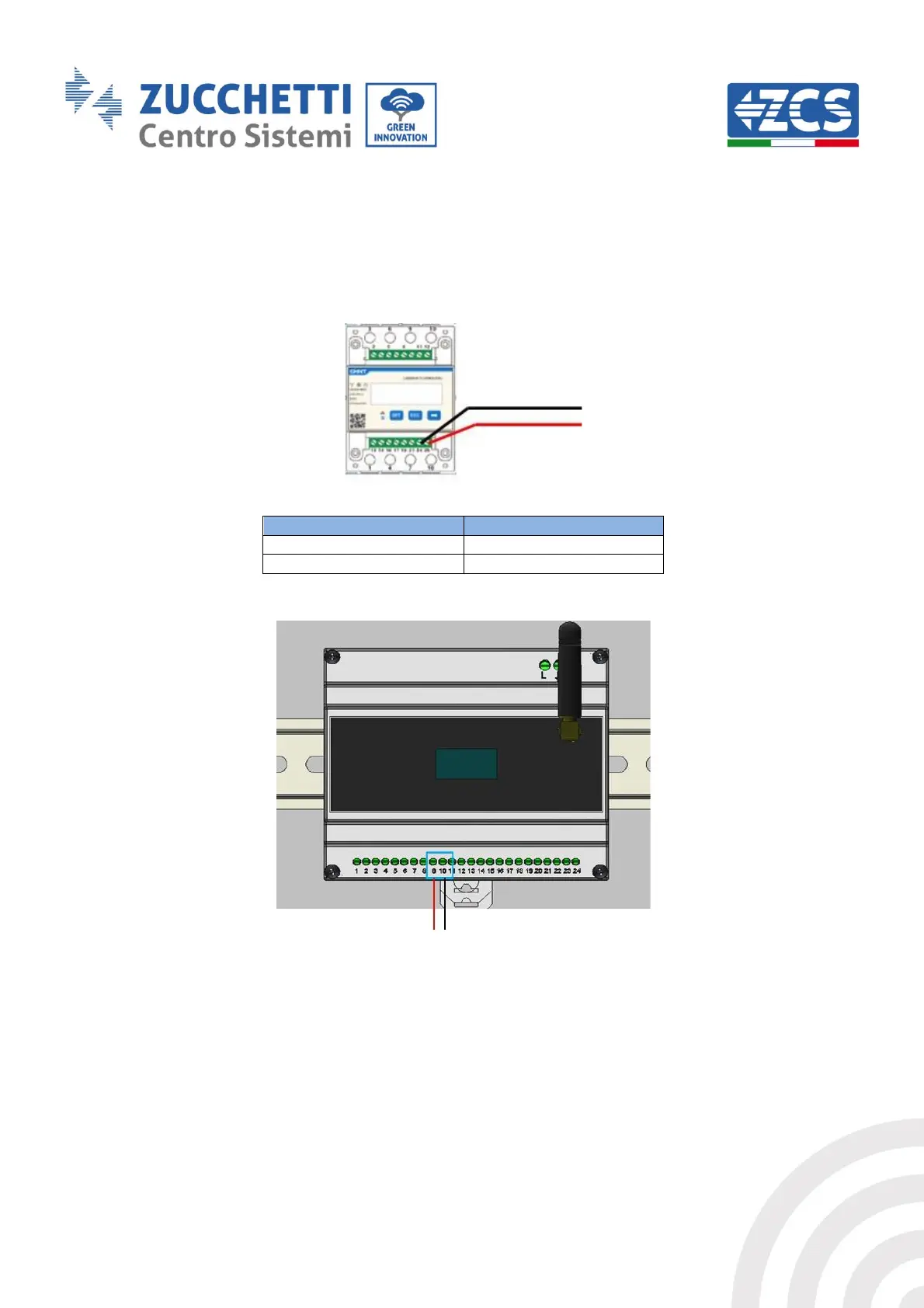

Figure 45 - RS485 connection on meter side
Table 18 - RS485 connections to three-phase meter
Figure 46 - RS485 connections with exchange meter
Follow the meter’s manual to set the communication address to 32.
The meter settings can be checked in Appendix B – Meter settings.
