Zebra GK888t User Manual

17
Loading Transfer Ribbon
12/23/2010 GK888t™ User Guide P1030829-001

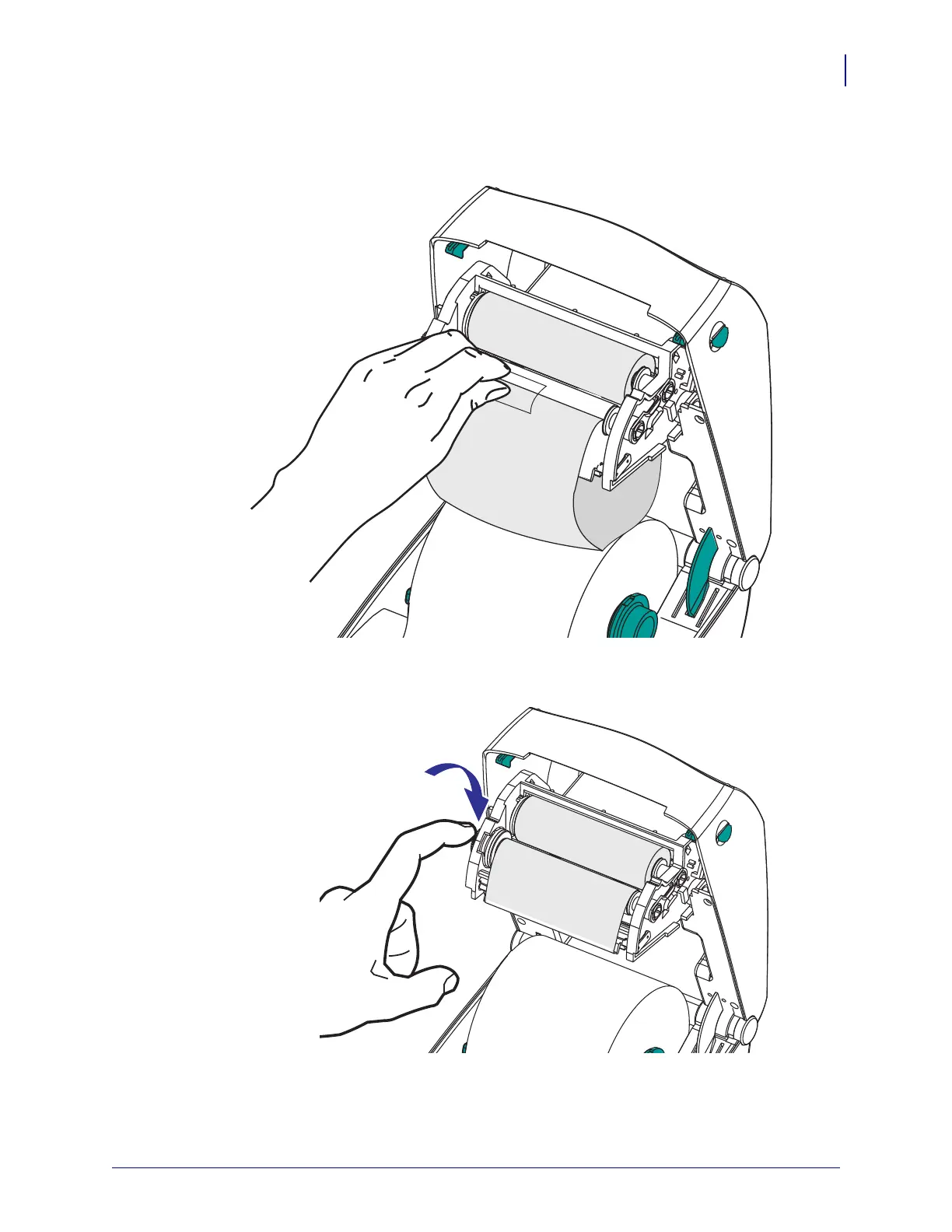

3. Attach the ribbon to the take up core. Use the adhesive strip on new rolls; otherwise, use
tape. You must align the ribbon when you are attaching it to the core, so that it will be
taken straight onto the core and align with the supply.
4. Turn the ribbon take-up gear counter-clockwise (top moves toward rear) to remove slack
from the ribbon.
5. Verify that the media is loaded and ready to print and then close the printer cover.
Remember that you need to release the cover lock, lower the top cover, and press down
until the latches snap into place.

Zebra GK888t Specifications

General

Print Method	Thermal Transfer and Direct Thermal
Resolution	203 dpi (8 dots/mm)
Maximum Print Width	4.09 inches (104 mm)
Memory	8 MB Flash
Connectivity	USB, Serial, Parallel
Media Sensors	Reflective and transmissive
Media Handling	Roll-to-roll, fanfold, tag stock
Media Types	tag stock
Ribbon Ratio	1:1
Programming Languages	EPL2, ZPL
Power Requirements	2.5A
Storage Temperature	-40° F to 140° F/-40° C to 60° C
Humidity	20 to 85% non-condensing
