2 - 28 TC56 Touch Computer Integrator Guide for Android Version 6.0.1

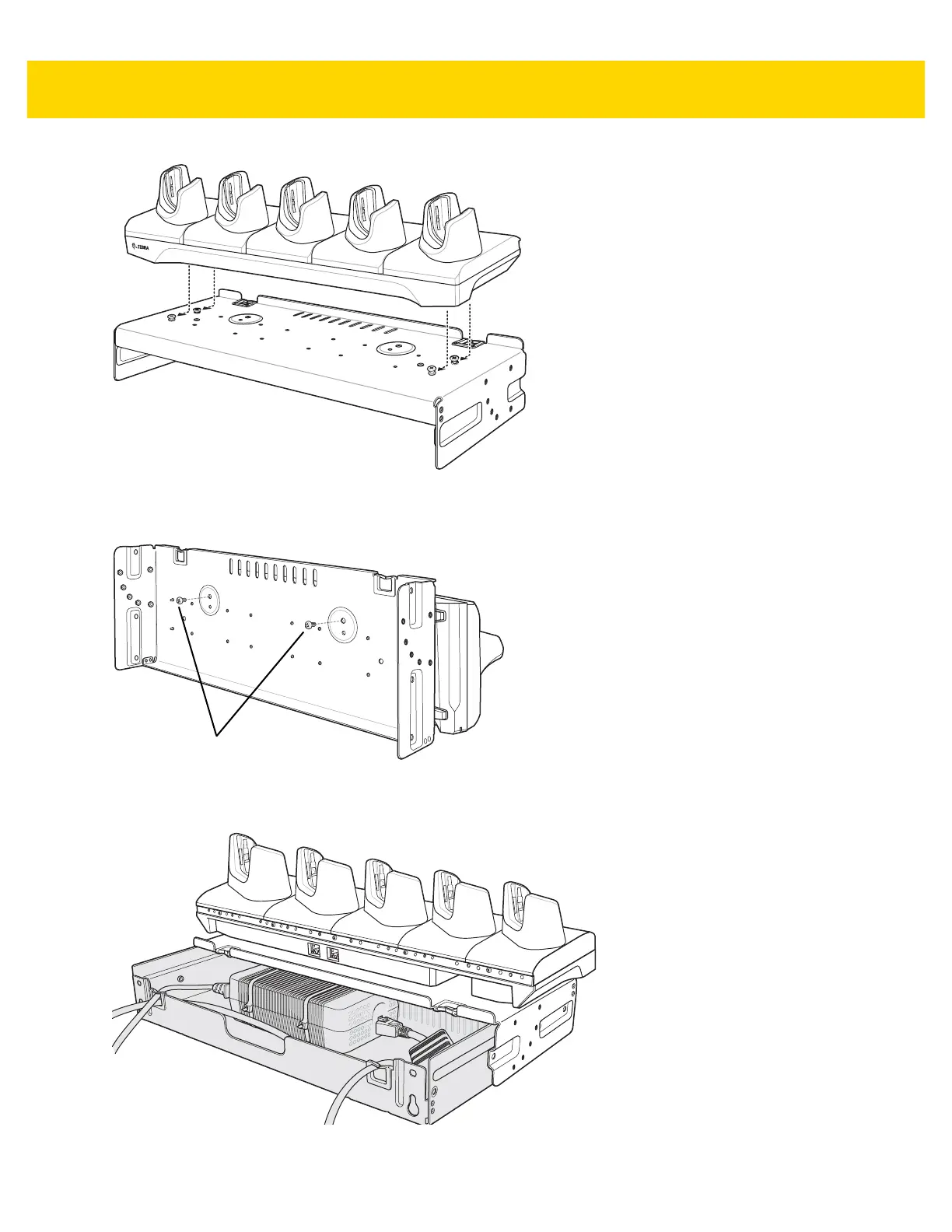

Figure 2-29 Align Cradle on Studs
8. Secure cradle to top tray with two M2.5 safety screws.
Figure 2-30 Secure Cradle
9. Slide top tray onto bottom tray.
Figure 2-31 Slide Top Tray onto Bottom Tray
