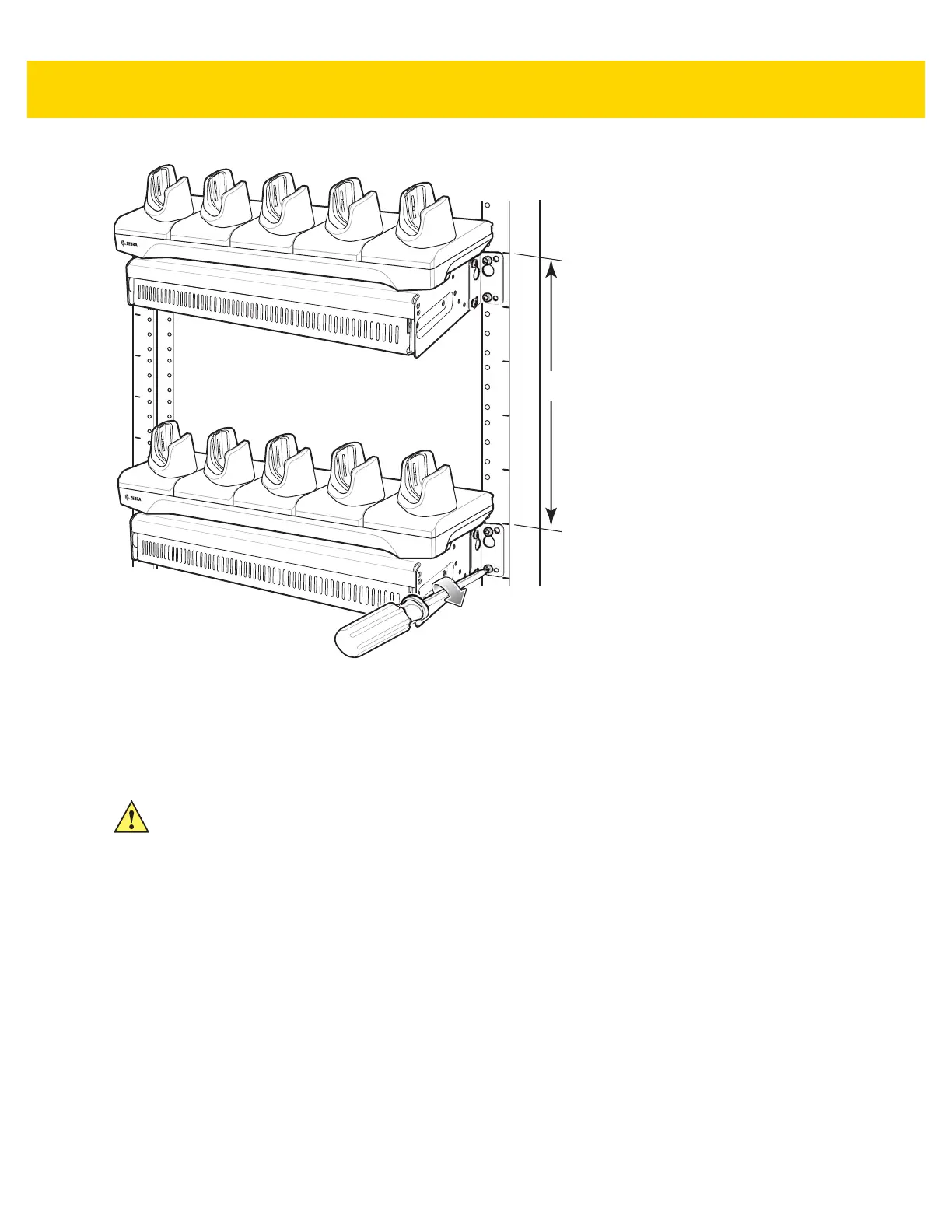

Figure 2-43 Secure Bracket to Rack (Horizontal Position Shown)
4. Secure the top screws.
5. Install bottom screws and tighten screws.
6. Route cables and connect to power source.
While installing the brackets, power supplies and cables:
• Use tie wraps to secure cables to the bracket and rails.
• Coil cables wherever possible.
• Route power cables along the rails.
• Route inter-cradle cables to the side rails and then from the rails to the bracket.
CAUTION Installer should ensure that all building codes are followed when connecting the power supplies to an
AC power source.
