Zenith A27A11D - Ga1 19;20 V Mono Table Top Set Exploded View

CM150 5-1 GA - EXPLODED VIEWS

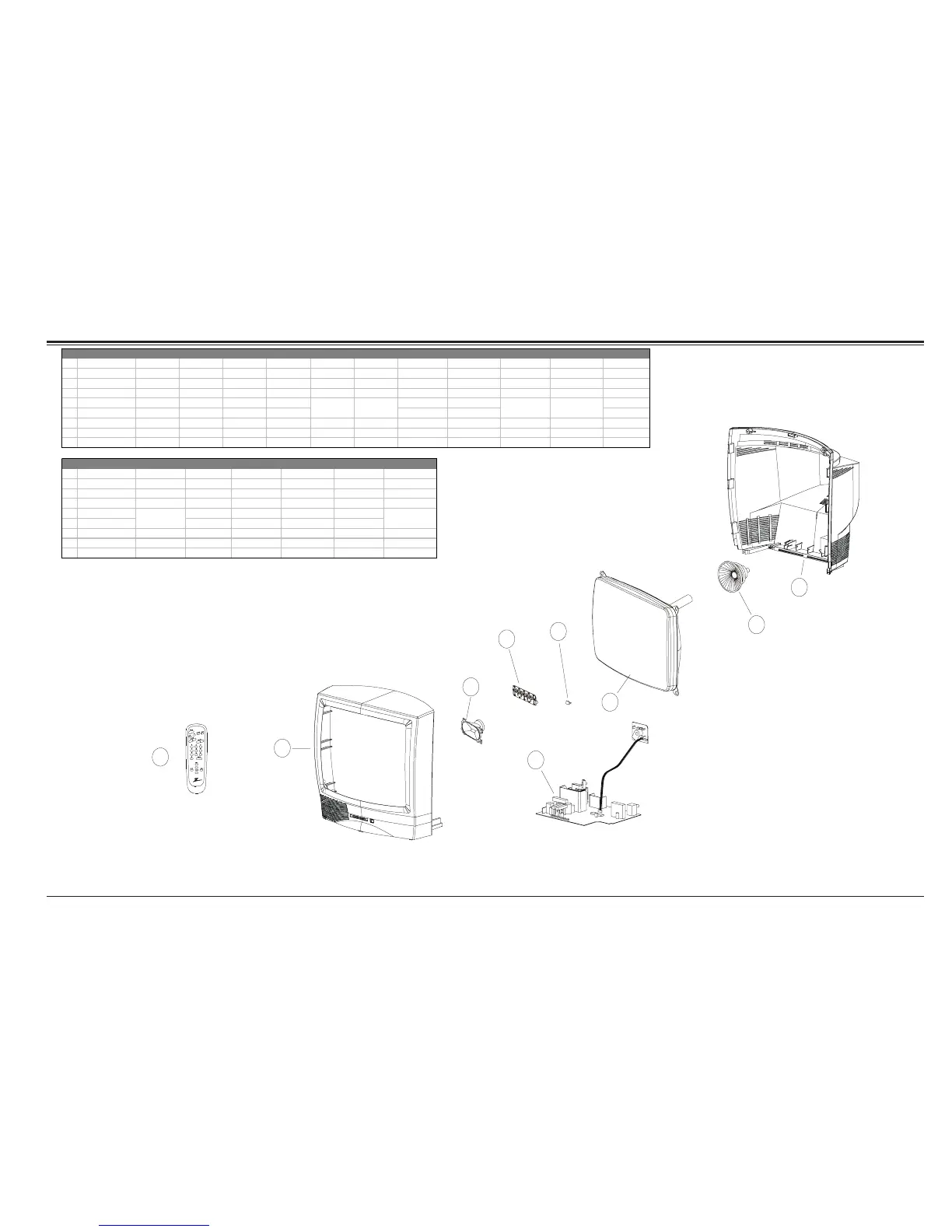

GA1 19/20V MONO TABLE TOP SET EXPLODED VIEW
REF DESCRIPTION A19A02D A19A02D4 A19A02D7 A19A02D74 A19A02D8 A19A02D84 LGA20A02DM7 LGA20A02DM74 LGA20A02DM8 LGA20A02DM84 LGA20A02GM
1 FRONT CABINET 014-12290-14 014-12290-16 014-12290-14 014-12290-16 014-12290-14 014-12290-16 014-12290-14 014-12290-16 014-12290-14 014-12290-16 014-12290-13
2 SPEAKER 049-01369 049-01369 049-01369 049-01369 049-01369 049-01369 049-01369 049-01369 049-01369 049-01369 049-01369
3 KNOB ARRAY 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578
4 IR LENS 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916
5 CRT ASSEMBLY A48ACB32X A48ACB32X A48KRD89X A48KRD89X A48KRD89X A48KRD89X A48ACB32X
6 DEFLECTION YOKE 095-03705-12 095-03705-12 095-04557 095-04557 095-04557 095-04557 095-03705-12
7 REAR CABINET 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12294
8 MAIN MODULE 009-01869-01 009-01869-01 009-01990-01 009-01990-01 009-01990-01 009-01990-01 009-01991-04 009-01991-04 009-01991-04 009-01991-04 009-01991-04
9 REMOTE CONTROL 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16
A-18671 A-18671 A-18671 A-18671
REF DESCRIPTION LGA20A02GM8 LGA20A04DM LGA20A04DM7 LGA20A04DM74 LGA20A04DM8 LGA20A04DM84
1 FRONT CABINET 014-12290-13 014-12290-14 014-12290-14 014-12290-16 014-12290-14 014-12290-16
2 SPEAKER 049-01369 049-01369 049-01369 049-01369 049-01369 049-01369
3 KNOB ARRAY 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578
4 IR LENS 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916
5 CRT ASSEMBLY A48ACB32X A48KRD89X A48KRD89X A48KRD89X
6 DEFLECTION YOKE 095-03705-12 095-04557 095-04557 095-04557
7 REAR CABINET 014-12294 014-12291-05 014-12291-05 014-12291-05 014-12291-05 014-12291-05
8 MAIN MODULE 009-01991-04 009-01950-01 009-01993-01 009-01993-01 009-01993-01 009-01993-01
9 REMOTE CONTROL 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16
A-18671A-18671
2
3
4
5
6
1
8
7
C
C
SC3492A
124-00213-16
9
SECTION 5
