Zenith A27A11D - Ga3 25;26 V Table Top Set Exploded View

CM150 5-7 GA - EXPLODED VIEWS

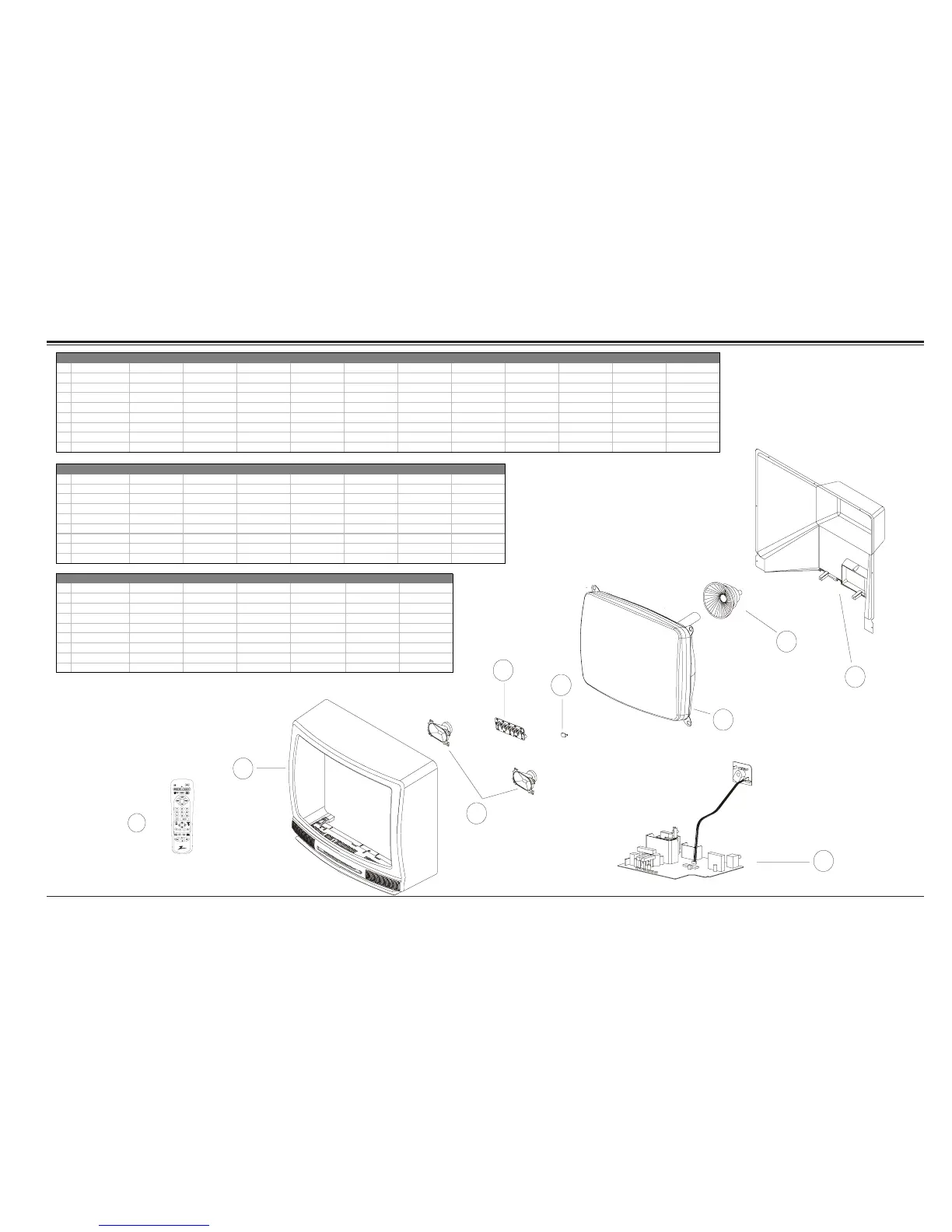

GA3 25/26V TABLE TOP SET EXPLODED VIEW
REF DESCRIPTION A25A22BT A25A22BT4 A25A22BT64 A25A22BT7 A25A22BT74 A25A22BT8 A25A22BT84 A25A23W A25A23W4 A25A23W6 A25A23W64
1 FRONT CABINET 014-12229-16 014-12229-16 014-12229-16 014-12229-16 014-12229-16 014-12229-16 014-12229-16 014-12187-13 014-12187-13 014-12187-13 014-12187-13
2 SPEAKER 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2)
3 KNOB ARRAY 046-10561 046-10561 046-10561 046-10561 046-10561 046-10561 046-10561 046-10554 046-10554 046-10554 046-10554
4 IR LENS 192-00887 192-00887 192-00887 192-00887 192-00887 192-00887 192-00887 192-00858-01 192-00858-01 192-00858-01 192-00858-01
5 CRT ASSEMBLY A63AGD01X A63AGD01X A63AHC26X A63AFW36X A63AFW36X A63AFW36X A63AFW36X A63AGD01X A63AGD01X A63AHC26X A63AHC26X
6 DEFLECTION YOKE 095-04456-03 095-04456-03 095-04456-03 095-04456-05 095-04456-05 095-04531 095-04531 095-04456-03 095-04456-03 095-04571 095-04571
7 REAR CABINET 014-12230-03 014-12230-03 014-12230-03 014-12230-03 014-12230-03 014-12230-03 014-12230-03 014-12181-09 014-12181-09 014-12181-09 014-12181-09
8 MAIN MODULE 009-01996 009-01996 009-01996 009-02041 009-02041 009-02041 009-02041 009-01996 009-01996 009-01996 009-01996
9 REMOTE CONTROL 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35
REF DESCRIPTION A25A23W7 A25A23W74 A25A23W8 A25A23W84 A25A23W9 A27A22BT A27A22BT4
1 FRONT CABINET 014-12187-13 014-12187-13 014-12187-13 014-12187-13 014-12187-13 014-12186-29 014-12186-29
2 SPEAKER 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2)
3 KNOB ARRAY 046-10554 046-10554 046-10554 046-10554 046-10554 046-10554 046-10554
4 IR LENS 192-00922 192-00922 192-00922 192-00922 192-00922 192-00858-01 192-00858-01
5 CRT ASSEMBLY A63AFW36X A63AFW36X A63AFW36X A63AFW36X A63AGD01X A68AGD01X A68AGD01X
6 DEFLECTION YOKE 095-04456-05 095-04456-05 095-04531 095-04531 095-04456-03 095-03797-05 095-03797-05
7 REAR CABINET 014-12181-09 014-12181-09 014-12181-09 014-12181-09 014-12181-09 014-01285-10 014-01285-10
8 MAIN MODULE 009-02041 009-02041 009-02041 009-02041 009-01994 009-01997 009-01997
9 REMOTE CONTROL 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35
REF DESCRIPTION LGA26A23WM LGA26A23WM6 LGA26A23WM7 LGA26A23WM74 LGA26A23WM8 LGA26A23WM9
1 FRONT CABINET 014-12187-13 014-12187-13 014-12187-13 014-12187-13 014-12187-13 014-12187-13
2 SPEAKER 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2)
3 KNOB ARRAY 046-10554 046-10554 046-10554 046-10554 046-10554 046-10554
4 IR LENS 192-00858-01 192-00858-01 192-00858-01 192-00858-01 192-00858-01 192-00858-01
5 CRT ASSEMBLY A68AGD01X A63AHC26X A63AFW36X A63AFW36X A63AFW36X A68AGD01X
6 DEFLECTION YOKE 095-04456-03 095-04571 095-04456-05 095-04456-05 095-04531 095-04456-03
7 REAR CABINET 014-01281-09 014-01281-09 014-01281-09 014-01281-09 014-01281-09 014-01281-09
8 MAIN MODULE 009-01996 009-01996 009-02041 009-02041 009-02041 009-01996
9 REMOTE CONTROL 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35
8
1
7
6
5
3
4
2
MBR3447
124-00212-35
8
