Zenith A27A11D - Ga2 27;29 V Table Top Set Exploded View

CM150 5-6 GA - EXPLODED VIEWS

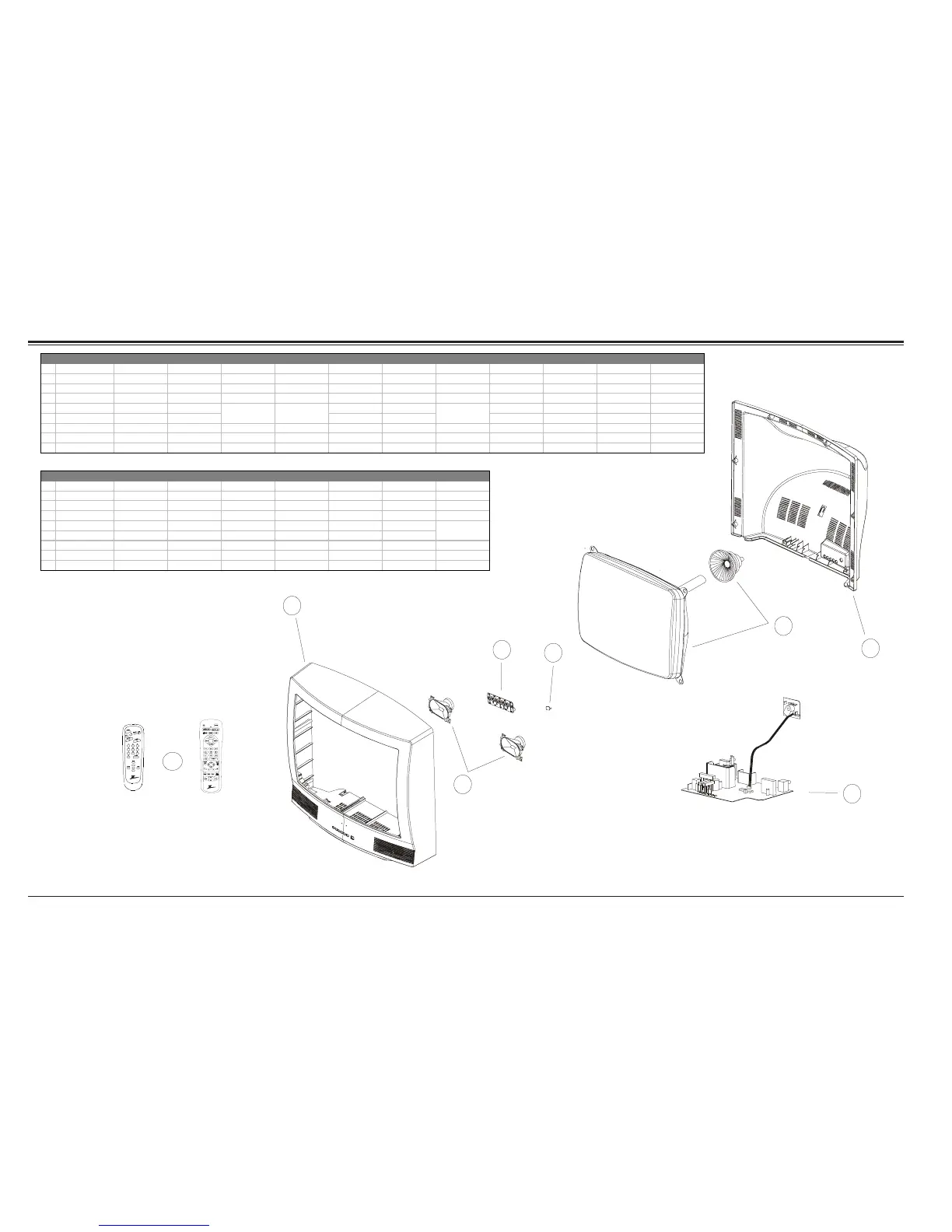

GA2 27/29V TABLE TOP SET EXPLODED VIEW
REF DESCRIPTION A27A11D A27A11D4 A27A11D8 A27A11D84 A27A12D A27A12D4 A27A12D8 LGA26A11DM74 LGA26A11DM8 LGA26A12DM LGA29A11DM
1 FRONT CABINET 014-12305-06 014-12305-06 014-12305-06 014-12305-06 014-12305-06 014-12305-06 014-12305-06 014-12296-15 014-12296-09 014-12296-09 014-12305-06
2 SPEAKER 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2)
3 KNOB ARRAY 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578
4 IR LENS 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916
5 CRT ASSEMBLY A68AGD02X A68AGD02X A68AGD02X A68AGD02X A63AFW36X A63AFW36X A63AGD01X A68AGD02X
6 DEFLECTION YOKE 095-03797-05 095-03797-05 095-03797-05 095-03797-05 095-04456-05 095-04531 095-04456-03 095-03797-05
7 REAR CABINET 014-12304-01 014-12304-01 014-12304-01 014-12304-01 014-12304-01 014-12304-01 014-12304-01 014-12297-05 014-12297-01 014-12297-01 014-12304-01
8 MAIN MODULE 009-01791-01 009-01791-01 009-01791-02 009-01791-02 009-01791-01 009-01791-01 009-01791-02 009-01976-01 009-01976-01 009-01970-01 009-01791-01
9 REMOTE CONTROL 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00212-58 124-00212-58 124-00212-58 124-00213-16 124-00213-16 124-00212-58 124-00213-16
A-19058-01 A-19058-01 A-19058-01
REF DESCRIPTION LGA29A11DM4 LGA29A11DM8 LGA29A11DM84 LGA29A11GM LGA29A12DM LGA29A12DM4 LGA29A12DM84
1 FRONT CABINET 014-12305-06 014-12305-06 014-12305-06 014-12305-07 014-12305-06 014-12305-06 014-12305-06
2 SPEAKER 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2)
3 KNOB ARRAY 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578 046-10578
4 IR LENS 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916 192-00916
5 CRT ASSEMBLY A68AGD02X A68AGD02X A68AGD02X A68AGD02X A68AGD02X A68AGD02X
6 DEFLECTION YOKE 095-03797-05 095-03797-05 095-03797-05 095-03797-05 095-03797-05 095-03797-05
7 REAR CABINET 014-12304-01 014-12304-01 014-12304-01 014-12304-01 014-12304-01 014-12304-01 014-12304-01
8 MAIN MODULE 009-01791-01 009-01791-02 009-01791-02 009-01791-01 009-01791-01 009-01791-01 009-01791-02
9 REMOTE CONTROL 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00212-58 124-00212-58 124-00212-58
A-19058-01
3
4
2
1
6
5
7
8
MBR3447A
124-00212-58
C
C
SC3492A
124-00213-16
