Zenith A27A11D - Ga3 27 V Contemporary Console Exploded View

CM150 5-10 GA - EXPLODED VIEWS

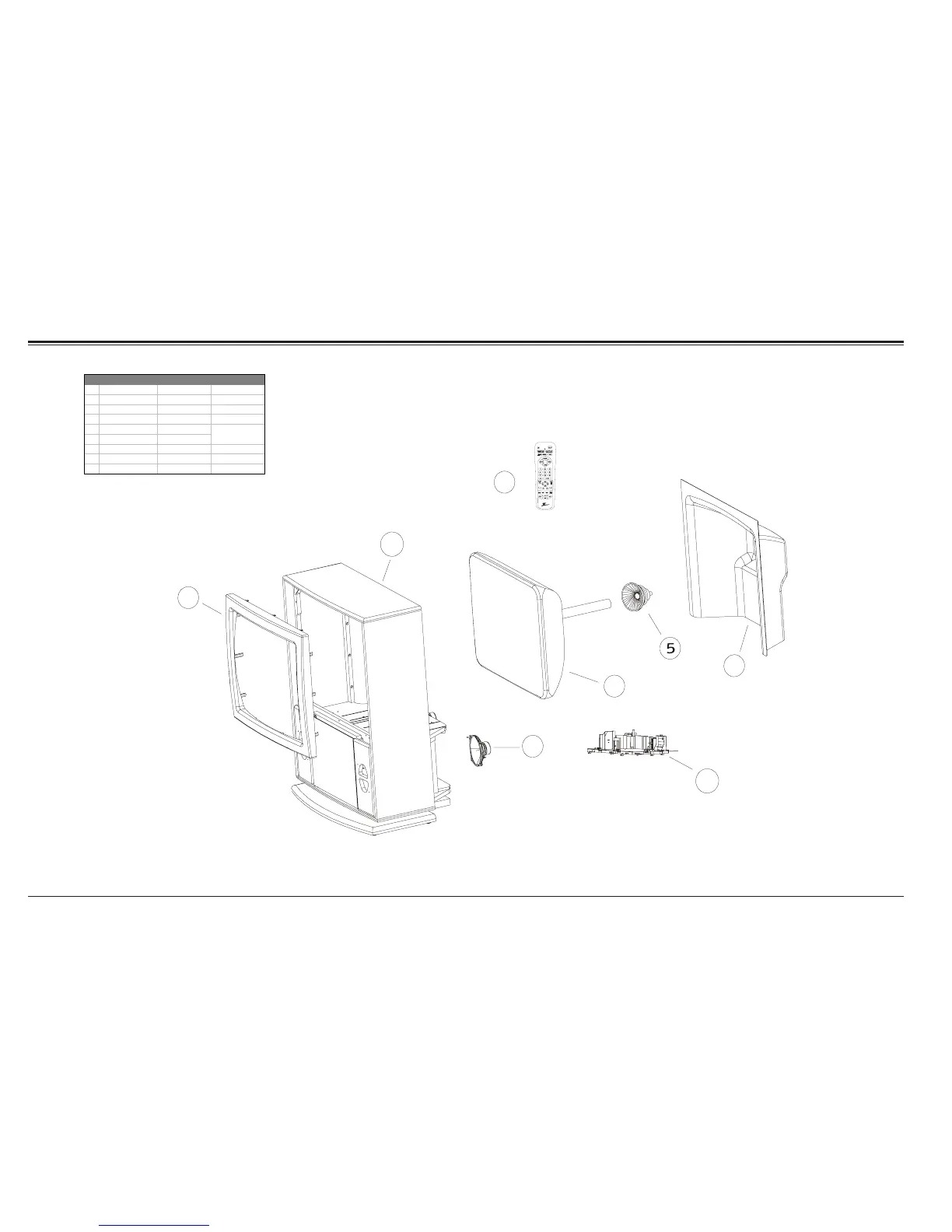

GA3 27V CONTEMPORARY CONSOLE EXPLODED VIEW
REF DESCRIPTION A27A76R A27A76R8
1 FRONT CABINET 014-12327 014-12327
2 SPEAKER 049-01334-02 (2) 049-01334-02 (2)
3 KNOB ARRAY 046-10555 046-10555
4 IR LENS 192-00872 192-00872
5 CRT A SSEMBLY
A68AGD01X
6 DEFLECTION YOKE 095-03797-05
7 REAR CABINET 014-11639-20 014-11639-20
8 MAIN MODULE 009-01998 009-01998
9 REMOTE CONTROL 124-00212-35 124-00212-35
A-19058
MBR3447
124-00212-35
6
1
4
3
8
7
2
