Zenith A27A11D - Ga3 27;29 V Table Top Set Exploded View

CM150 5-8 GA - EXPLODED VIEWS

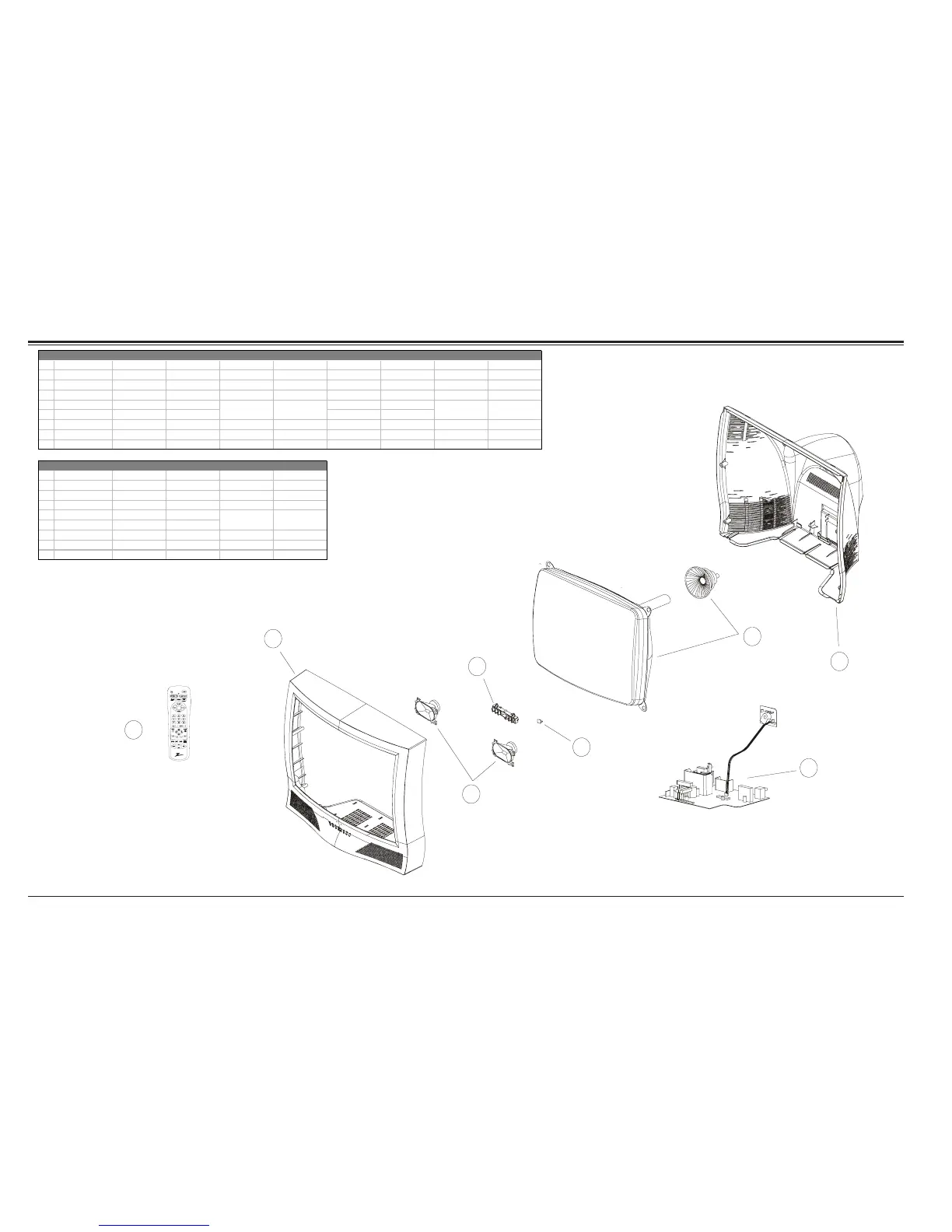

GA3 27/29V TABLE TOP SET EXPLODED VIEW
3
4
2
1
7
6
5
MBR3447
124-00212-35
8
REF DESCRIPTION A27A22BT A27A22BT4 A27A22BT8 A27A22BT84 A27A23W A27A23W4 A27A23W8 A27A23W84
1 FRONT CABINET 014-12186-29 014-12186-29 014-12186-29 014-12186-29 014-12281-04 014-12281-06 014-12281-04 014-12281-06
2 SPEAKER 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2)
3 KNOB ARRAY 046-10554 046-10554 046-10554 046-10554 046-10588 046-10588 046-10588 046-10588
4 IR LENS 192-00858-01 192-00858-01 192-00858-01 192-00858-01 192-00912 192-00912 192-00912 192-00912
5 CRT ASSEMBLY A68AGD01X A68AGD01X A68AGD02X A68AGD02X
6 DEFLECTION YOKE 095-03797-05 095-03797-05 095-03797-05 095-03797-05
7 REAR CABINET 014-01285-10 014-01285-10 014-01285-10 014-01285-10 014-01282-04 014-01282-06 014-01282-04 014-01282-06
8 MAIN MODULE 009-01997 009-01997 009-01997-01 009-01997-01 009-01997 009-01997 009-01997-01 009-01997-01
9 REMOTE CONTROL 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35 124-00212-35
A-19058 A-19058 A-19058-01 A-19058-01
REF DESCRIPTION LGA29A23WM LGA29A23WM4 LGA29A23WM8 LGA29A23WM84
1 FRONT CABINET 014-12281-04 014-12281-06 014-12281-04 014-12281-06
2 SPEAKER 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2) 049-01368-03 (2)
3 KNOB ARRAY 046-10588 046-10588 046-10588 046-10588
4 IR LENS 192-00912 192-00912 192-00912 192-00912
5 CRT ASSEMBLY A68AGD02X A68AGD02X
6 DEFLECTION YOKE 095-03797-05 095-03797-05
7 REAR CABINET 014-12282-04 014-12282-06 014-12282-04 014-12282-06
8 MAIN MODULE 009-01997 009-01997 009-01997-01 009-01997-01
9 REMOTE CONTROL 124-00212-35 124-00212-35 124-00212-35 124-00212-35
A-19058-01 A-19058-01
