Zenith A27A11D - Ga1 19;20 V Stereo Table Top Set Exploded View

CM150 5-2 GA - EXPLODED VIEWS

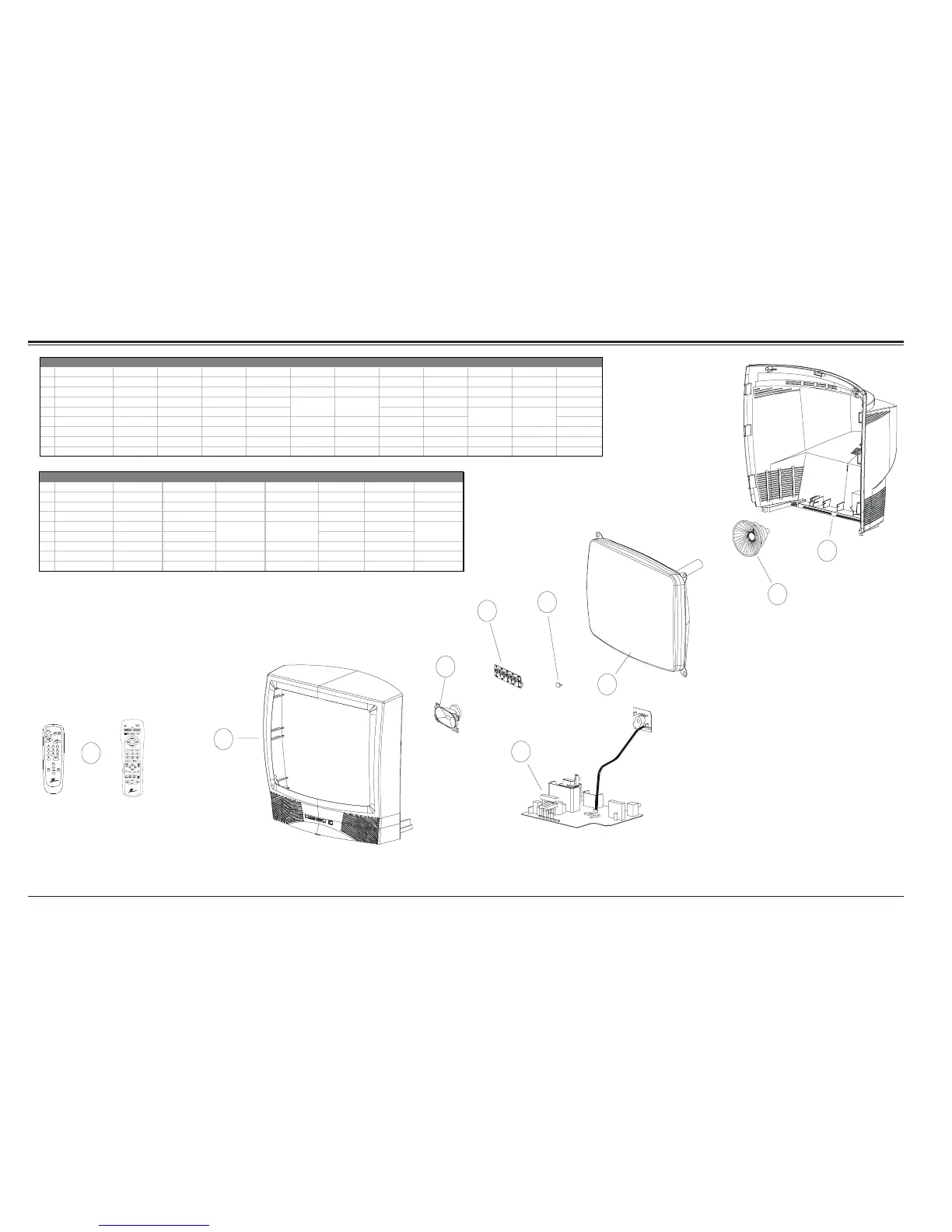

GA1 19/20V STEREO TABLE TOP SET EXPLODED VIEW
REF DESCRIPTION A19A11D A19A11D4 A19A11D7 A19A11D74 A19A11D8 A19A11D84 A20A22D A20A22D4 A20A22D8 A20A22D84 LGA20A11DM
1 FRONT CABINET 014-12289-09 014-12289-10 014-12289-09 014-12289-10 014-12289-09 014-12289-10 014-12292-04 014-12292-04 014-12292-04 014-12292-04 014-12289-09
2 SPEAKER 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2)
3 KNOB ARRAY 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577
4 IR LENS 192-00917 192-00917 192-00917 192-00917 192-00917 192-00917 192-00917 192-00917 192-00917
5 CRT ASSEMBLY A48ACB32X A48ACB32X A48KRD89X A48KRD89X A51AGD33X A51AGD33X A48ACB32X
6 DEFLECTION YOKE 095-03705-12 095-03705-12 095-04557 095-04557 095-04557 095-04557 095-04023-09 095-04023-09 095-03705-12
7 REAR CABINET 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12294 014-12294-03 014-12294-03 014-12294-03 014-12291-04
8 MAIN MODULE 009-01870-01 009-01870-01 009-01991-01 009-01991-01 009-01991-01 009-01991-01 009-01871-01 009-01871-01 009-01992-01 009-01871-01 009-01870-01
9 REMOTE CONTROL 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00212-62 124-00212-62 124-00212-62 124-00212-62 124-00213-16
A-18693 A-18693
A-18671 A-18671
REF DESCRIPTION LGA20A11DM7 LGA20A11DM74 LGA20A11DM8 LGA20A11DM84 LGA21A22DM LGA21A22DM4 LGA21A22DM8
1 FRONT CABINET 014-12289-09 014-12289-10 014-12289-09 014-12289-10 014-12292-04 014-12292-04 014-12292-04
2 SPEAKER 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2) 049-01369 (2)
3 KNOB ARRAY 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577 046-10577
4 IR LENS 192-00917 192-00917 192-00917 192-00917 192-00917 192-00917 192-00917
5 CRT ASSEMBLY A48KRD89X A48KRD89X A51AGD33X A51AGD33X
6 DEFLECTION YOKE 095-04557 095-04557 095-04023-09 095-04023-09
7 REAR CABINET 014-12291-04 014-12291-04 014-12291-04 014-12291-04 014-12294-03 014-12294-03 014-12294-03
8 MAIN MODULE 009-01991-01 009-01991-01 009-01991-01 009-01991-01 009-01871-01 009-01871-01 009-01992-01
9 REMOTE CONTROL 124-00213-16 124-00213-16 124-00213-16 124-00213-16 124-00212-62 124-00212-62 124-00212-62
A-18671 A-18671 A-18693
2
3
4
5
6
8
7
1
MBR3447
124-00212-35
9
C
C
SC3492A
124-00213-16
