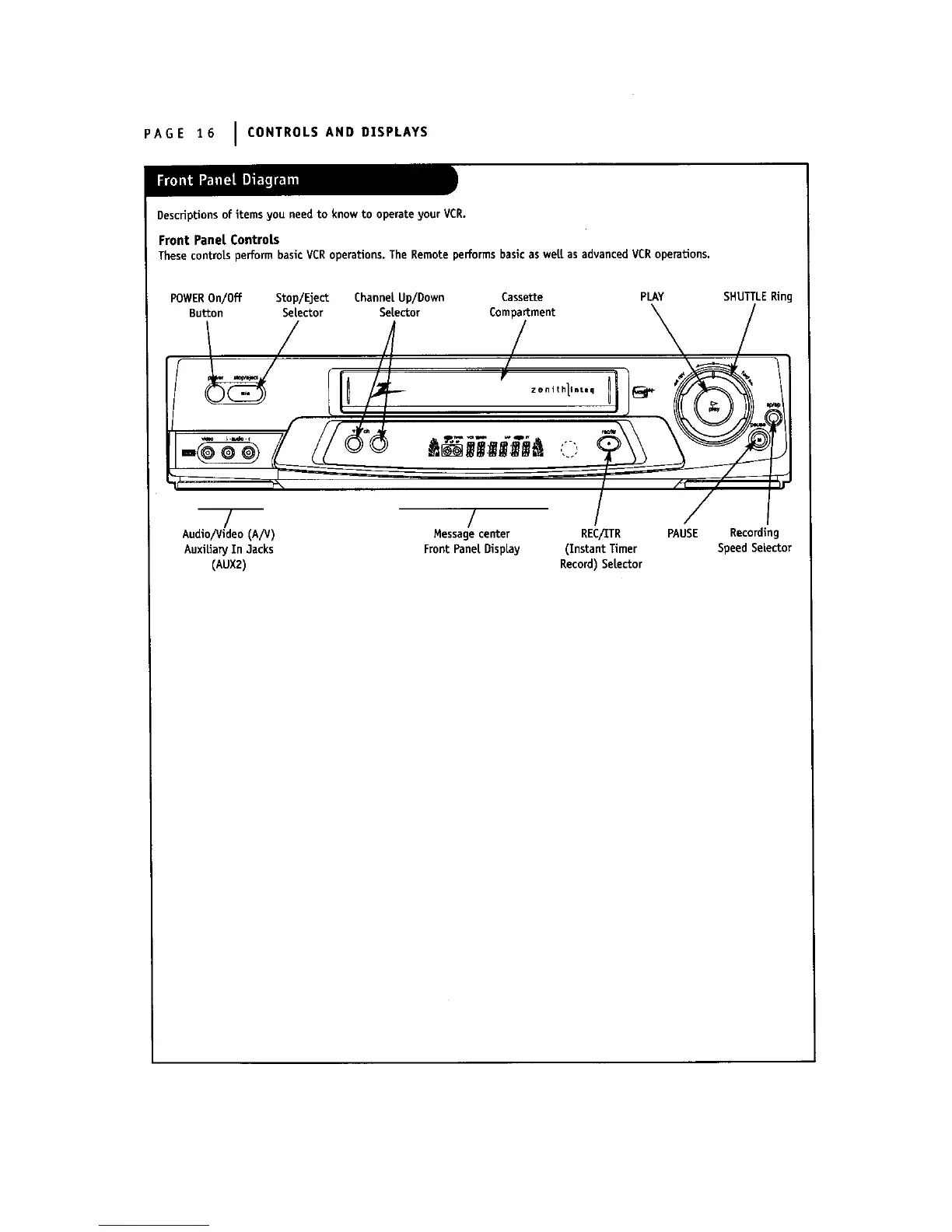

PAGE16 I CONTROLS AND DISPLAYS
Descriptions of items you need to know to operate your VCR.
Front Pane| Controts
These controls perform basic VCR operations. The Remote performs basicas wett as advanced VCRoperations.
POWEROn/Off Stop/Eject Channei Up/Down Cassette PLAY
Button Selector Selector Compartment
/
• _°°,,_l,°,.,II
SHUTTLERing
7 /
Audio/Video (A/V) Messagecenter REC/ITR
AuxiLiaryIn 3acks Front PaneLDispLay (Instant Timer
(AUX2) Record) Selector
PAUSE Recording
Speed SeLector
