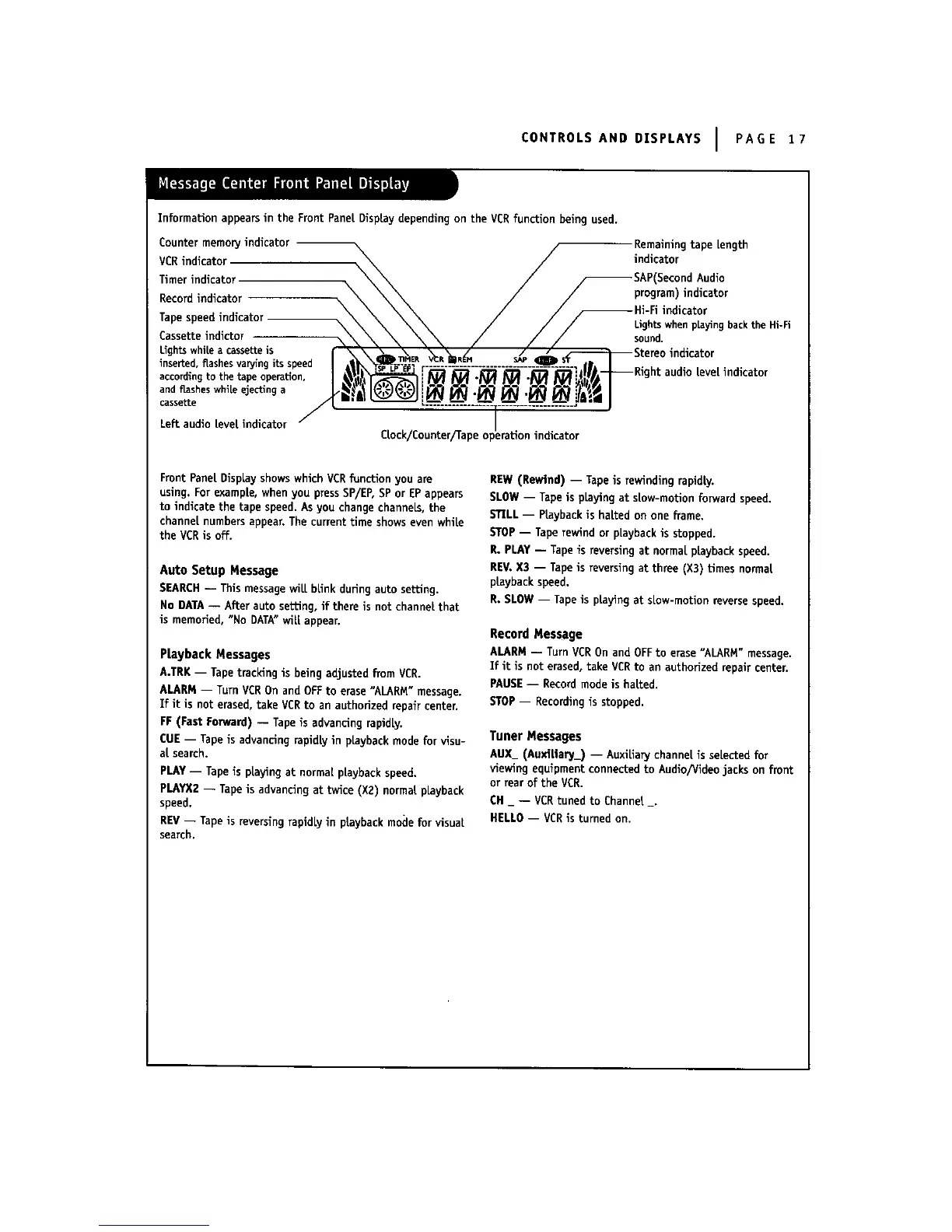

CONTROLS AND DISPLAYS I PAGE 17
Informationappearsin the FrontPanelDispLaydependingon the VER functionbeing used.
Counter memory indicator
VCR indicator
Timerindicator
Record indicator
Tape speed indicator
Cassette indictor
Lights whi[ea cassette is
inserted, flashes va_ng its speed
according to the tape operaUon,
and flasheswhi[eejecting a
cassette
Left audio [eve[indicator
Remaining tape length
indicator
Audio
program) indicator
indicator
Lightswhenplayingback the Hi-Fi
sound.
[eve[indlcator
Front Pane[ DispLayshows which VCR function you are
using. For example, when you pressSP/EP, SP or EP appears
to indicate the tape speed. Asyou change channeLs,the
channeL numbers appear. The current time shows even while
the VCRis off.
Auto Setup Message
SEARCH-- This messagewiLLblink during auto setting.
No DATA-- After auto setting, if there is not channel that
is memoHed, "No DATA"will appear.
PLayback Messages
A.TRK -- Tapetracking is being adjusted from VCR.
ALARM -- Turn VCROn and OFFto erase "ALARM" message.
If it is not erased, take VCRto an authorized repair center.
FF (Fast Forward) -- Tape is advancing rapidLy.
CUE -- Tape is advancing rapidly in playback mode for visu-
aLsearch.
PLAY -- Tape is playing at normal playback speed.
PLAYX2 -- Tape is advancing at twice (X2) normal playback
speed.
REV -- Tape is reversing rapidLy in playback mo_Jefor visuaL
search.
REW (Rewind) -- Tape is rewinding rapidly.
SLOW -- Tape is playing at sLow-motionforward speed.
STILL -- PLaybackis halted on one frame.
STOP-- Tape rewind or pLaybackis stopped.
R. PLAY -- Tape is reversing at normaLplayback speed.
REV. X3 -- Tape is reversing at three (X3) times normal
playback speed.
R. SLOW-- Tapeis playing at sLow-motion reverse speed.
Record Message
ALARM -- Turn VCROn and OFFto erase "ALARM"message.
If it is not erased, take VERto an authorized repair center.
PAUSE-- Record mode is halted.
STOP-- Recording is stopped.
Tuner Messages
AUX_(Aux_Hary_)--AuxlUarychanneLis se_ctedfor
_ewing equlpmentconnected to Audio/Video jacks on front
or rear of the VCR.
CH_--VCR tuned to Channel.
HELLO--VER is turned on.
