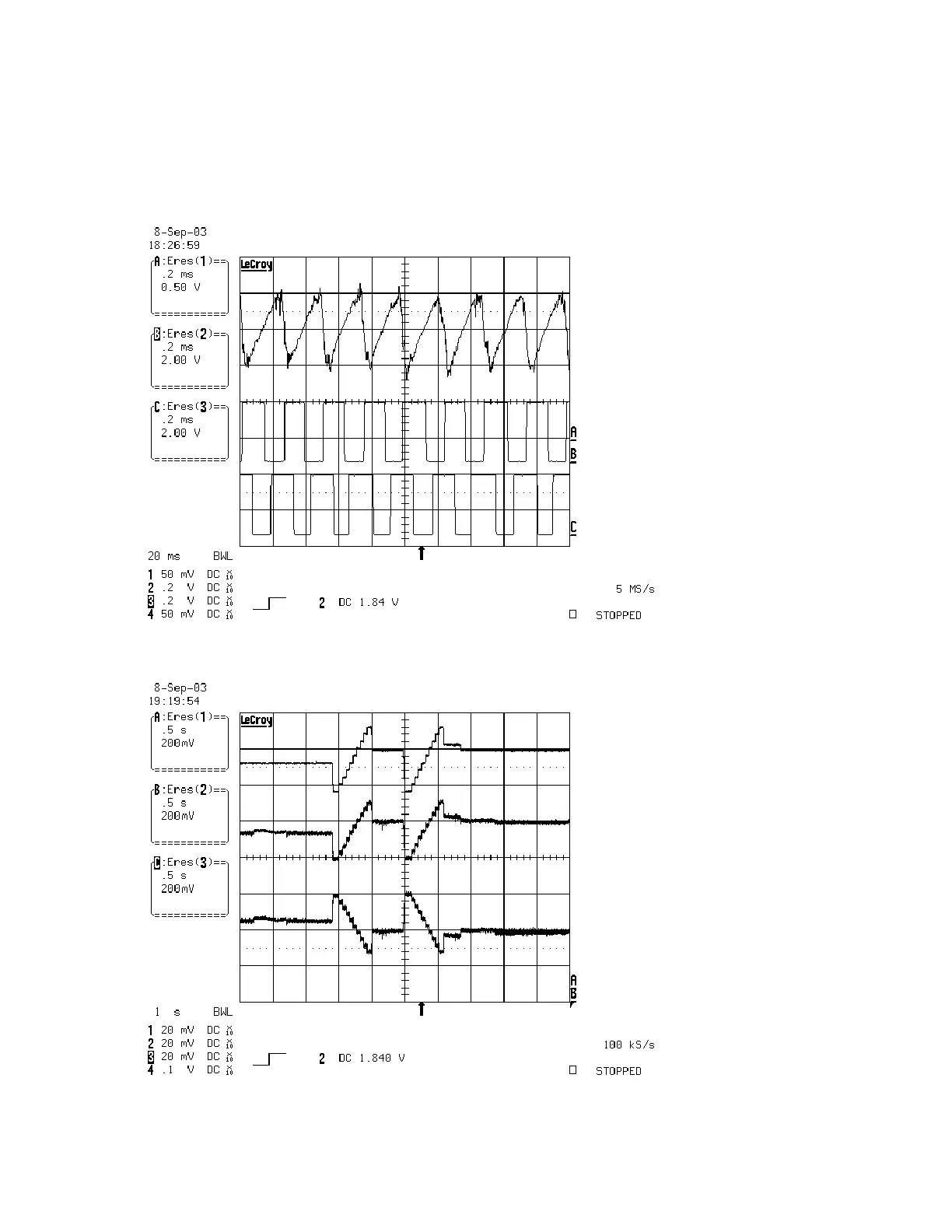

25. TRACK OFF SIGNAL(DVD)

TZC(IC106 PIN74)

MIRRBCA

(IC106 PIN77)

TE (IC106 PIN85)

TILTDRV(IC102 PIN47)

TILT+(IC102 PIN50)

TILT-(IC102 PIN49)

26. Tilt Driver signal(Disc reading)
