Zenith XBR411 - Main Clock1 for Ic202 (16.9 Mhz); Power & Reset Signal; Waveforms

3-112

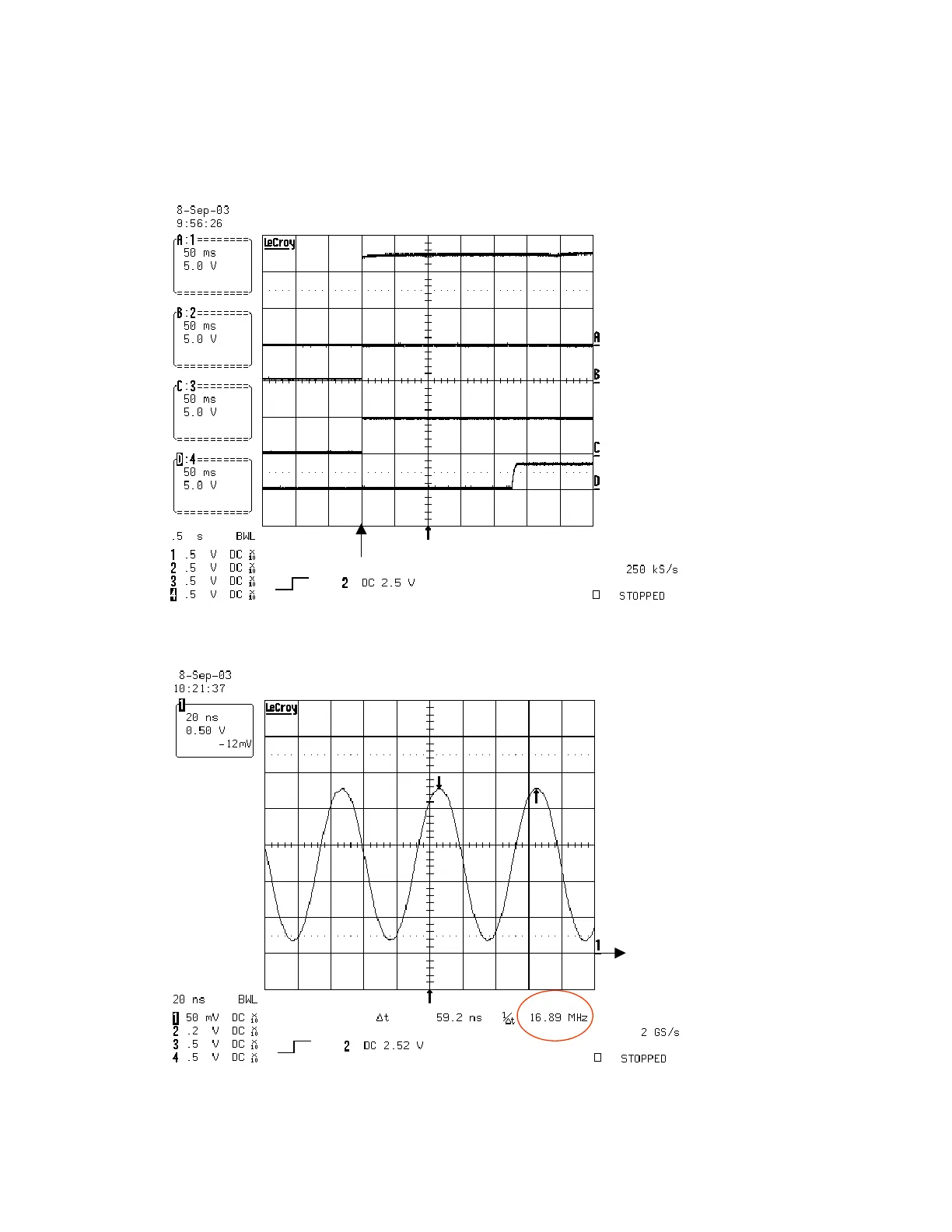

WAVEFORMS
1. POWER & RESET Signal
/HRST(IC202 PIN 3)
/RST(IC202 PIN2)
12 V(CN202 PIN4)
5 V(CN202 PIN 1)
X201(IC201 PIN 3)
GND LEVEL
POWER IN
2. Main Clock1 for IC202 (16.9MHz)
