3-115

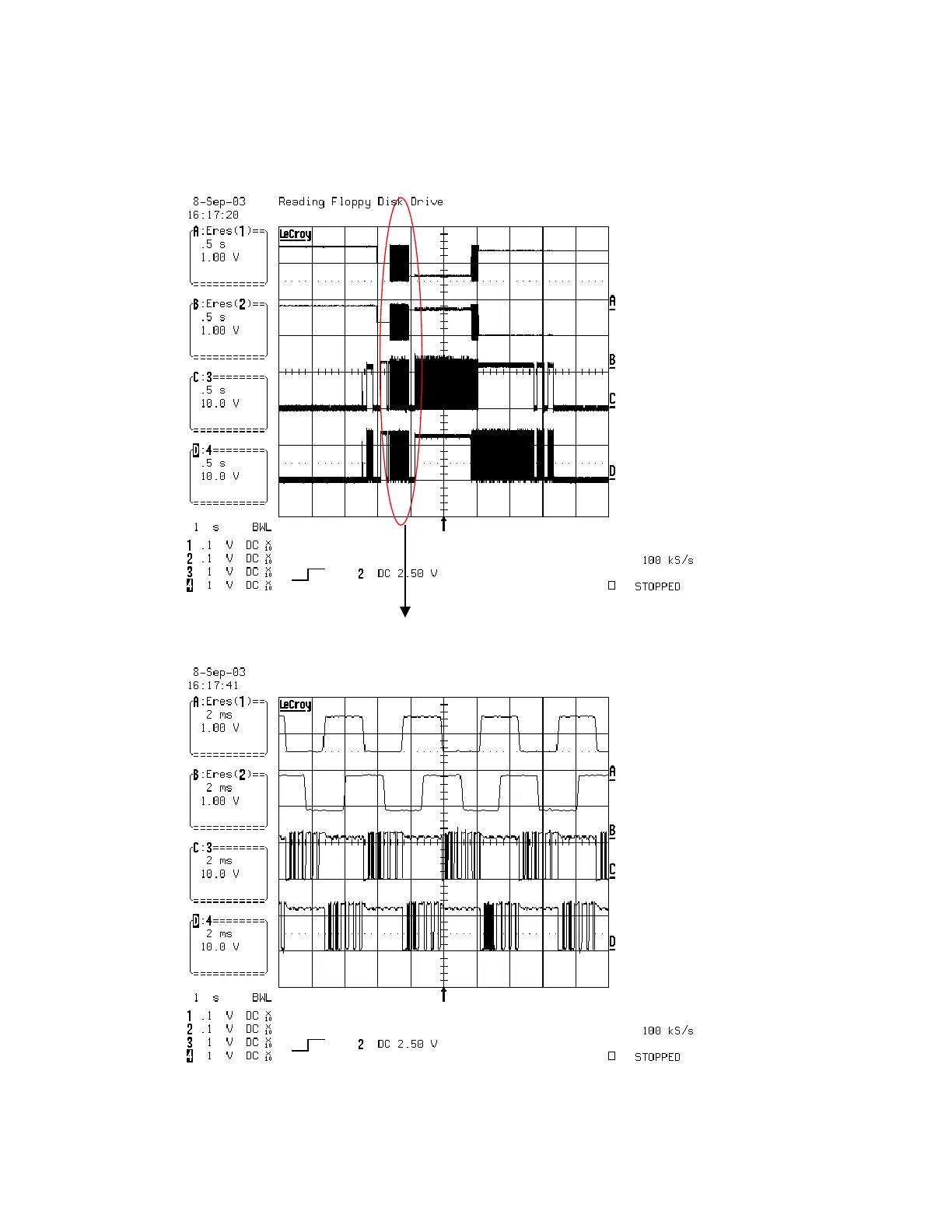

7. SLED MOVE SIGNAL 1
A+(CN100 PIN 2)
STEP1
(IC107 PIN8)
STEP2
(IC107 PIN9)
A-(CN100 PIN 1)
ZOOM
A+(CN100 PIN 2)
STEP1
(IC107 PIN8)
STEP2
(IC107 PIN9)
A-(CN100 PIN 1)
8. SLED MOVE SIGNAL 2
