How to use test tool
1. ALPC Measurement System Configuration
In order to measure and adjust DVD RW optical power, The following measurement equipments are needed.
N Compulsory equipment
➀ Optical Power meter & Sensor (ADVANTEST, TQ8210/Q82017A or equivalent
➁ Personal Computer
➂ Adjustment Program (Dragon or ALPC) for SVC, ALPC Program recommended
N Fl optional equipment
➀USB-ATAPI Interface (needed when using USB Port from the laptop computer without ATAPI interface or a desktop
computer)
➁Connector-ATAPI Interface Board (needed when ATAPI is not attached to DR-02)

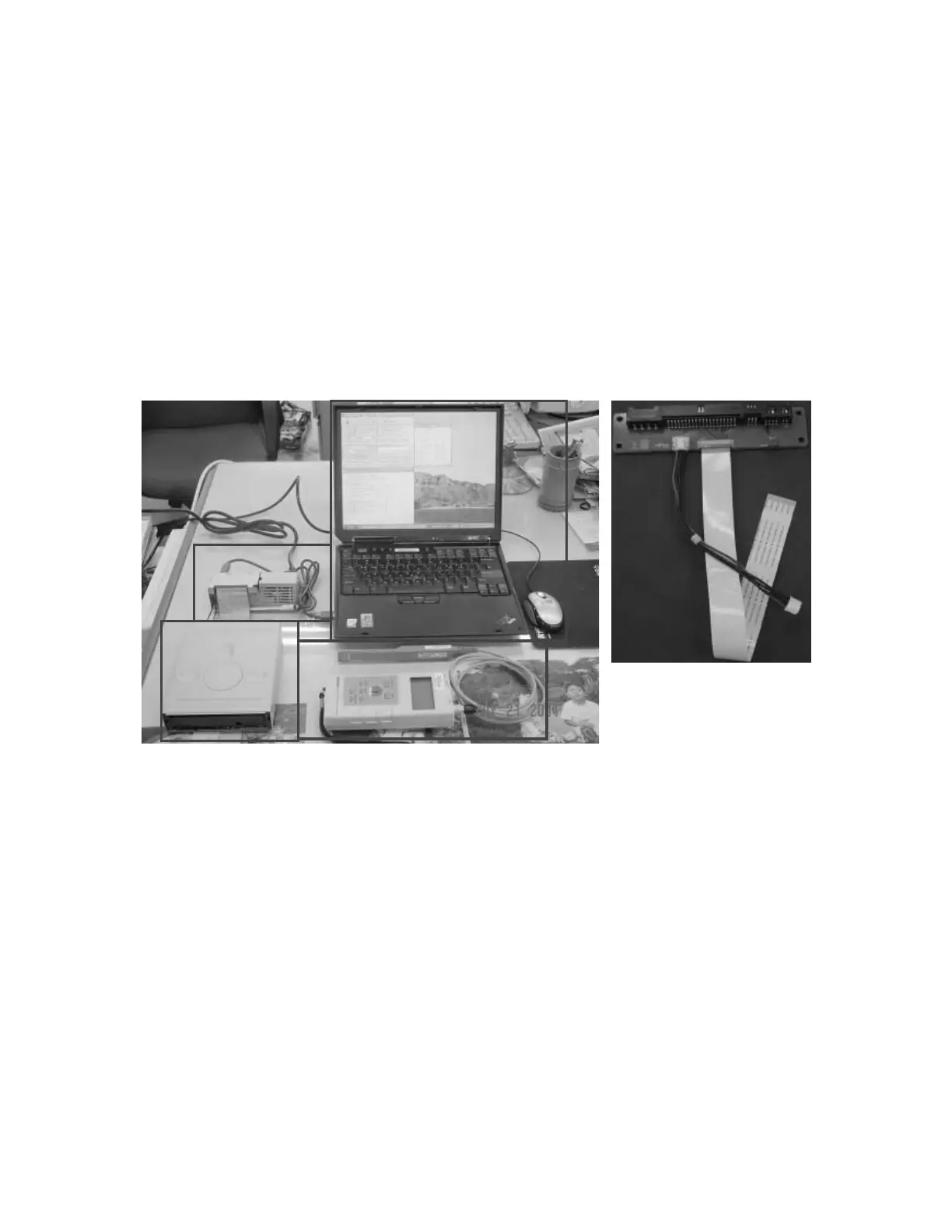

Personal Computer
(Desktop or Notebook)
Optical Power Meter
USB-ATAPI
Interface
Loader Ass’y
Connector-ATAPI Interface Board
