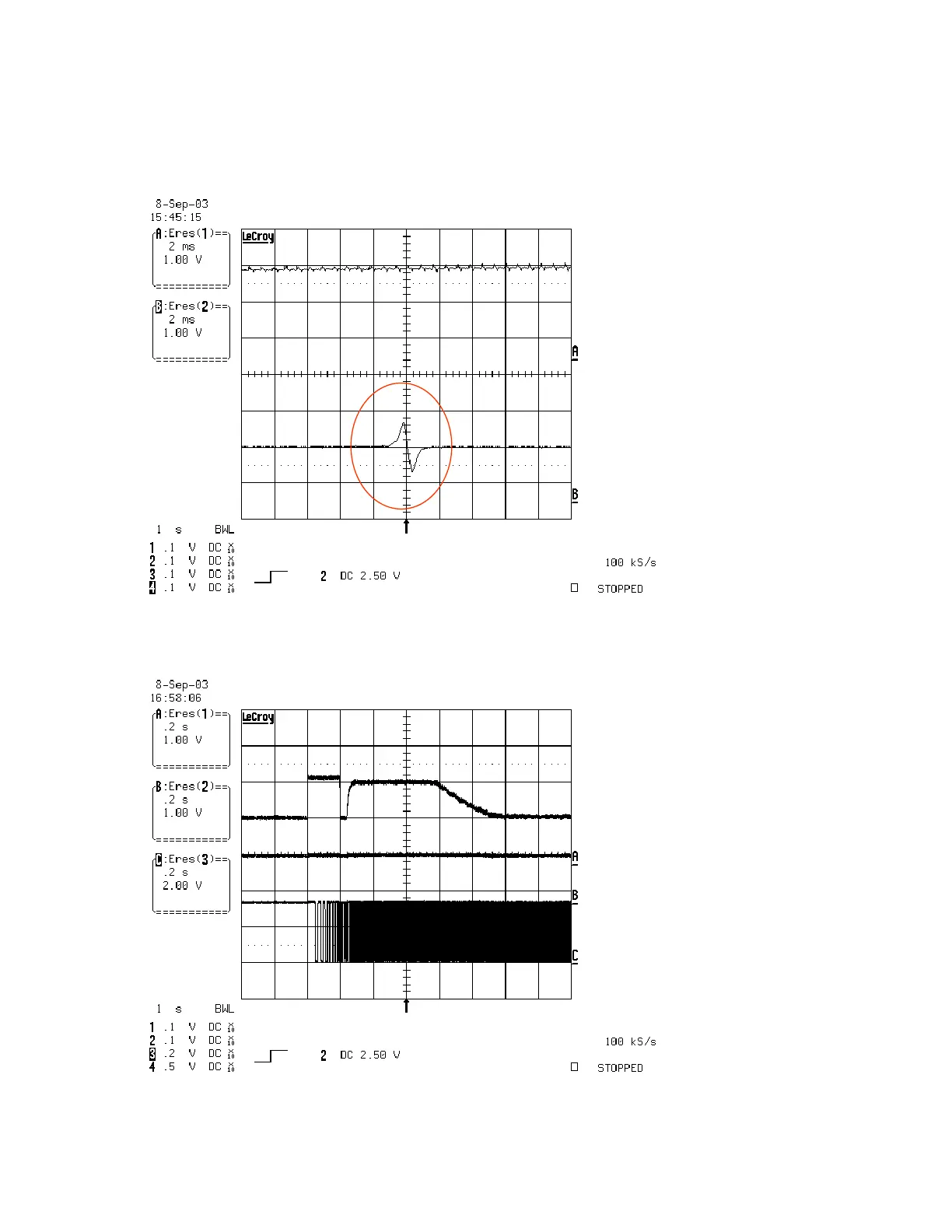

17. DISC TYPE JUDGEMENT WAVEFORM (DVDRW)
FE (IC106 PIN87)
F+ (IC102 PIN 52)
MDRV (IC104 PIN 9)
SFG((IC102 PIN43)
SRVC (IC104 PIN 10)
18. SPINDLE WAVEFORM1
