3-118

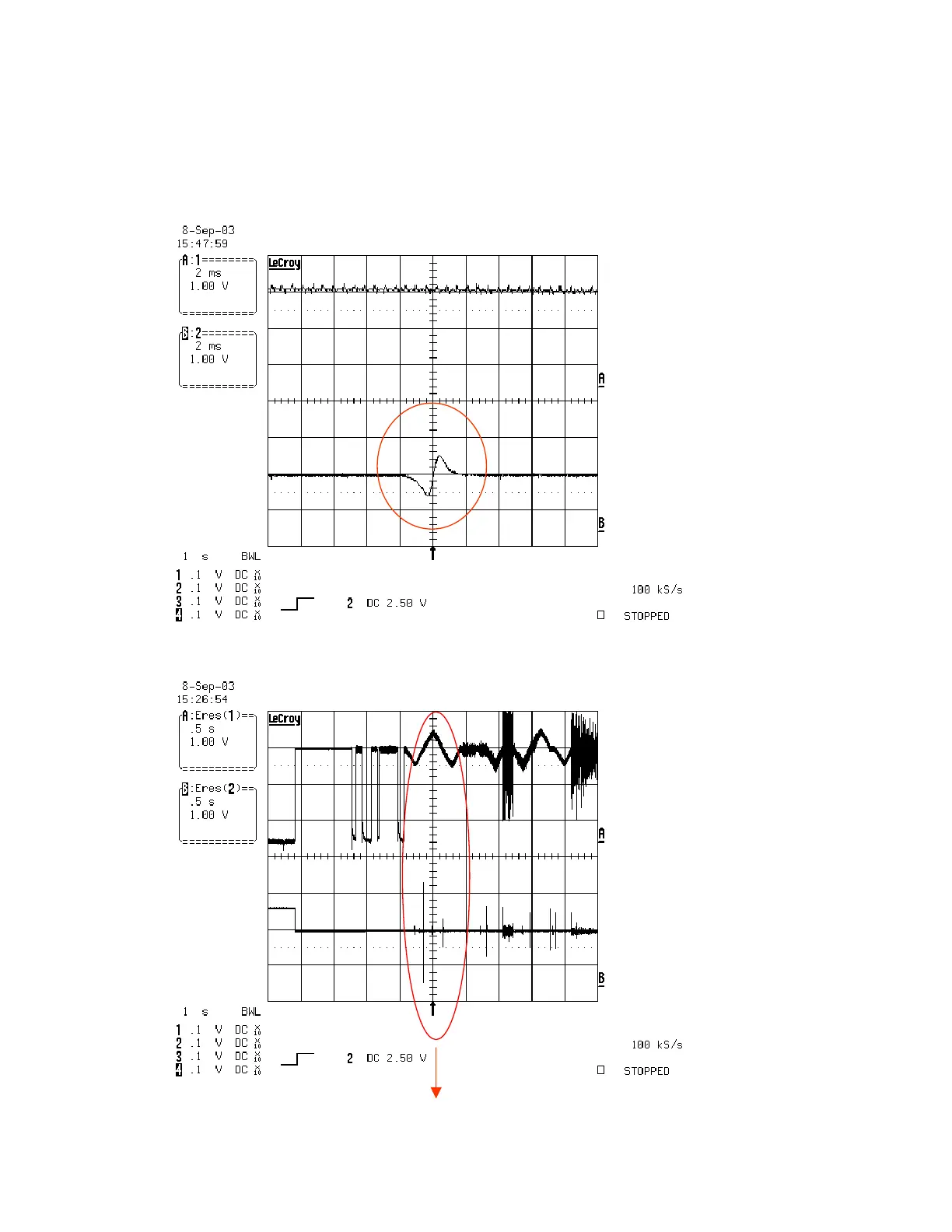

13. DISC TYPE JUDGEMENT WAVEFORM (CD-RW)
FE (IC106 PIN87)
F+ (IC102 PIN 52)
ZOOM
FE (IC106 PIN87)
F+ (IC102 PIN 52)
14. DISC TYPE JUDGEMENT WAVEFORM (DVD SERIES)
