Product overview
7www.zepro.com
1.2 Accessing the card and the hydraulic unit

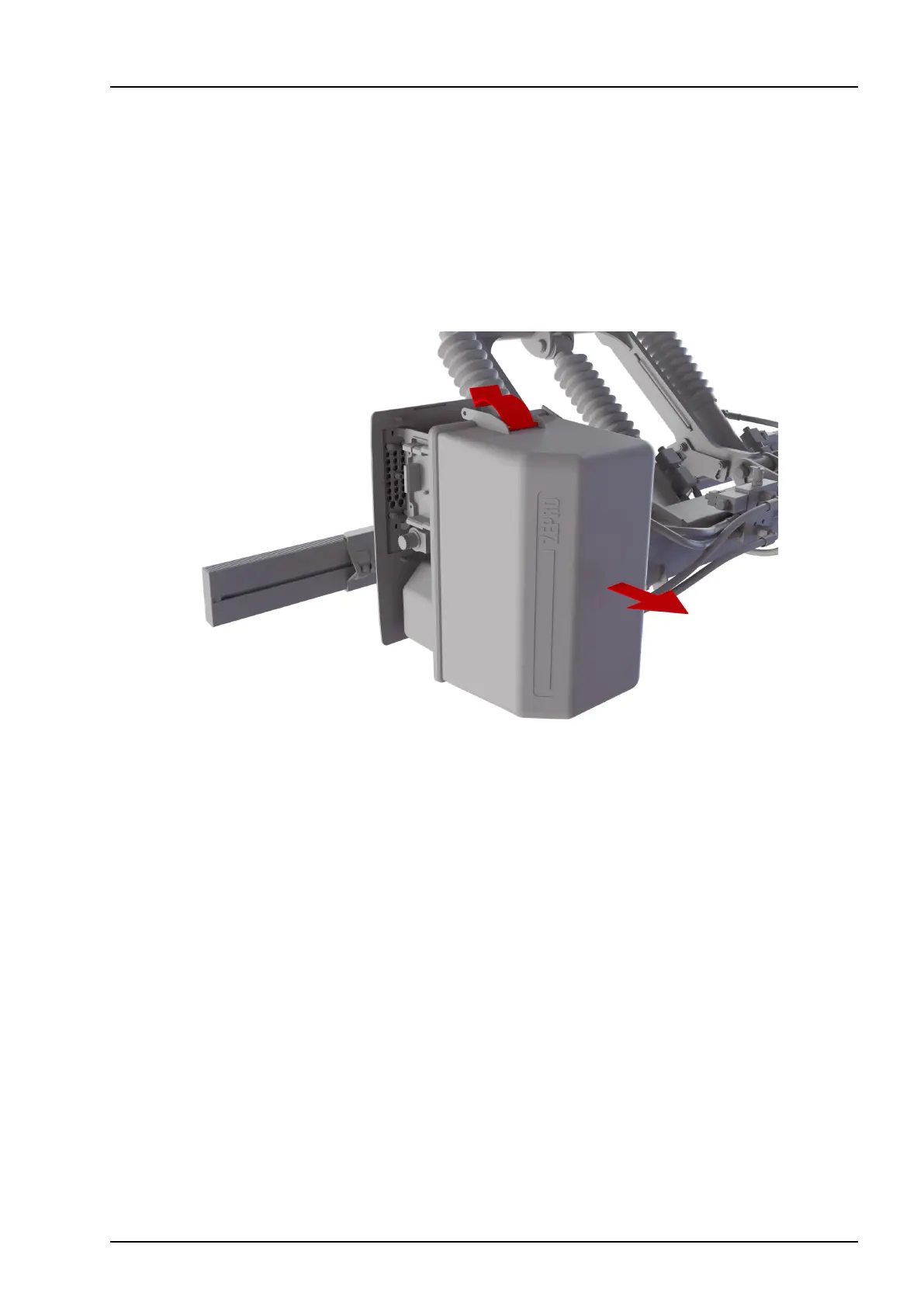

The control card and the hydraulic unit are housed inside the box located on the right side on the tail
lift. They are accessed by unlatching the two latches on the top and the bottom on the plastic cover
and removing
the cover.
