Control cards
9www.zepro.com
2 Control cards
2.1 ZePRO1 circuit card
2.1.1 Overview
TheZePRO1controlcardcanbesplitintodifferentfunctionalsectionsasshowninthefollowinggure.In-
depth explanations of each section are contained in the following chapters.

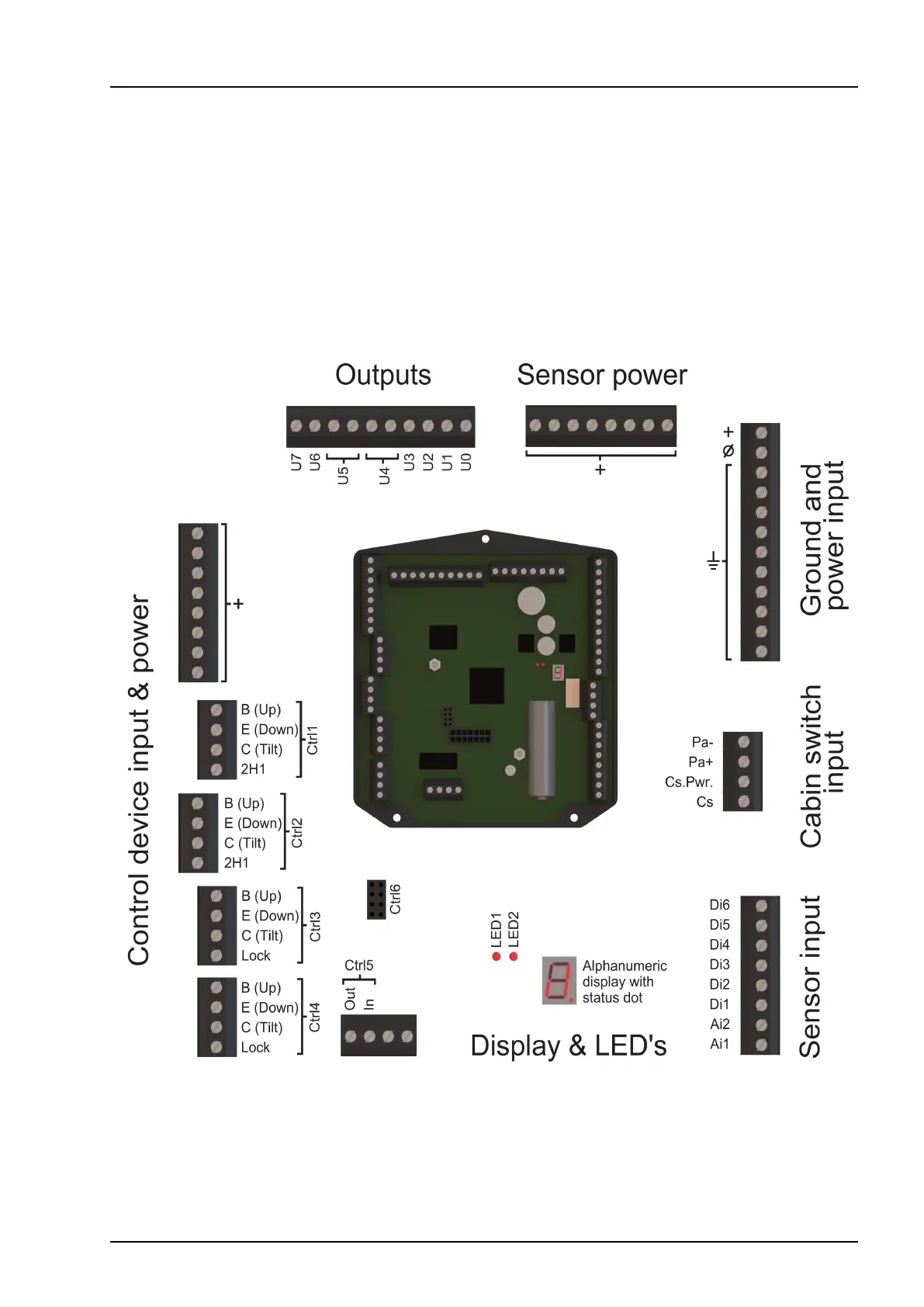

Fig 3. ZePRO1 control card
