2.2 TLC B1 relay card
2.2.1 Overview
TheTLCB1controlcardcanbesplitintodifferentfunctionalsectionsasshowninthefollowinggure.In-
depth explanations of each section are contained in the following chapters.

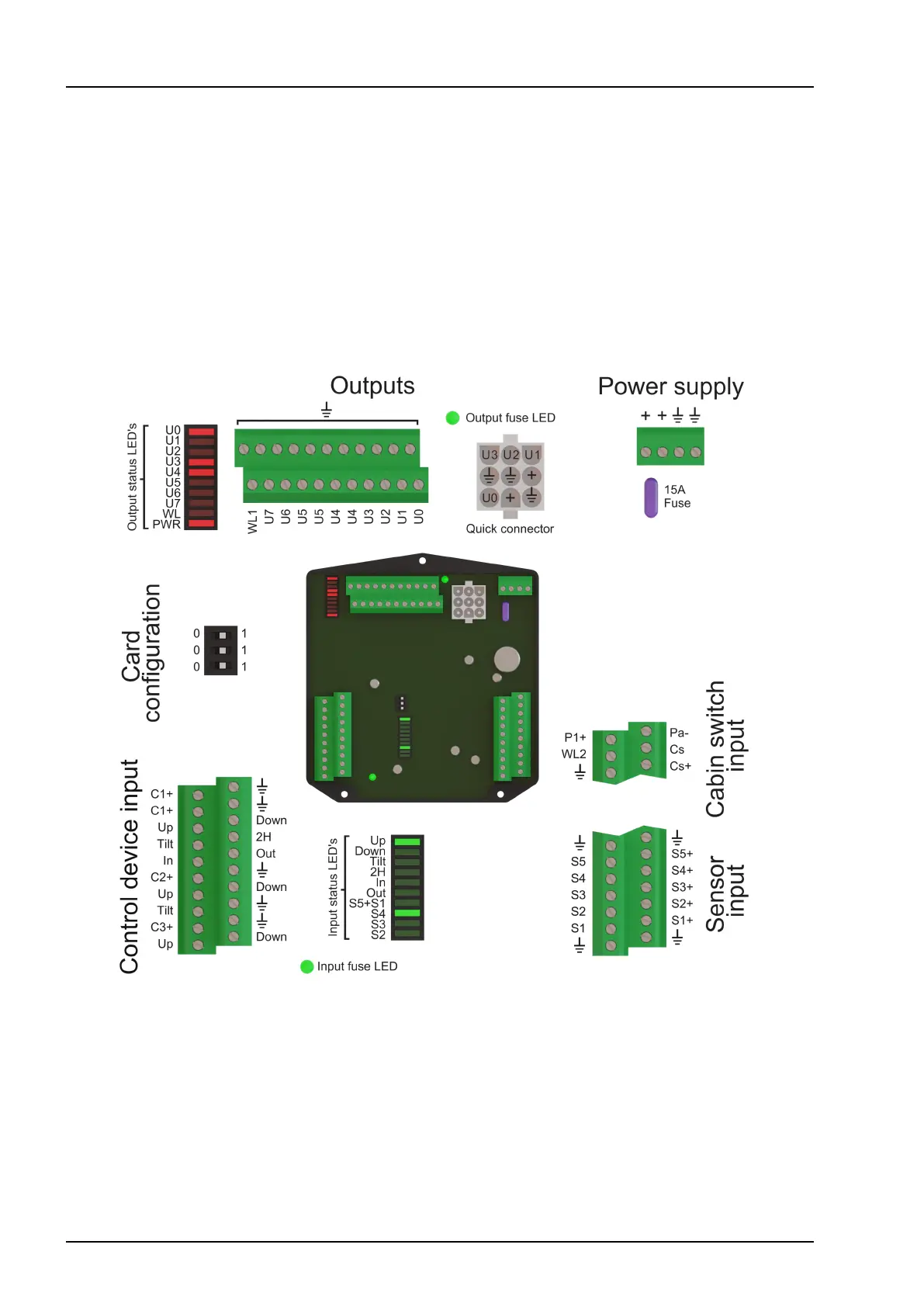

Fig 11. TLC B1 control card
