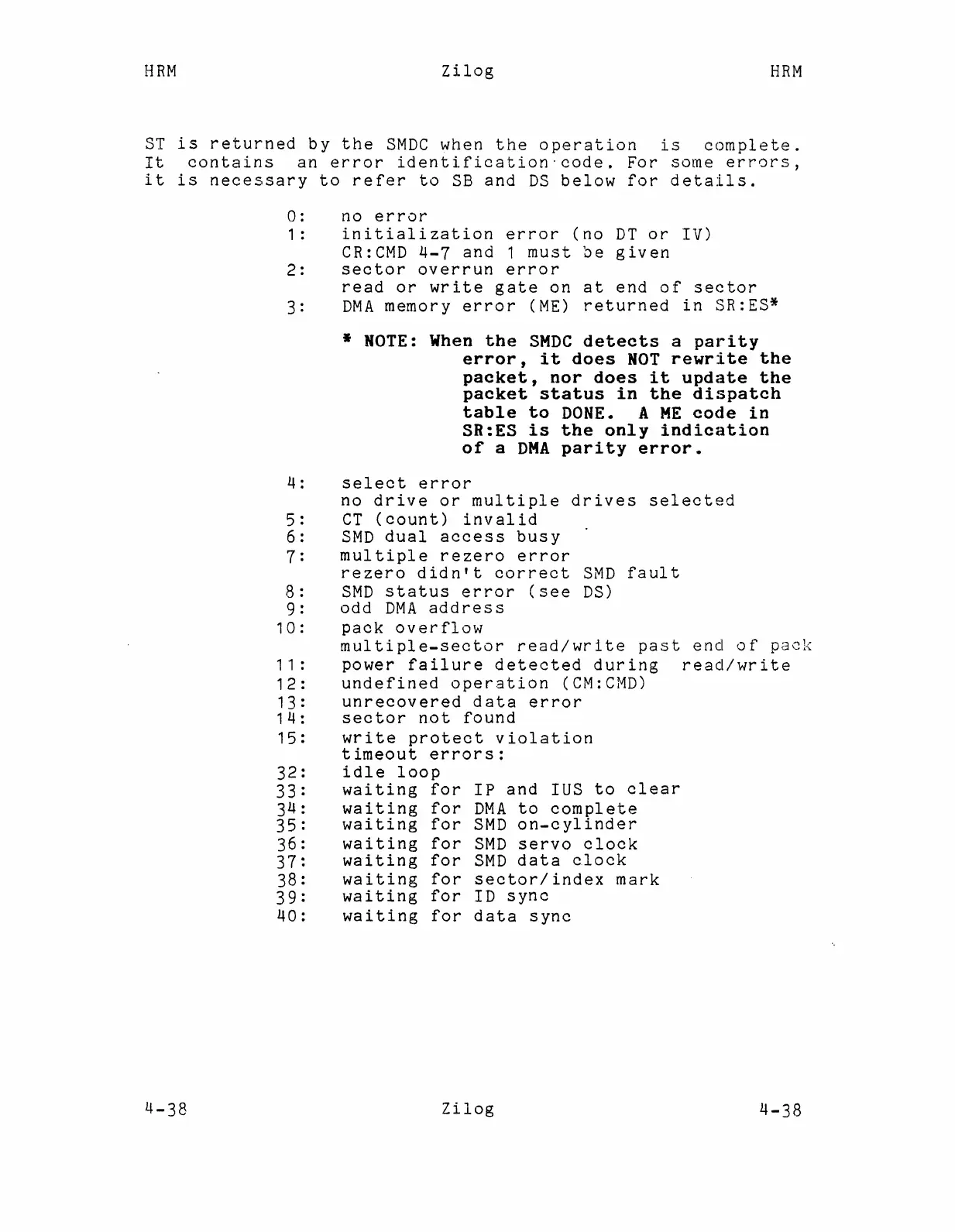

ST is returned by the SMDC when the operation is complete.
It contains an error identification·code. For some errors,
it is necessary to refer to S8 and DS below for details.
0: no error
1: initialization error (no DT or IV)
CR:CMD 4-7 and 1 must be given
2: sector overrun error
read or write gate on at end of sector
3: DMA memory error (ME) returned in SR:ES*
* NOTE: When the SMDC detects a parity
error, it does NOT rewrite the
packet, nor does it update the
packet status in the dispatch
table to DONE. A ME code in
SR:ES is the only indication
of a DMA parity error.
4: select error
no drive or multiple drives selected
5: CT (count) invalid
6: SMD dual access busy
7: multiple rezero error
rezero didn't correct SMD fault
8: SMD status error (see DS)
9: odd DMA address
10: pack overflow
multiple-sector read/write past end of pack
11: power failure detected during read/write
12: undefined operation (CM:CMD)
13: unrecovered data error
14: sector not found
15: write protect violation
timeout errors:
32: idle loop
33: waiting for IP and IUS to clear
34: waiting for DMA to complete
35: waiting for SMD on-cylinder
36: waiting for SMD servo clock
37: waiting for SMD data clock
38: waiting for sector/index mark
39: waiting for ID sync
40: waiting for data sync
