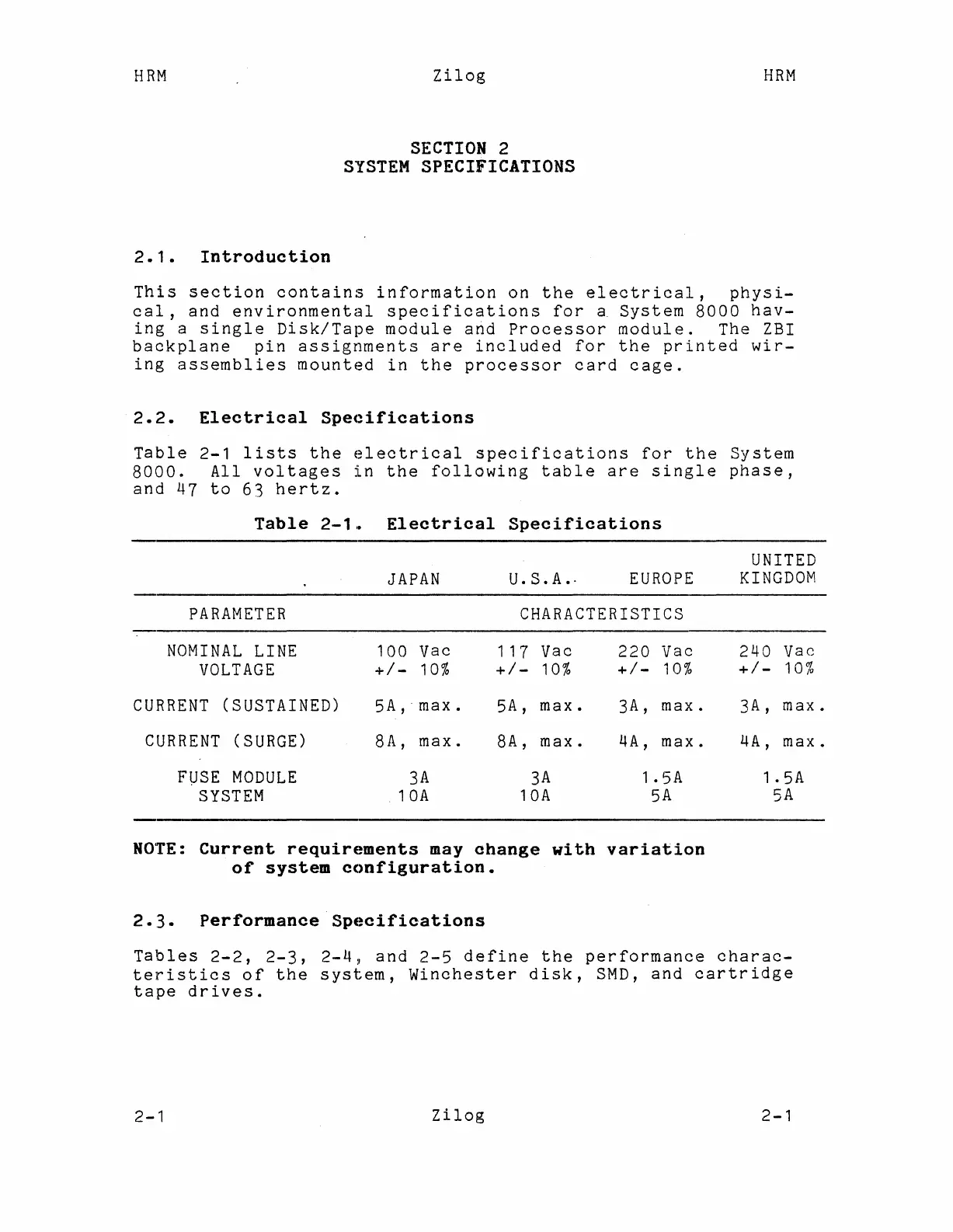

2.1. Introduction
Zilog
SECTION 2
SYSTEM SPECIFICATIONS
HRM
This section contains information on the electrical, physi-
cal, and environmental specifications for a System 8000 hav-
ing a single Disk/Tape module arid Processor module. The ZBI
backplane pin assignments are included for the printed wir-
ing assemblies mounted in the processor card cage.
2.2. Electrical Specifications
Table 2-1 lists the electrical specifications for the System
8000. All voltages in the following table are single phase,
and 47 to 63 hertz.
Table 2-1~ Electrical Specifications
JAPAN U. S.A.·
EUROPE
UNITED
KINGDOM
PARAMETER
CHARACTERISTICS
NOMINAL LINE
100
Vac
11
7
Vac
220
Vac
240
Vac
VOLTAGE +/- 10%
+/-
10%
+/-
10%
+/-
10%
CURRENT
(SUSTAINED)
5A,
.
max.
5A,
max.
3A,
max.
3A,
max.
CURRENT (SURGE)
8A,
max.
8A,
max.
4A,
max. 4A,
max.
FWSE MODULE
3A 3A
1.5A
1.5A
SYSTEM
.10A
10A
5A
5A
NOTE: Current requirements may change with variation
of system c()nfiguration.
2.3. Performance·Specifications
Tables 2-2, 2-3, 2-4, and 2-5 define the performance charac-
teristics of the system, Winchester disk, SMD, and cartridge
tape drives.
