HRM
ENVIRONMENTAL
ENCLOSURE
Zilog
ROTARY ARM
SHIPPING LOCK
HRM
ROTARY VOICE COIL. BEARING
BLOCK. AND ROTARY
tlRM
(ACTUATOR ASSEMBLY)
ABSOLUTE
RECIRCULATION
FILTER
MAIN
DE:CK
00403
MAIN PWA
SPINDLEIDISK
ASSEMBLY
ENVIRONMENTAL
ENCLOSURE
GASKET
6·32 UNC
28
(OPTIONAL SYSTEM
GROUND POINT)
-
--
MOTOR CONTROL PWA
DATA CABLE
POWER CABLE
REAR
5.5.

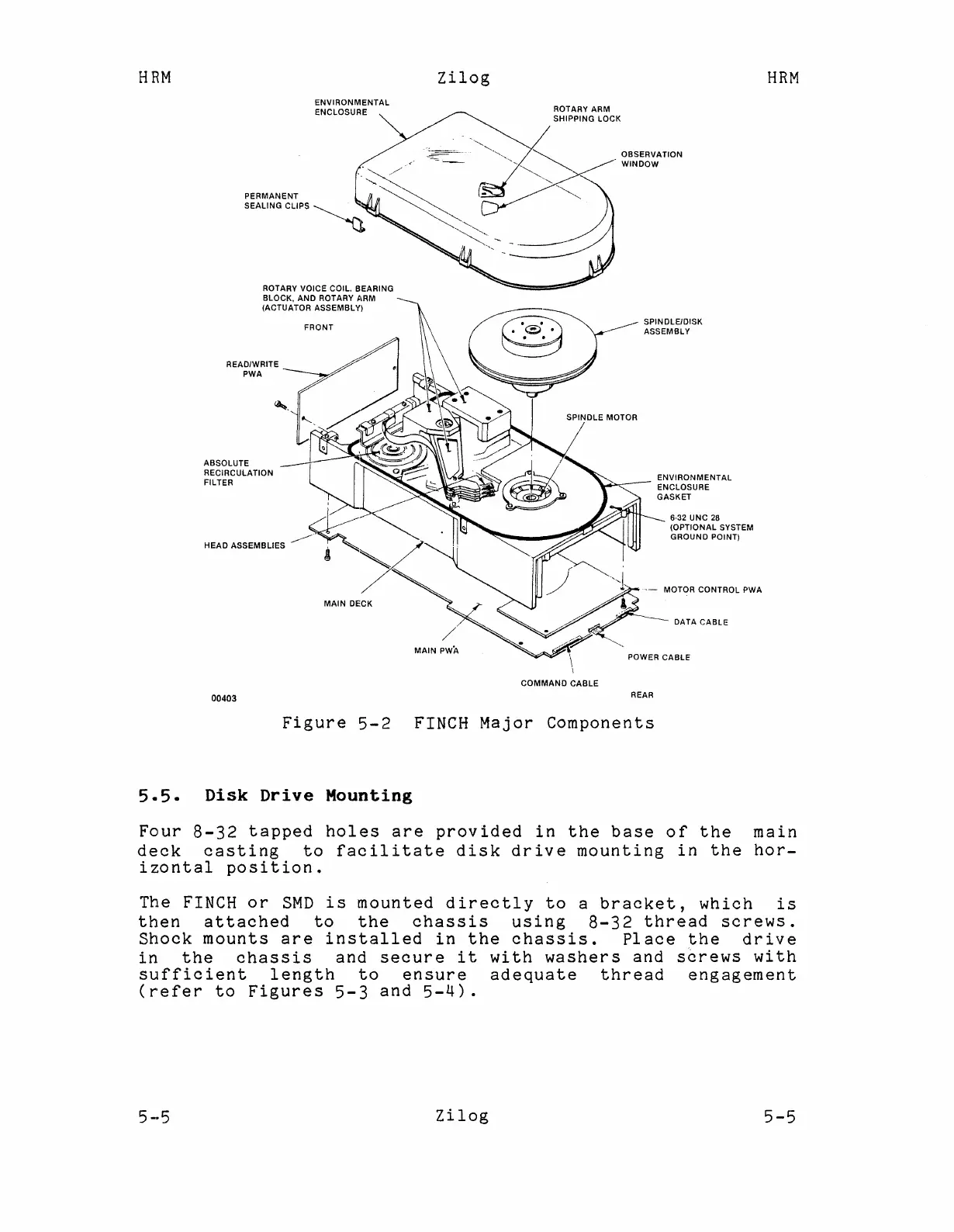

Figure
5-2
Disk
Drive
Mounting
FINCH
Major
Components
Four
8-32
tapped
holes
are
provided
in
the
base
of
the
main
deck
casting
to
facilitate
disk
drive
mounting
in
the
hor-
izontal
position.
The
FINCH
or
SMD
is
mounted
directly
to
a
bracket,
which
is
then
attached
to
the
chassis
using
8-32
thread
screws.
Shock
mounts
are
installed
in
the
chassis.
Place
the
drive
in
the
chassis
and
secure
it
with
washers
and
screws
with
sufficient
length
to
ensure
adequate
thread
engagement
(refer
to
Figures
5-3
and
5-4).
5-5
Zilog
5-5
