HRM
Zilog
SMD DRIVE
LOCKING LEVER
SHIP

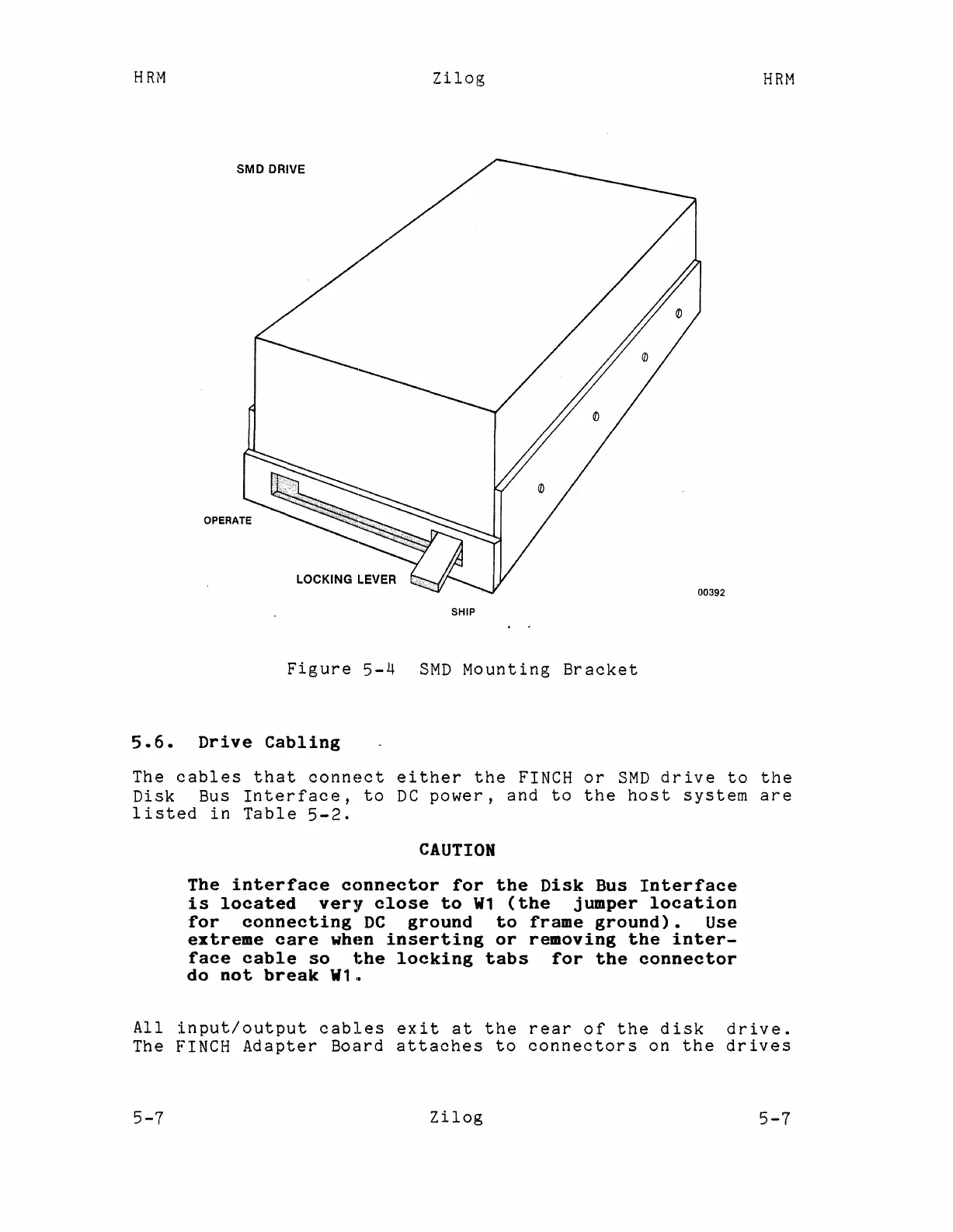

Figure
5-4
SMD
Mounting
Bracket
00392
HRM
5.6.
Drive
Cabling
The
cables
that
connect
either
the
FINCH
or
SMD
drive
to
the
Disk
Bus
Interface,
to
DC
power,
and
to
the
host
system
are
listed
in
Table
5-2.
CAUTION
The
interface
connector
for
the
Disk
Bus
Interface
is
located
very
close
to
W1
(the
jumper
location
for
connecting
DC
ground
to
frame
ground).
Use
extreme
care
wht!n
inserting
or
removing
the
inter-
face
cable
so
the
locking
tabs
for
the
connector
do
not
break
Wl
'.
All
input/output
cables
exit
at
the
rear
of
the
disk
drive.
The
FINCH
Adapter
Board
attaches
to
connectors
on
the
drives
5-7
Zilog
5-7
