HRM
lilog
HRM

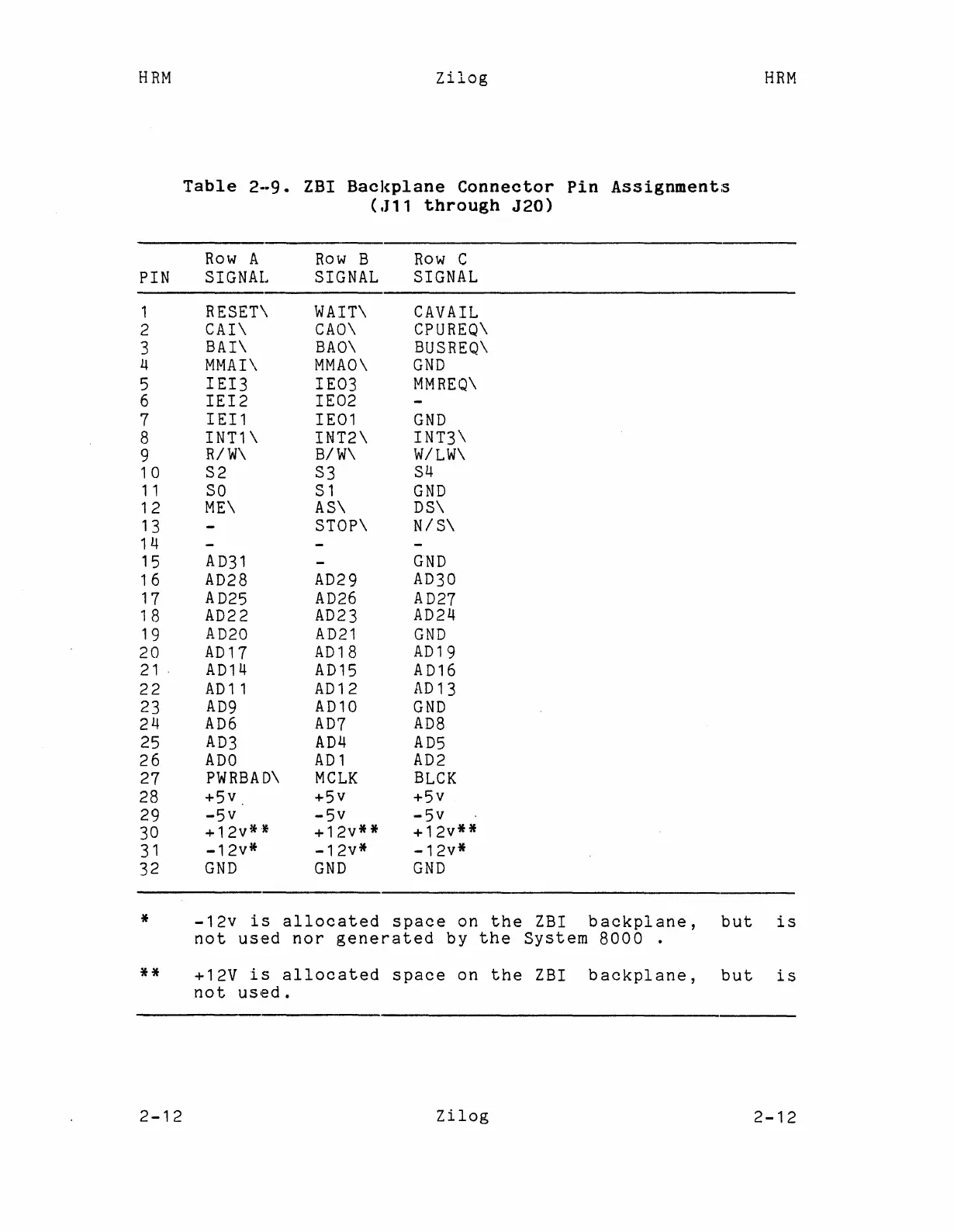

Table
2·
..
9.
ZBI
Backplane
Connector
Pin
Assignments
(J11
through
J20)
Row
A
Row
B
Row
C
PIN
SIGNAL SIGNAL
SIGNAL
1
RESET\
WAIT\
CAVAIL
2
CAI\
CAO\
CPUREQ\
3
BAI\
BAO\
BUSREQ\
4
MMAI\
MMAO\
GND
5
IEI3
IE03
MMREQ\
6
IEI2
IE02
7
IEI1
IE01
GND
8
INT1\ INT2\
INT3\
9
R/W\
B/W\
W/LW\
10
S2
S3
S4
11
SO
S1
GND
12
ME\
AS\
DS\
13
STOP\
N/S\
14
15
AD31
GND
16
AD28
AD29
AD30
17
AD25
AD26
AD27
18
AD22
AD23
AD24
19
AD20
AD21
GND
20
AD17
AD18
AD19
21
AD14
AD15 AD16
22
AD11
AD12
AD13
23
AD9
AD10
GND
24
AD6
AD7
AD8
25
AD3
AD4
AD5
26
ADO
AD1
AD2
27
PWRBAD\
MCLK
BLCK
28
+5v +5v
+5v
29
-5v
-5v
-5v
30
+12v*
'It
+12v**
+12v**
31
-12v*
-12v*
-12v*
32
GND
GND
GND
*
-12v
is
allocated
space
on
the
lBI
backplane,
but
is
not
used
nor
generated
by
the
System
8000
.
**
+12V
is
allocated
space
on
the
lBI
backplane,
but
is
not
used.
2-12
lilog
2-12
