HHM
Zilog
HRM

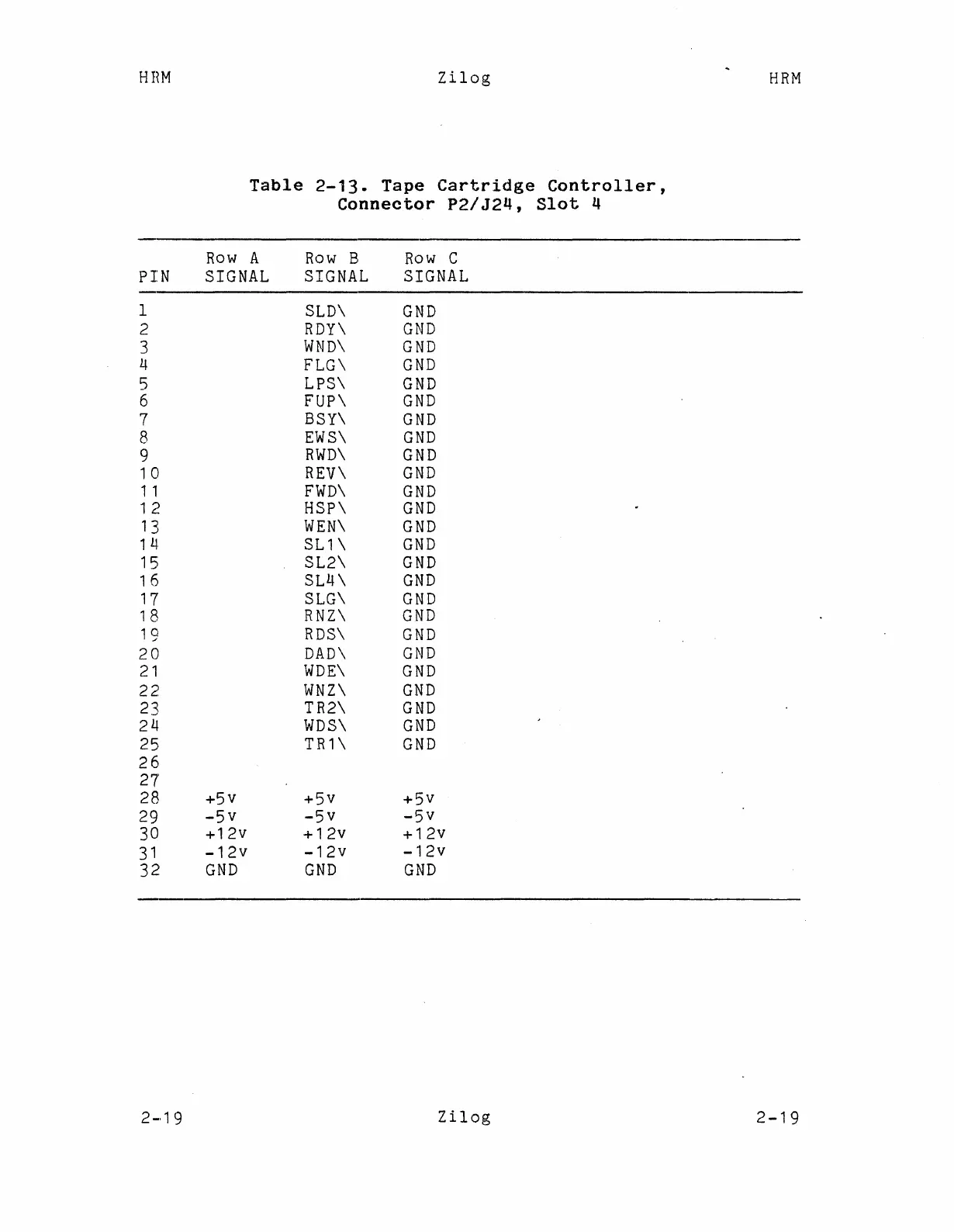

Table
2-13.
Tape
Cartridge
Controller,
Connector
P2/J24,
Slot
4
Row
A
Row
B
Row
C
PIN
SIGNAL
SIGNAL
SIGNAL
1
SLD\
GND
2
RDY\
GND
3
WND\
GND
4 FLG\
GND
5
LPS\
GND
6 FUP\
GND
7
BSY\
GND
8
EWS\
GND
9
RWD\
GND
10
REV\
GND
11
FWD\
GND
12
HSP\
GND
13
WEN\
GND
11.1ยท
SL1\
GND
15
SL2\
GND
16
SL4\
GND
17
SLG\
GND
18
RNZ\
GND
1a
RDS\
GND
./
20
DAD\
GND
21
WDE\
GND
22
WNZ\
GND
23
TR2\
GND
24
WDS\
GND
25
TR1\
GND
26
27
28
+5v +5v
+5v
29
-5v
-5v
-5v
30
+12v +12v +12v
31
-12v
-12v
-12v
32
GND
GND
GND
2-,19
Zilog
2-19
