HRM
Zilog

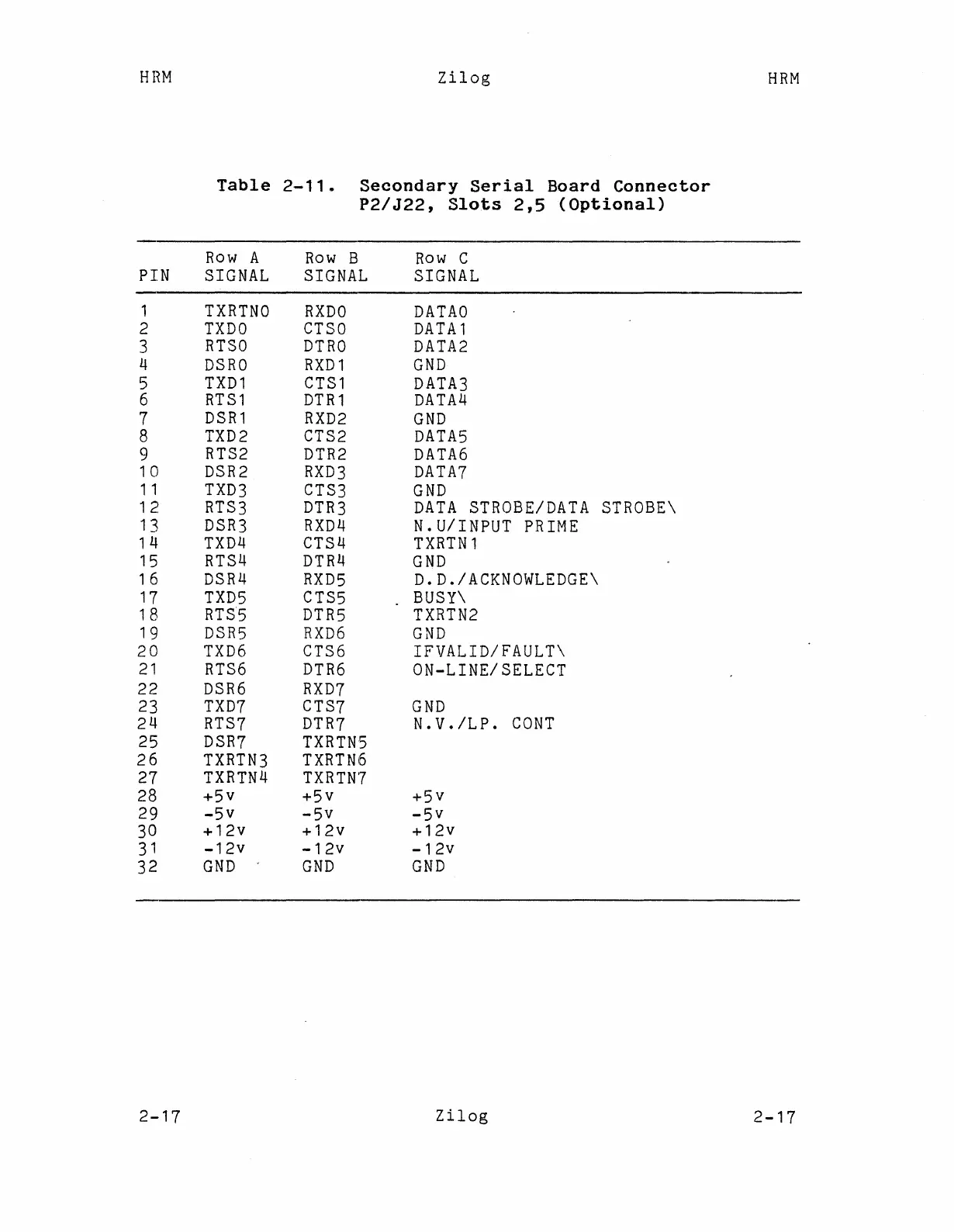

Table
2-11.
Secondary
Serial
Board
Connector
P2/J22,
Slots
2,5
(Optional)
HRM
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
2-17
Row
A
SIGNAL
TXRTNO
TXDO
RTSO
DSRO
TXD1
RTS1
DSR1
TXD2
RTS2
DSR2
TXD3
RTS3
DSR3
TXD4
RTS4
DSR4
TXD5
RTS"5
DSR5
TXD6
RTS6
DSR6
TXD7
RTS7
DSR7
TXRTN3
TXRTN4
+5v
-5v
+12v
-12v
GND
Row
B
SIGNAL
RXDO
CTSO
DTRO
RXD1
CTS1
DTR1
RXD2
CTS2
DTR2
RXD3
CTS3
DTR3
RXD4
CTS4
DTR4
RXD5
CTS5
DTR5
RXD6
CTS6
DTR6
RXD7
CTS7
DTR7
TXRTN5
TXRTN6
TXRTN7
+5v
-5v
+12v
-12v
GND
Row
C
SIGNAL
DATAO
DATA1
DATA2
GND
DATA3
DATA4
GND
DATA5
DATA6
DATA7
GND
DATA
STROBE/DATA
STROBE\
N.U/INPUT
PRIME
TXRTN1
GND
D.D./ACKNOWLEDGE\
BUSY\
TXRTN2
GND
IFVALID/FAULT\
ON-LINE/SELECT
GND
N.V./LP.
CaNT
+5v
-5v
+12v
-12v
GND
Zilog
2-17
