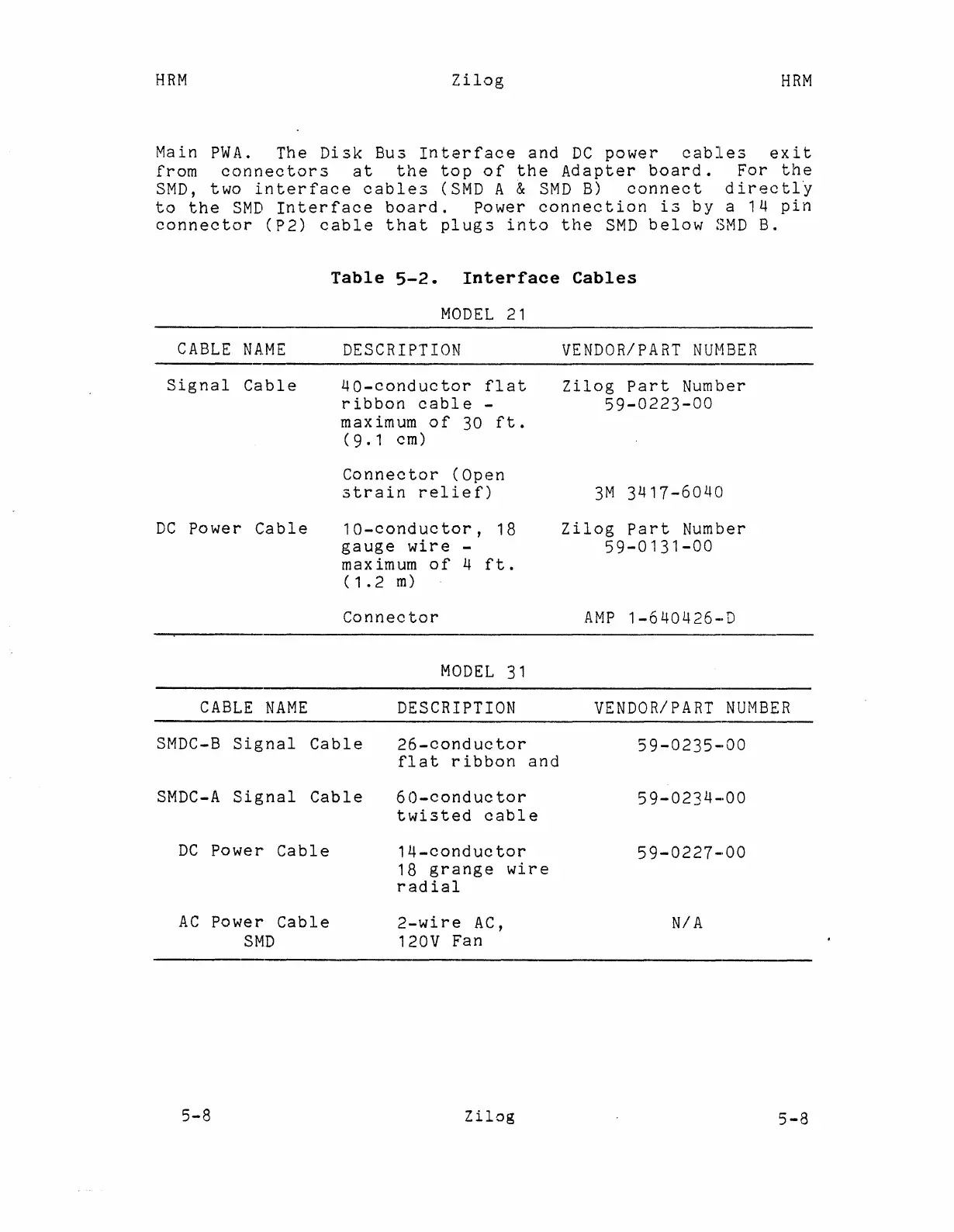

HRM
Zilog
HRM
Main
PWA.
The
Disk
Bus
Interface
and
DC
power
cables
exit
from
connectors
at
the
top
of
the
Adapter
board.
For
the
SMD,
two
interface
cables
(SMD
A &
SMD
B)
connect
directlj
to
the
SMD
Interface
board.
Power
connection
is
by
a 14
pin
connector
(P2)
cable
that
plugs
into
the
SMD
below
SMD
B.
Table
5-2.
Interface
Cables
MODEL
21
CABLE
NAME
Signal
Cable
DC
Power
Cable
CABLE
NAME
DESCRIPTION
40-conductor
flat
ribbon
cable
-
maximum
of
30
ft.
(9.1
ern)
Connector
(Open
strain
relief)
10-conductor,
18
gauge
wire
-
maximum
of
4
ft.
( 1
.2
m)
Connector
MODEL
31
DESCRIPTION
VENDOR/PART
NUMBER
Zilog
Part
Number
59-0223-00
3M
3417-6040
Zilog
Part
Number
59-0131-00
AMP
1-640426-·D
VENDOR/PART
NUMBER
SMDC-B
Signal
Cable
SMDC-A
Signal
Cable
DC
Power
Cable
AC
Power
Cable
SMD
5-8
26-conductor
flat
ribbon
and
60-conductor
twisted
cable
14-conductor
18
grange
wire
radial
2-wire
AC,
120V Fan
Zilog
59-0235-·00
59-0234-·00
59-0227
-·00
N/A
5-8
