HRM
Zilog

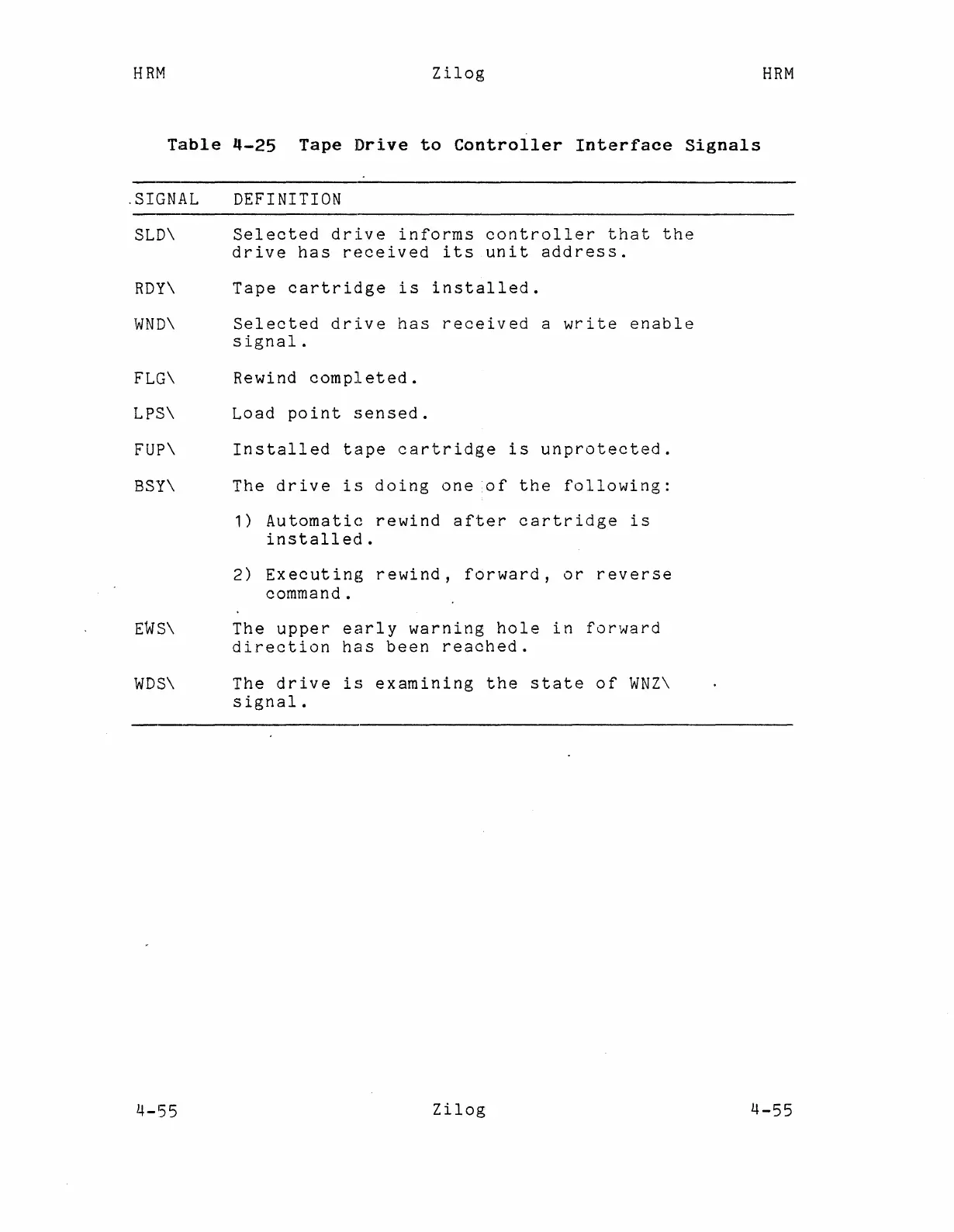

Table
~-25
Tape
Drive
to
Controller
Interface
Signals
HRM
.
SIGNAL
SLD\
RDY\
WND\
FLG\
LPS\
FUP\
BSY\
DEFINITION
Selected
drive
informs
controller
that
the
drive
has
received
its
unit
address.
Tape
cartridge
is
installed.
Selected
drive
has
received
a
write
enable
signal.
Rewind
completed.
Load
point
sensed.
Installed
tape
cartridge
is
unprotected.
The
drive
is
doing
one
of
the
following:
1)
Automatic
rewind
after
cartridge
is
installed.
2)
Executing
rewind,
forward,
or
reverse
command.
EWS\
The
upper
early
warning
hole
in
forward
direction
has
been
reached.
WDS\
The
drive
is
examining
the
state
of
WNZ\
signal.
4-55
Zilog
4-55
