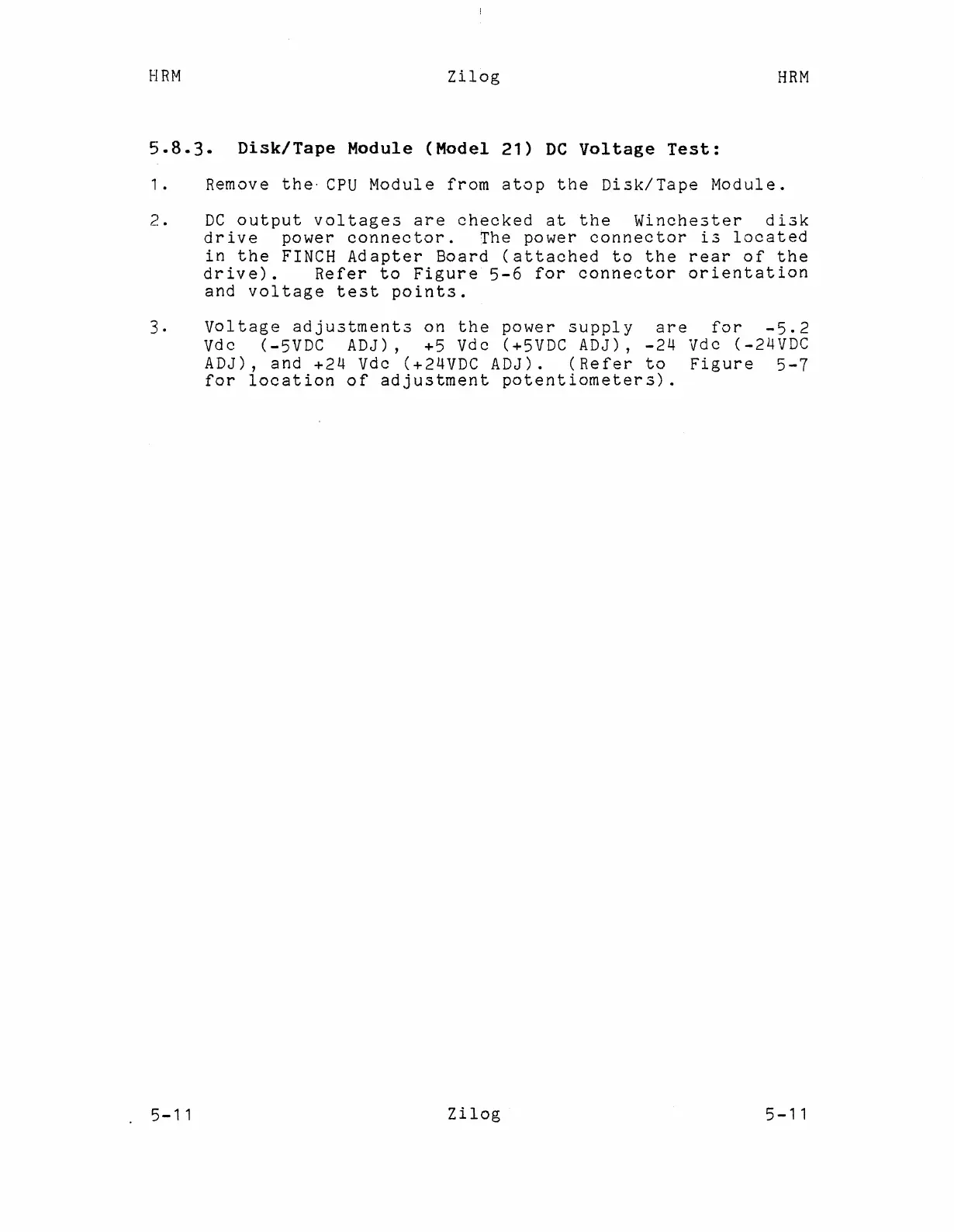

HRM
Zilog
HRM
5.8.3.
Disk/Tape
Module
(Model
21)
DC
Voltage
Test:
1.
Remove
the·
CPU
Module
from
atop
the
Disk/Tape
Module.
2.
DC
output
voltages
are
checked
at
the
Winchester
disk
drive
power
connector.
The
power
connector
is
located
in
the
FINCH
Adapter
Board
(attached
to
the
rear
of
the
drive).
Refer
to
Figure
5-6
for
connector
orientation
and
voltage
test
points.
3.
Voltage
adjustments
on
the
power
supply
are
for
-5.2
Vde (-5VDC
ADJ),
+5
Vde (+5VDC
ADJ),
-24
Vde (-24VDC
ADJ),
and
+24 Vde (+24VDC
ADJ).
(Refer
to
Figure
5-7
for
location
of
adjustment
potentiometers).
5-11
Zilog
5
-11
