HRM
Zilog
HRM
adjustment for the -24Vdc (-24V ADJ.) can be checked at
the power connector labelled 'J2' on the power supply,
(see Figure 5-8 for connector location).
+5VDC ADJ.
~
~m
o
000 J3
000
-12VDC ADJ.
~
-5 VDC ADJ.
~
-24VDC ADJ.
~
+ 24VDC AD.J.
J21~ggl ~

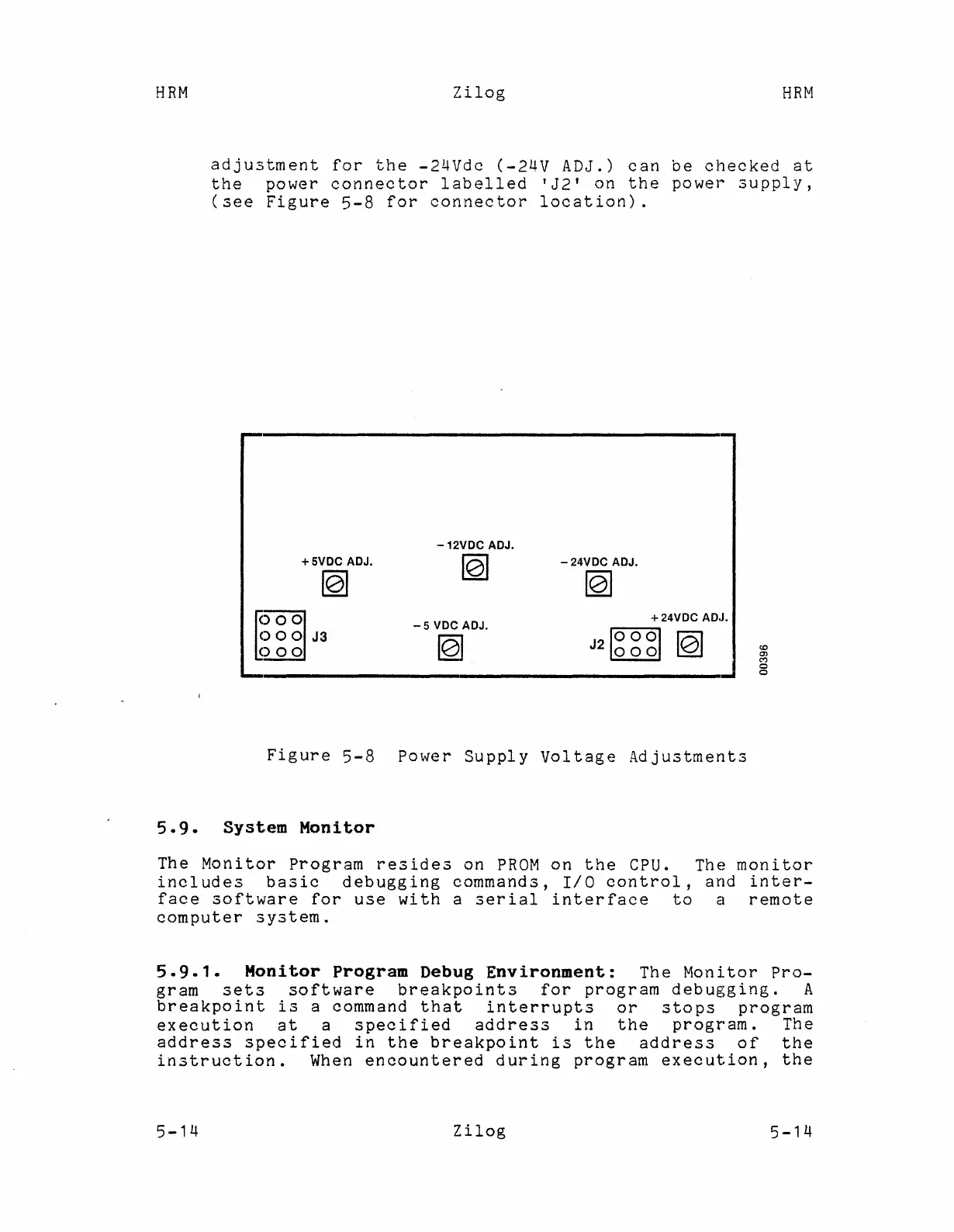

Figure 5-8 Power Supply Voltage Adjustments
5.9. System Monitor
The Monitor Program resides on PROM on the CPU. The monitor
includes basic debugging commands, I/O control, and inter-
face software for use with a serial interface to a remote
computer system.
5.9.1. Monitor Program Debug Environment: The Moni.tor Pro-
gram sets software breakpoints for program debugging. A
breakpoint is a command that interrupts or stops program
execution at a specified address in the program. The
address specified in the breakpoint is the address of the
instruction. When encountered during program execution, the
5-14
Zilog
5-14
