3.1. Introduction
Zilog

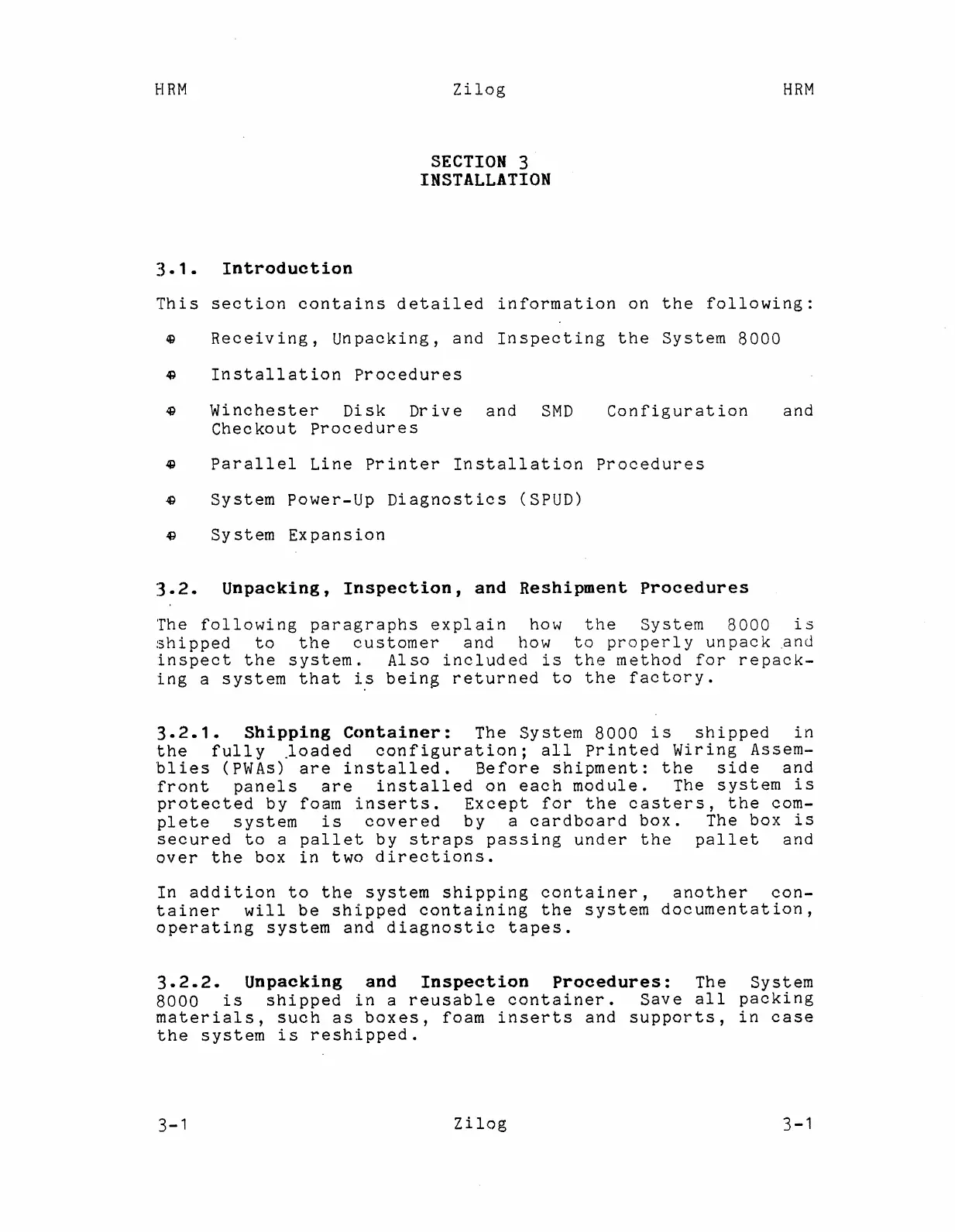

SECTION 3
INSTALLATION
HRM
This section contains detailed information on the following:
~ Receiving, unpacking, and Inspecting the System 8000
~ Installation Procedures
Winchester Disk Drive and SMD
Checkout Procedures
Configuration
and
~ Parallel Line Printer Installation Procedures
~ System power-Up Diagnostics (SPUD)
~ System Expansion
3.2. Unpacking, Inspection, and Reshipment Procedures
The following paragraphs explain how the System 8000 is
shipped to the customer and how to properly unpack ,and
inspect the system. Also included is the method for repack-
ing a system that i~ being returned to the factory.
3.2.1. Shipping Container: The System 8000 is shipped in
the fully .loaded configuration; all Printed Wiring Assem-
blies (PWAs) are installed. Before shipment: the side and
front panels are installed on each module. The system is
protected by foam inserts. Except for the casters, the com-
plete system is covered by a cardboard box. The box is
secured to a pallet by straps passing under the pallet and
over the box in two directions.
In addition to the system shipping container, another con-
tainer will be shipped containing the system documentation,
operating system and diagnostic tapes.
3.2.2. Unpacking and Inspection Procedures: The System
8000 is shipped in a reusable container. Save all packing
materials, such as boxes, foam inserts and supports, in case
the system is reshipped.
3-1
