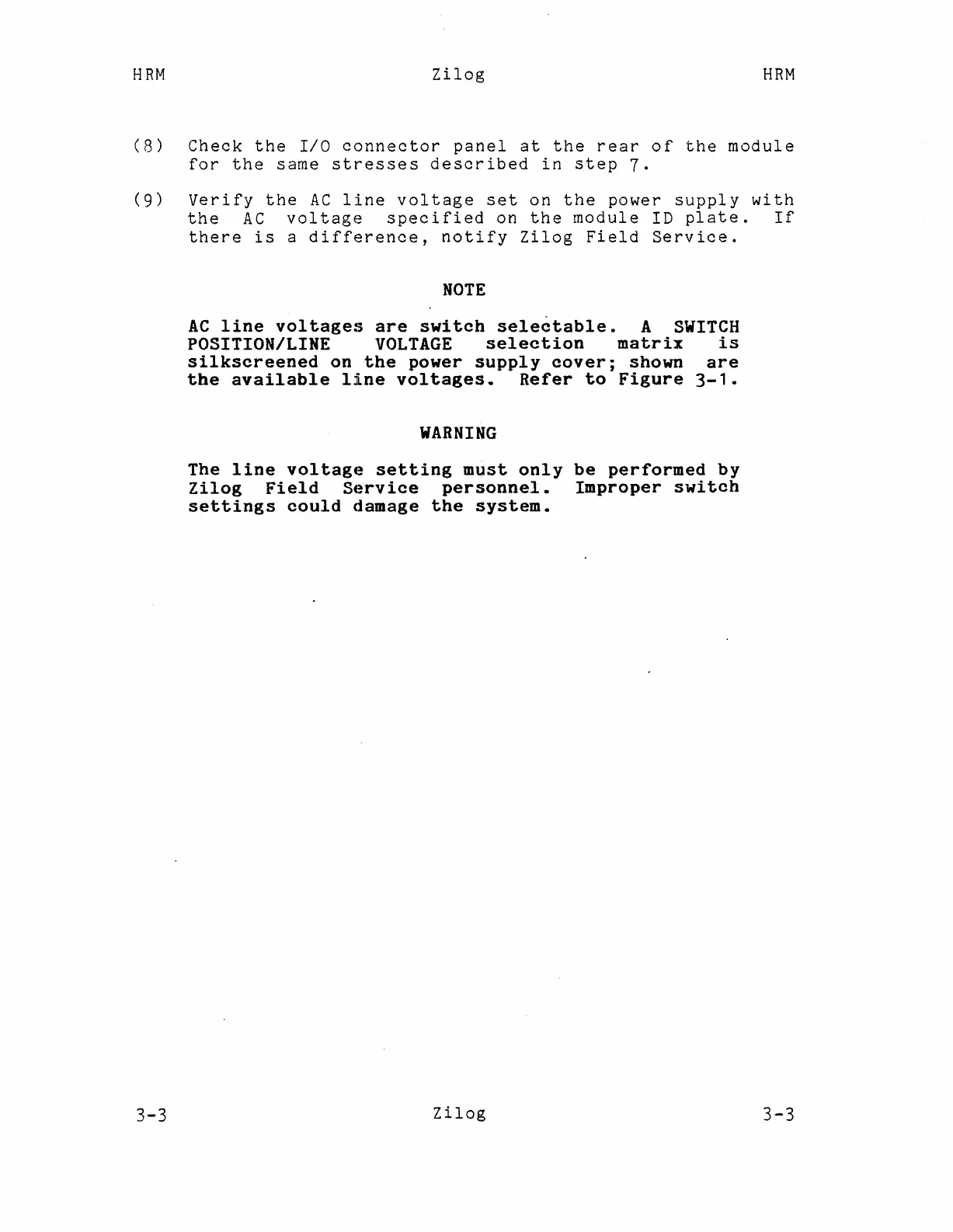

HRM
Zilog
HRM
(8)
Check
the
I/O
connector
panel
at
the
rear
of
the
module
for
the
same
stresses
described
in
step
7.
(9)
Verify
the
AC
line
voltage
set
on
the
power
supply
with
the
AC
voltage
specified
on
the
module
ID
plate.
If
there
is
a
difference,
notify
Zilog
Field
Service.
NOTE
AC
line
voltages
are
switch
selectable.
A
SWITCH
POSITION/LINE
VOLTAGE
selection
matrix
is
silkscreened
on
the
power
supply
cover;
shown
are
the
available
line
voltages.
Refer
to
Figure
3-1.
WARNING
The
line
voltage
setting
must
only
be
performed
by
Zilog
Field
Service
personnel.
Improper
switch
settings
could
damage
the
system.
3-3
Zilog
3-3
