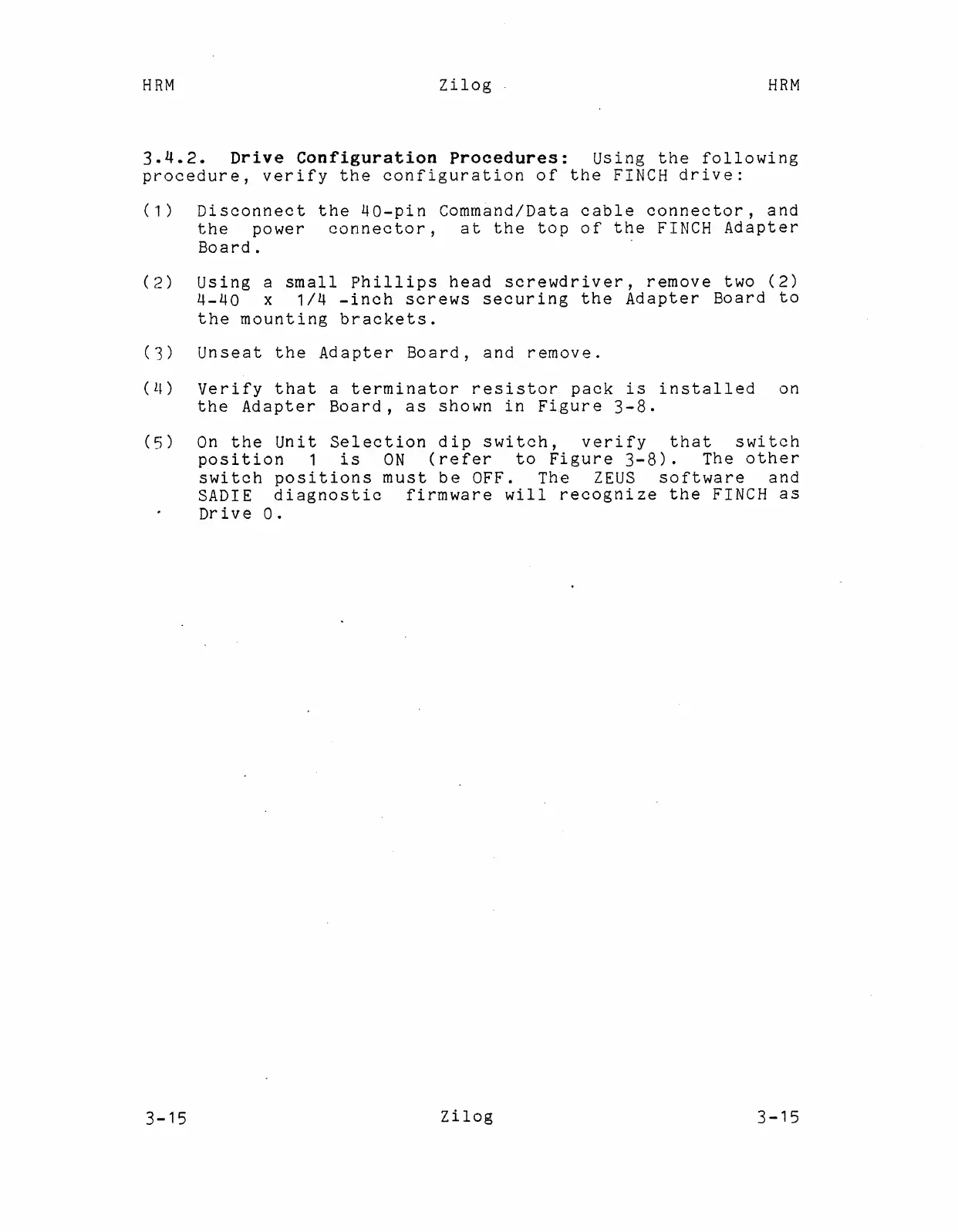

3.4.2. Drive Configuration Procedures: Using the following
procedure, verify the configuration of the FINCH drive:
('1) Disconnect the 40-pin Command/Data cable connector, and
the power connector, at the top of the FINCH Adapter
Board.
(2) Using a small Phillips head screwdriver, remove two (2)
4-40 x 1/4 -inch screws securing the Adapter Board to
the mounting brackets.
(3) Unseat the Adapter Board, and remove.
(4) Verify that a terminator resistor pack is installed on
the Adapter Board, as shown in Figure 3-8.
(5) On the Unit Selection dip switch, verify that switch
position 1 is ON (refer to Figure 3-8). The other
switch positions must be OFF. The ZEUS software and
SADIE diagnostic firmware will recognize the FINCH as
Dr i ve O.
