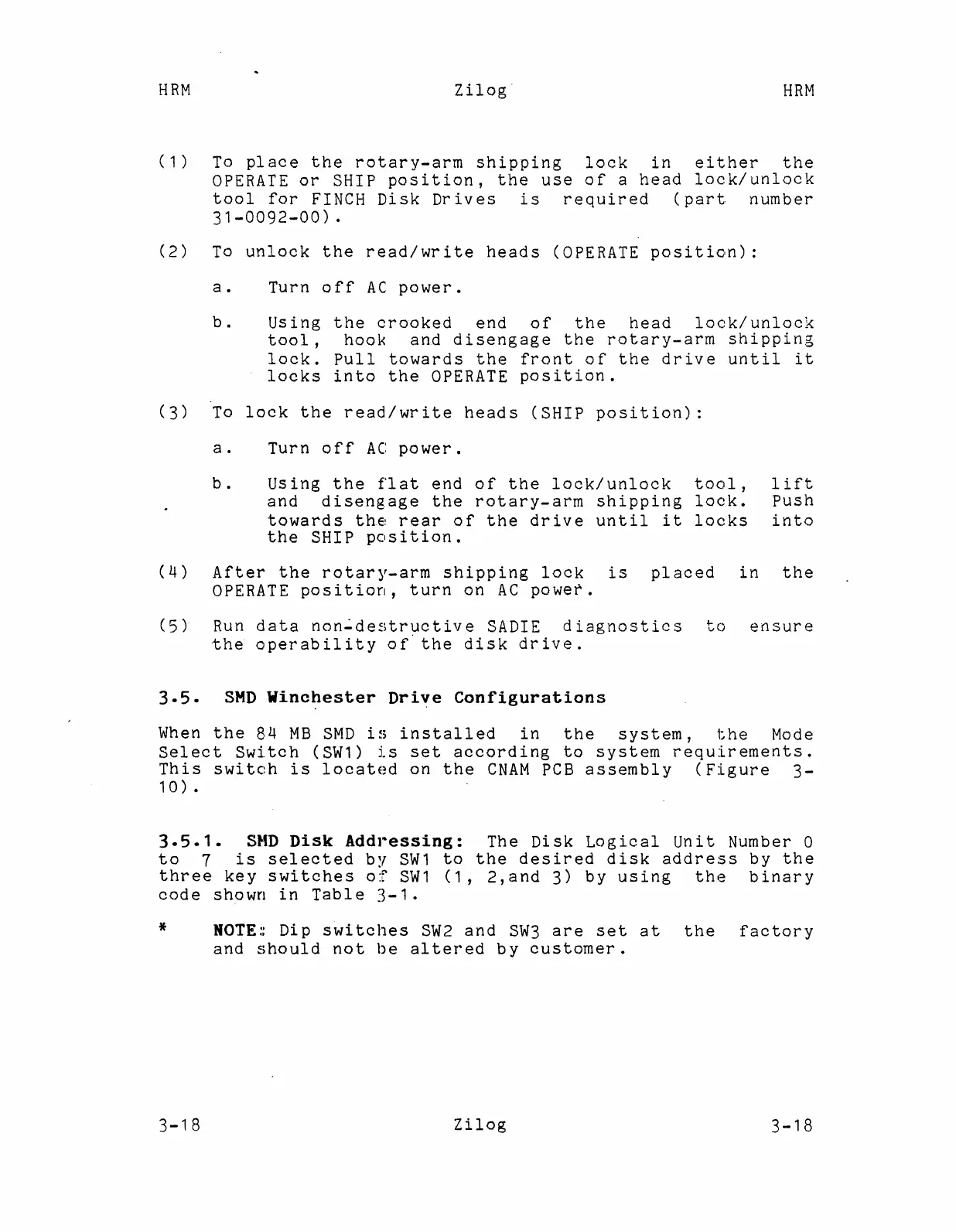

(1) To place the rotary-arm shipping lock in either the
OPERATE or SHIP position, the use of a head lock/unlock
tool for FINCH Disk Drives is required (part number
31-0092-00) .
(2) To unlock the read/write heads (OPERATE position):
a. Turn off AC power.
b. Using the crooked end of the head lock/unlock
tool, hook anrl disengage the rotary-arm shipping
lock. Pull towards the front of the drive until it
locks into the OPERATE position.
(3) To lock the read/write heads (SHIP position):
a. Turn off AC power.
b • Using the flat end of the lock/unlock tool,
and disengage the rotary-arm shipping lock.
towards thE~ rear of the drive until it locks
the SHIP position.
lift
Push
into
(4) After the rotary-arm shipping lock is placed in the
OPERATE position, turn on AC powet.
(5) Run data non~destructive SADIE diagnostics to ensure
the operability of" the disk drive.
3.5. SMD Winchester Dri~e Configurations
When the 84 MB SMD i~) installed in the system, the Mode
Select Switch (SW1) is set according to system requirements.
This switch is located on the CNAM PCB assembly (Figure 3-
10) •
3.5.1. SHD Disk Addressing: The Disk Logical Unit Number 0
to 7 is selected by SW1 to the desired disk address by the
three key switches of SW1 (1, 2,and 3) by using the binary
code shown in Table 3-1.
*
HOTE: Dip switches SW2 and SW3 are set at the factory
and should not be altered by customer.
3-18
Zilog
3-18
