ZiLOG System 8000 Hardware Reference Manual

HRM
Zilog
HRM
2. To lock the read/write heads (SHIP position):
a. Turn off AC power.
b. Position actuator lever until it locks heads in
SHIP position.
SMD DRIVE
LOCIKING LEVER
00392
SHIP'

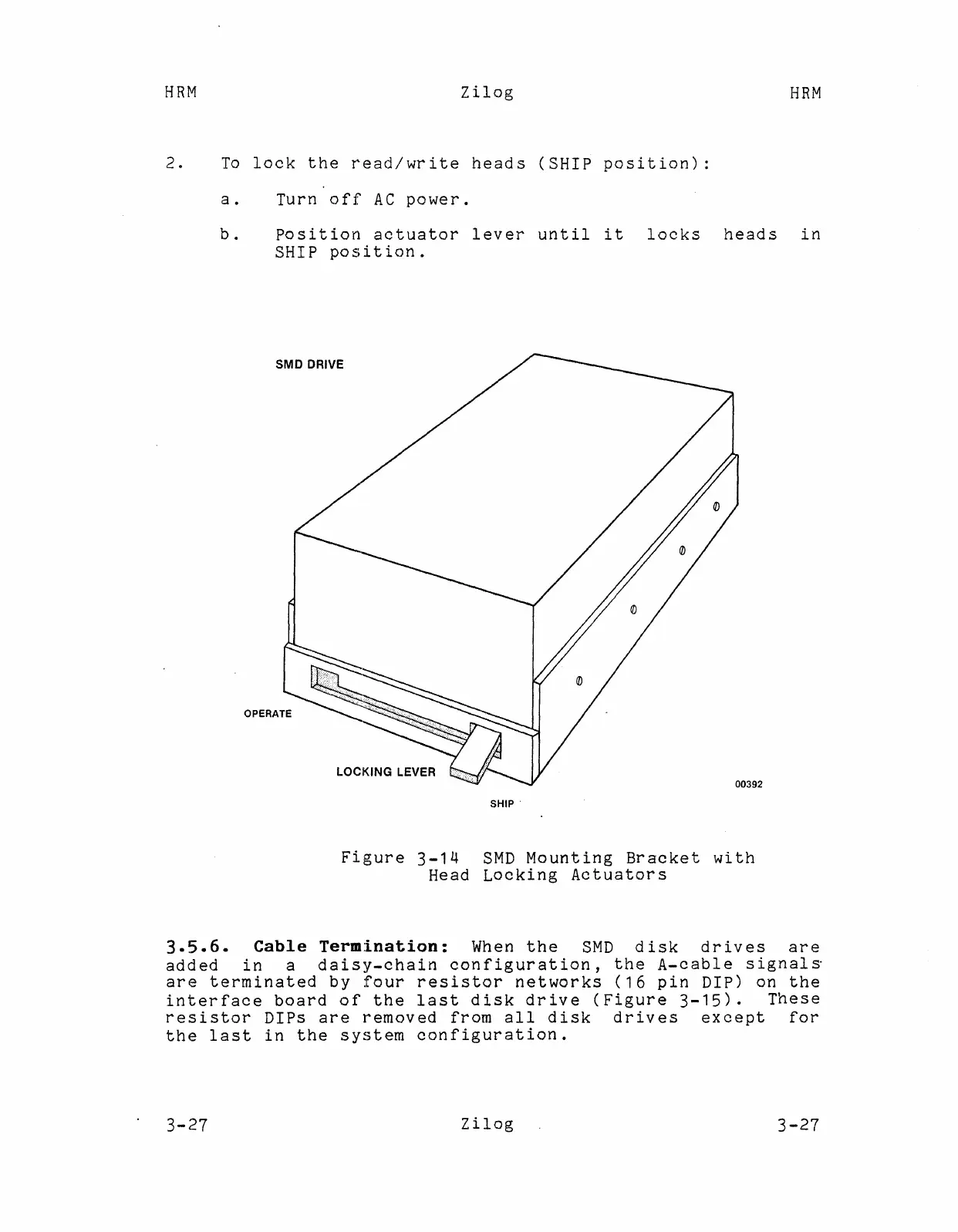

Figure 3-14 SMD Mounting Bracket with
Head Locking Actuators
3.5.6. Cable Termination: When the SMD disk drives are
added in a daisy-chain configuration, the A-cable signals
are terminated by four resistor networks (16 pin DIP) on the
interface board of the last disk drive (Figure 3-15). These
resistor DIPs are removed from all disk drives except for
the last in the system configuration.
3-27
Zilog
3-27
