12. Run non-destructive SADIE diagnostics SMDCRC command on
SADIE tape.
The addition of SMD disk drives to an existing system
requires that each new drive be configured to allow access
by the ZEUS software. Refer to the "Adding Additional
Disks" procedures in the ZEUS System Administrator Manual
(03-3246).

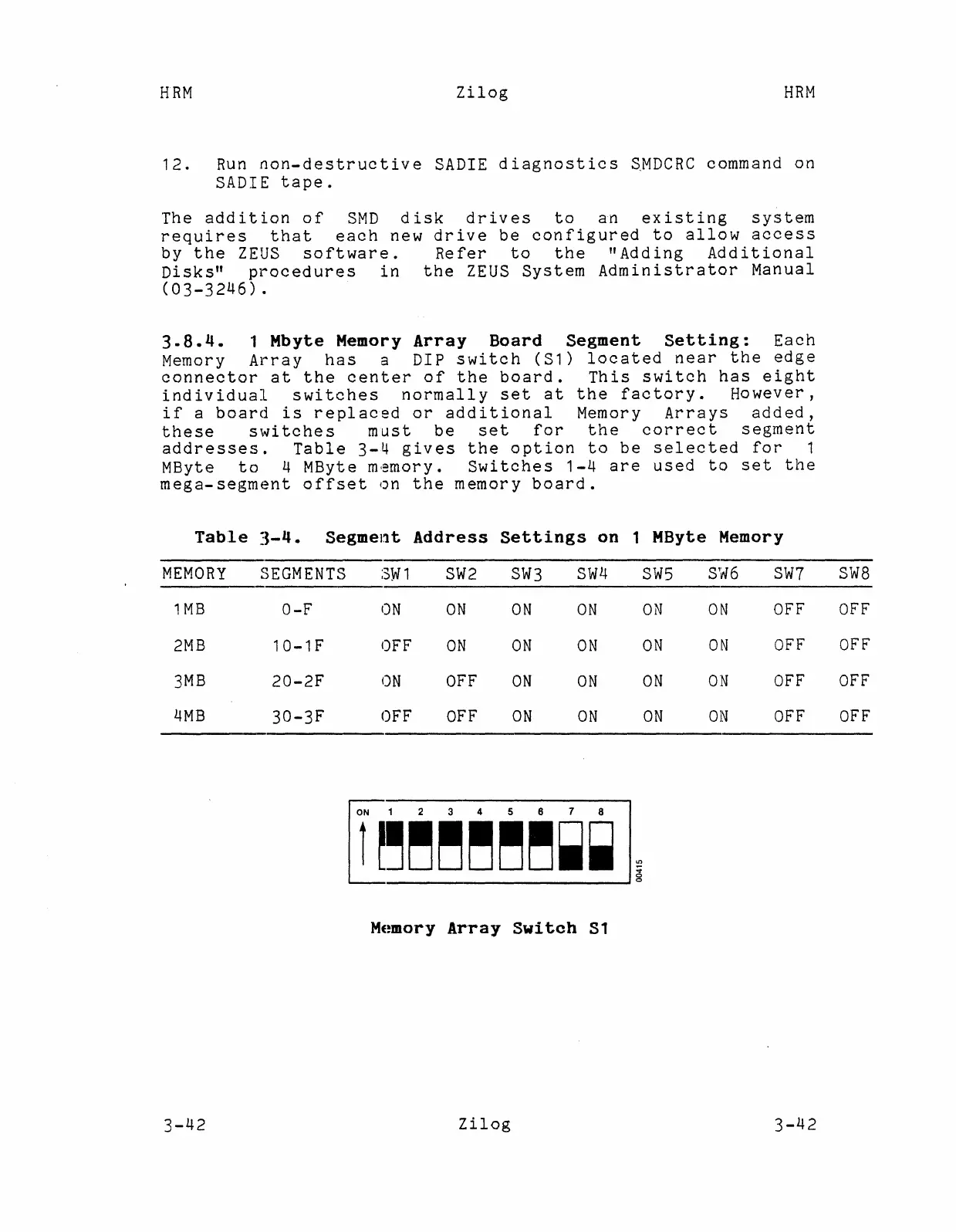

3.8.4. 1 Mbyte Memory Array Board Segment Setting: Each
Memory Array has a DIP switch (S1) located near the edge
connector at the center of the board. This switch has eight
individual switches normally set at the factory. However,
if a board is replaced or additional Memory Arrays added,
these switches must be set for the correct segment
addresses. Table 3-4 gives the option to be selected for 1
MByte
to 4 MByte memory. Switches 1-4 are used to set the
mega-segment offset on the memory board.
Table
3-4.
SegmeJ1t Address Settings on
1
MByteMemory
MEMORY
SEGMENTS
3W1
SW2
SW3
SW4
SW5
S'W6
SW7
SW8
1MB
O-F
ON ON ON ON ON ON
OFF
OFF
2MB
10-1F
OFF ON ON ON
ON
ON
OFF
OFF
3MB
20-2F
ON
OFF
ON ON ON
ON
OFF OFF
4MB
30-3F
OFF OFF ON
ON
ON
ON OFF OFF
ME~mory Array Switch S1
3-42
Zilog
3-42
