SpeedFace M4 User Manual
Page | 72 Copyright©2021ZKTECO CO., LTD. All rights reserved.
13 Connect to ZKBioAccess IVS Software
13.1 Set the Communication Address
Device side

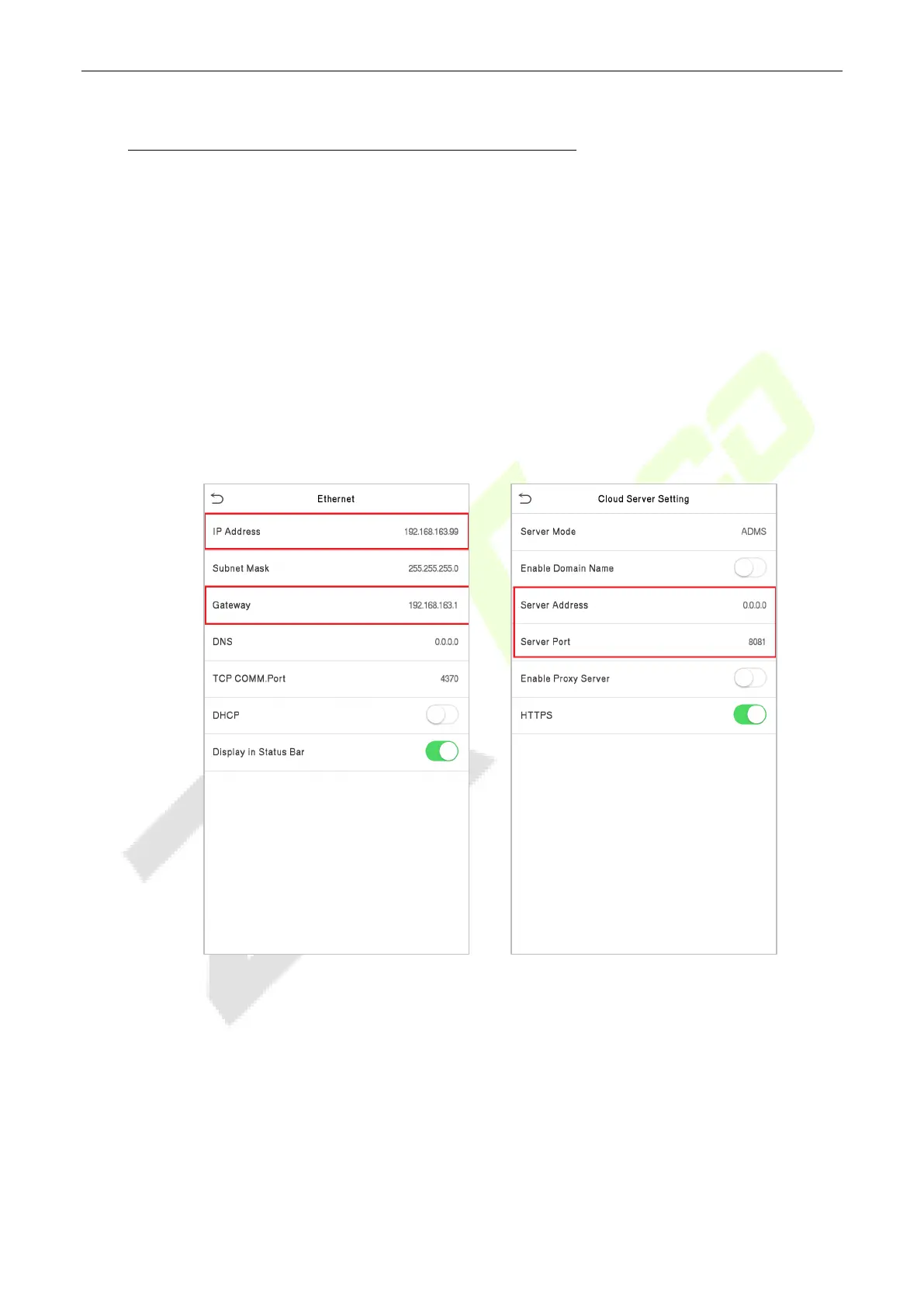

1. Click COMM. > Ethernet in the main menu to set the IP address and gateway of the device.
(Note: The IP address should be able to communicate with the ZKBioAccess IVS server, preferably
in the same network segment with the server address)
2. In the main menu, click COMM. > Cloud Server Setting to set the server address and server port.
Server address: Set the IP address as of ZKBioAccess IVS server.
Server port: Set the server port as of ZKBioAccess IVS(The default is 8088).
Software side
Login to ZKBioAccess IVS software, click System > Communication > Communication Monitor to set the
ADMS service port, as shown in the figure below:
To Next Page
