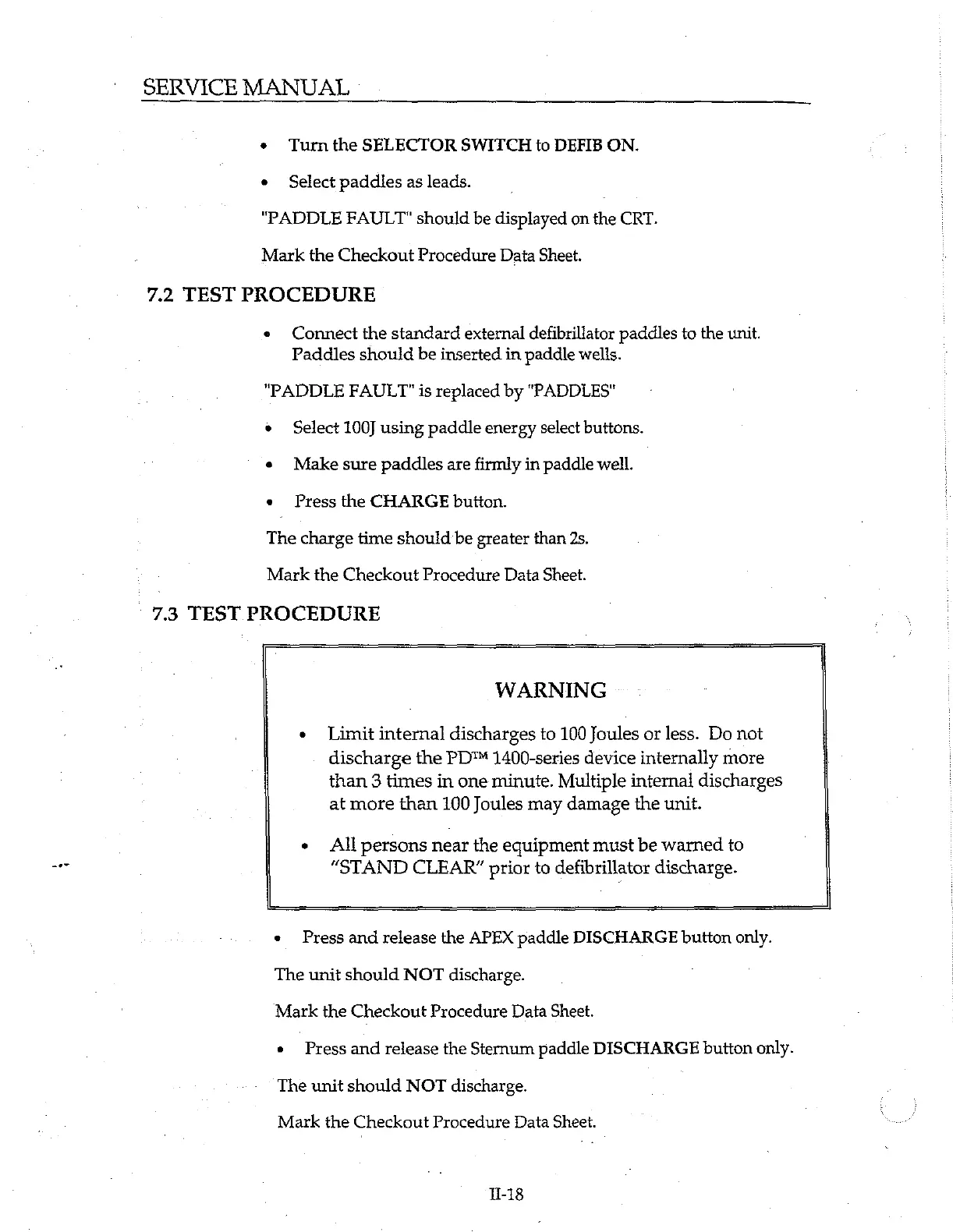

SERVICE MANUAL
+ Turn the SELECTOR SWITCH to DEFIB ON.
e Select paddles as leads. ,
“PADDLE FAULT" should be displayed on the CRT.
Mark the Checkout Procedure Data Sheet.
7.2 TEST PROCEDURE
e Connect the standard external defibrillator paddles to the unit.
Paddles should be inserted in paddle wells.
"PADDLE FAULT" is replaced by "PADDLES"
+ Select 100J using paddle energy select buttons.
+ Make sure paddles are firmly in paddle well.
e Press the CHARGE button.
The charge time should be greater than 2s.
Mark the Checkout Procedure Data Sheet.
7.3 TEST PROCEDURE
WARNING
* Limit internal discharges to 100 Joules or less. Do not
discharge the PD™ 1400-series device internally more
than 3 times in one minute. Multiple internal discharges
at more than 100 Joules may damage the unit.
» All persons near the equipment must be warned to
“STAND CLEAR’ prior to defibrillator discharge.
e Press and release the APEX paddle DISCHARGE button only.
The unit should NOT discharge.
Mark the Checkout Procedure Data Sheet.
o Press and release the Sternum paddle DISCHARGE button only.
The unit should NOT discharge.
Mark the Checkout Procedure Data Sheet.
1-18
