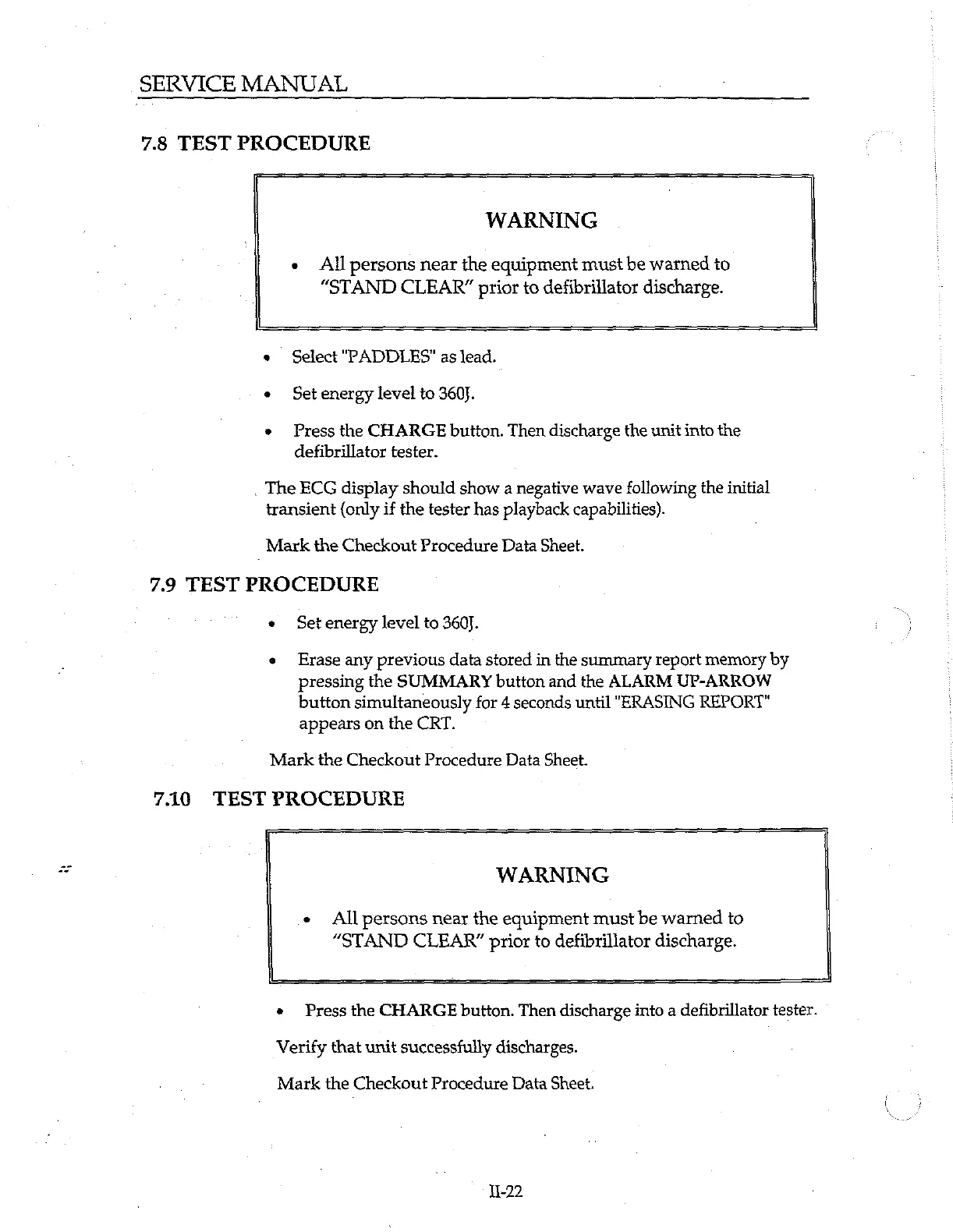

SERVICE MANUAL
7.8 TEST PROCEDURE
WARNING
« All persons near the equipment must be warned to
“STAND CLEAR” prior to defibrillator discharge.
‧ Select "PADDLES" as lead.
e Set energy level to 360J.
» Press the CHARGE button. Then discharge the unit into the
defibrillator tester.
. The ECG display should show a negative wave following the initial
transient (only if the tester has playback capabilities).
| Mark the Checkout Procedure Data Sheet.
7.9 TEST PROCEDURE
+ Set energy level to 360].
e Erase any previous data stored in the summary report memory by
pressing the SUMMARY button and the ALARM UP-ARROW
button simultaneously for 4 seconds until "ERASING REPORT"
appears on the CRT.
Mark the Checkout Procedure Data Sheet.
710 TEST PROCEDURE
WARNING
e All persons near the equipment must be warned to
“STAND CLEAR” prior to defibrillator discharge.
» Press the CHARGE button. Then discharge into a defibrillator tester.
Verify that unit successfully discharges.
Mark the Checkout Procedure Data Sheet.
1-22
