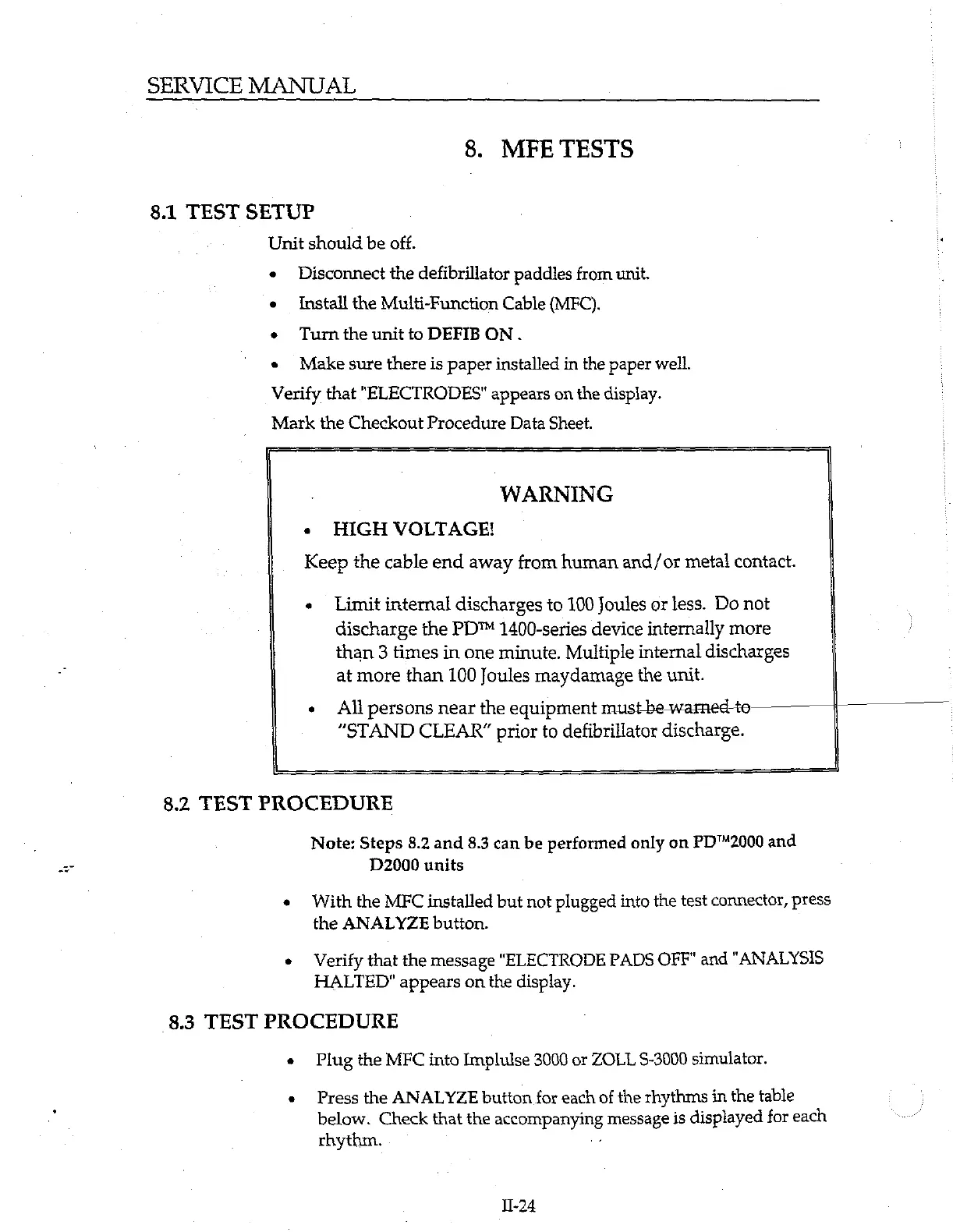

ZOLL PD 2000 - MFE Tests

SERVICE MANUAL
8. MFE TESTS
8.1 TEST SETUP
Unit should be off.
e
Disconnect the defibrillator paddles from unit.
Install the Multi-Function Cable (MFC),
Turn the unit to DEFIB ON .
Make sure there is paper installed in the paper well.
Verify that "ELECTRODES" appears on the display.
Mark the Checkout Procedure Data Sheet.
WARNING
« HIGH VOLTAGE!
Keep the cable end away from human and/or metal contact.
« Limit internal discharges to 100 Joules or less. Do not
discharge the PD™ 1400-series device internally more
than 3 times in one minute. Multiple internal discharges
at more than 100 Joules maydamage the unit.
» All persons near the equipment must be Warned to
“STAND CLEAR’ prior to defibrillator discharge.
8.2 TEST PROCEDURE
Note: Steps 8.2 and 8.3 can be performed only on PD™2000 and
D2000 units
With the MFC installed but not plugged into the test connector, press
the ANALYZE button.
Verify that the message “ELECTRODE PADS OFF" and "ANALYSIS
HALTED" appears on the display.
‚8.3 TEST PROCEDURE
Plug the MEC into Implulse 3000 or ZOLL S-3000 simulator.
Press the ANALYZE button for each of the rhythms in the table
below.
Check
that
the
accompanying
message
is
displayed
for
each
rhythm.
>
11~24
